SM-DUE Indicators
An SM-DUE is located on the control panel in each secondary power/distribution bay and secondary power
only bay. Refer to Figure 8 for SM-DUE location. There are two (2) status and alarm indicators located on the
SM-DUE. Refer to Figure 17 for location. The functions of these indicators are as shown in Table 4.
Table 4: SM-DUE Indicators
Indicator Normal State Fault State Description
Operation
(Green)
Flashing -- Unit is operating normally.
-- Off Unit is non-operational.

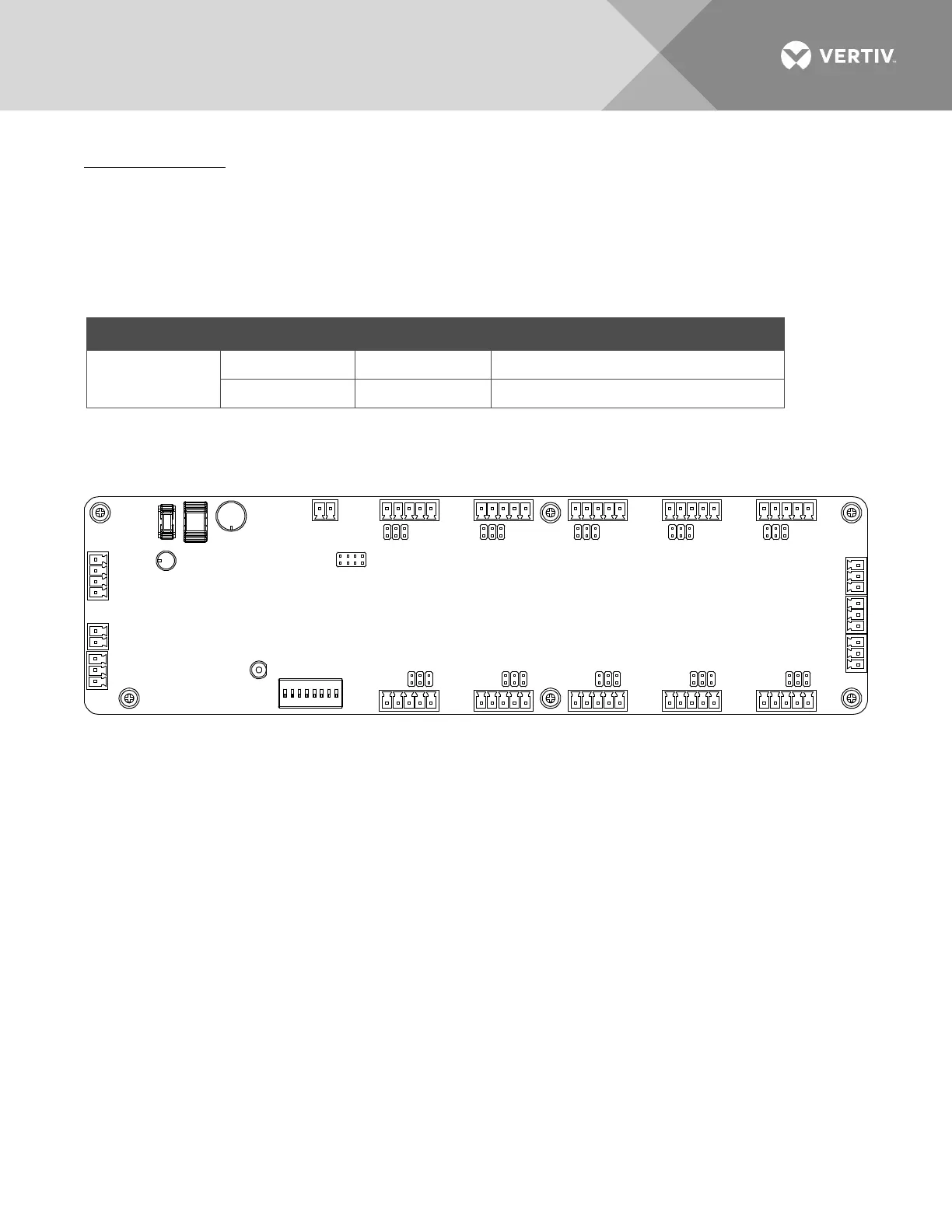

Figure 17: SM-DUE Indicator Locations
ON
OFF
1 8
SW1
Green LED
