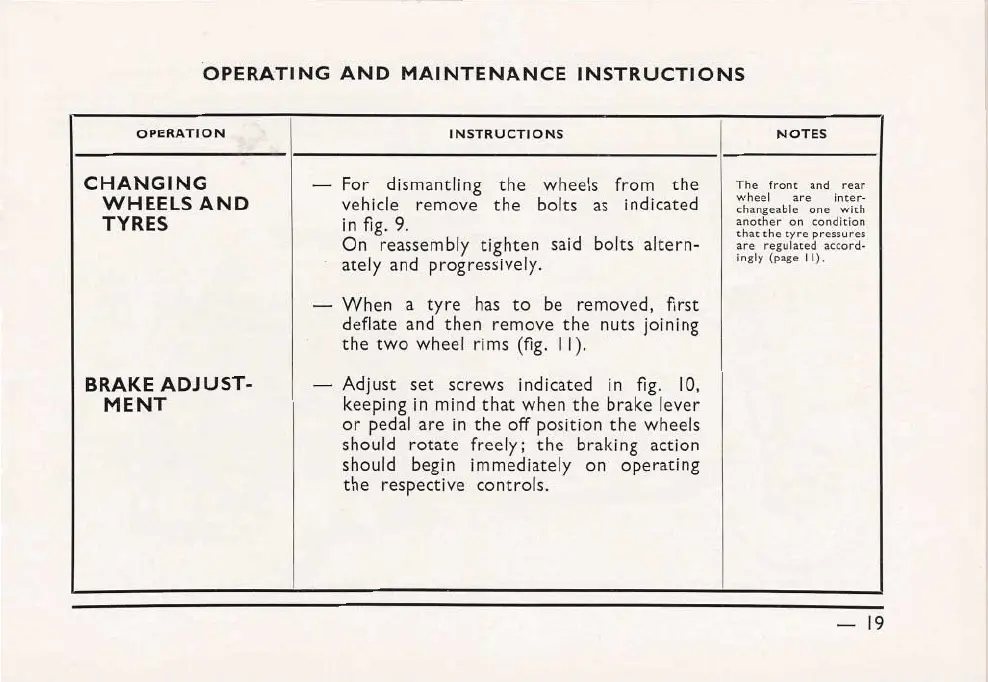

OPERATING AND MAINTENANCE INSTRUCTIONS
OPERATION
CHANGING
WHEELS AND
TYRES
BRAKE ADJUST-
MENT
INSTRUCTIONS
- For dismantling the wheels from the
vehicle remove the bolts as indicated
in fig. 9.
On reassembly tighten said bolts altern-
ately and progressively.
- When a tyre has to be removed, first
deflate and then remove the nuts joining
the two wheel rims (fig. 11).
- Adjust set screws indicated in fig. 10,
keeping in mind that when the brake lever
or pedal are in the off position the wheels
should rotate freely; the braking action
should begin immediately on operating
the respective controls.
NOTES
The front and rear
wheel are inter-
changeable one with
another on condition
that the tyre pressures
are regulated accord..
ingly (page 11).
- 19
