MAINTENANCE
Setting the head lamp. The correct orienta- Check that both front and rear tyres are
tion of the main beam can be obtained both inflated to correct pressures. See Chart, page
horizontally and vertically as follows. 11.
- - --
- - -
The horizontal distance equivalent is 16' 6. and the vertical equivalent is 2' 10"'-2' 11.

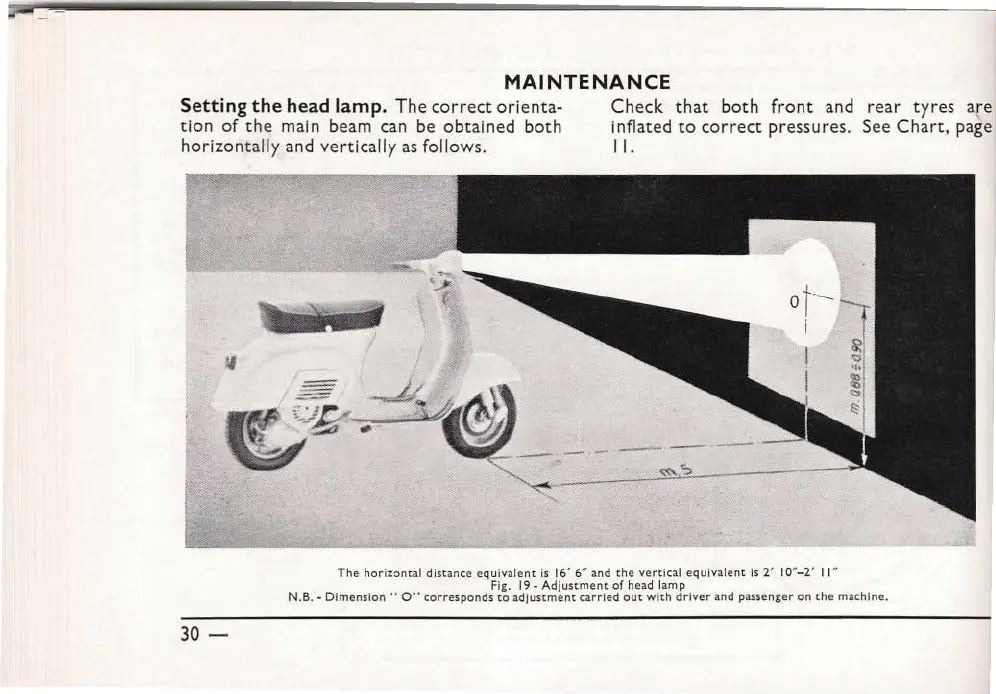

Fig. 19 - Adjustment of head lamp
N.B... Dimension110" corresponds to adjustment carried out with driver and passenger on the machine.
