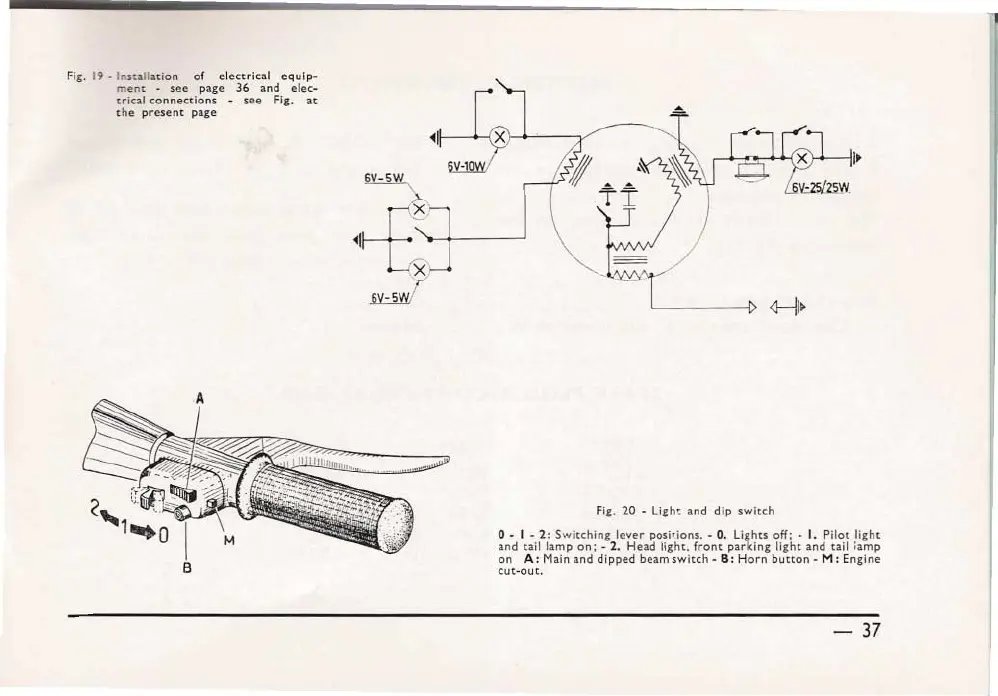

Fig. 19- Installation of electrical equIp-
ment . see
page 36 and elec-
trical connections ... see Fig. at
the present page
.,
Fig. 20 - Light and dip switch
0... I - 2: Switching lever posir.ions. ...O. Lights off; - I. Pilot light
and tail lamp on; -2. Head light. front parking light and tail :amp
on A: Main and dipped beam switch -8: Horn button -M: Engine
cut-out.
- 37
