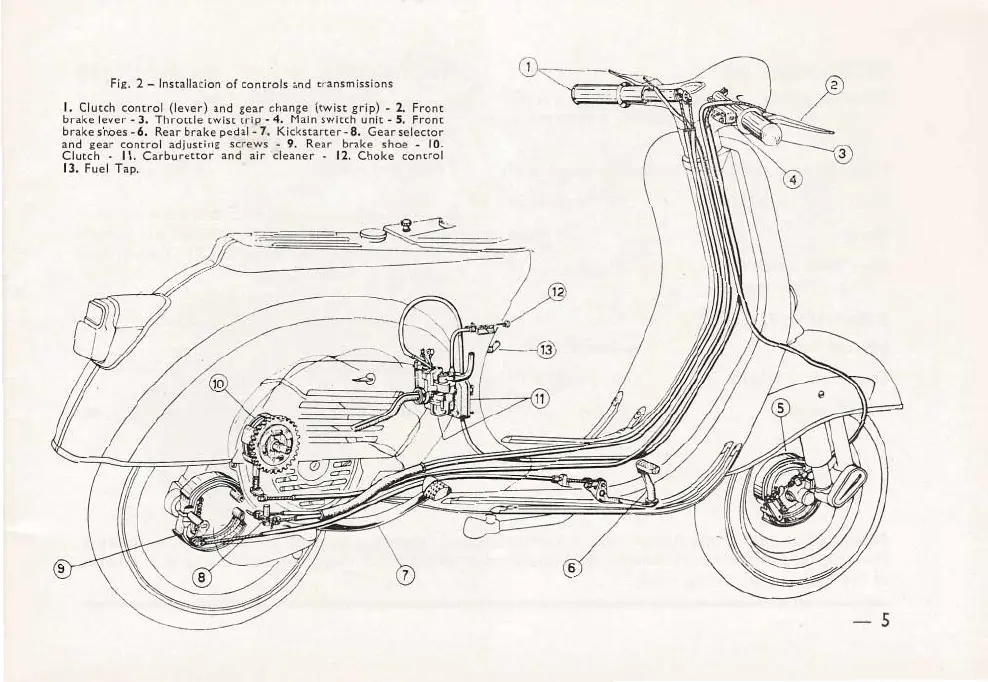

Fig.2 - Installationofcontrols and transmissions
I. Clutch control (lever) and gear change (twist grip) - 2. Front
brake lever - 3. Throttle twist trip. 4. Main switch unit. 5. Front
brake shoes- 6. Rear brake pedal- 7. Kickstarter - 8. Gear selector
and gear control adjusting screws . 9. Rear brake shoe - 10.
Clutch . 11. Carburettor and air cleaner - 12. Choke control
13. Fuel Tap.
