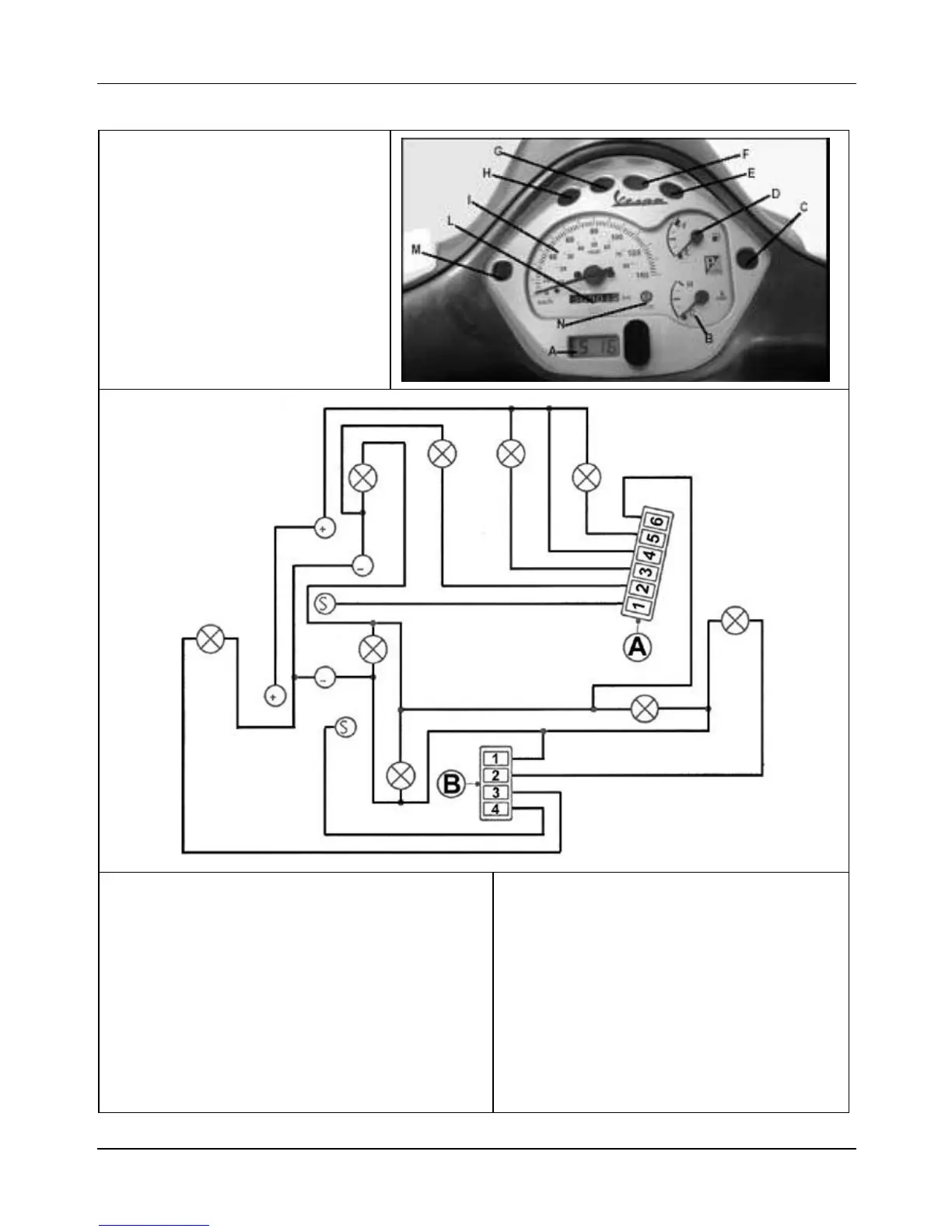

9.2.15 Instrument Panel
A = Digital clock with calendar
B = Coolant temperature
C = RH direction indicator switch
D = Fuel level indicator
E = Light indicator
F = Upper beam indicator
G = Low oil pressure indicator
H = Fuel reserve indicator
I = Speedometer
L = Odome ter
M = Left turn signal indicator
N = Immobilizer LED
‘A’ connector
1- Fuel level indicator signal
2- Upper beam indicator
3- Oil indicator
4- Power supply (+)
5- Reserve light
6- Lighting
‘B’ connector
1- Ground (-)
2- LH turn signal indicator
3- RH turn signal indicator
4- Temperature signal

Vespa GT 200 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	198 cc
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Capacity	9 liters
Rear Brake	Drum
Seat Height	790 mm
Dry Weight	148 kg
Cooling System	Liquid cooled
Front Suspension	Single arm with coil spring and shock absorber
Front Brake	220 mm disc
Length	1, 930 mm
Height	1170 mm
