VOLTAGE REGULATOR/RECTIFIER
Specification Desc./Quantity
Type Non-adjustable three-phase transistor
Voltage 14 ÷ 15V at 5000 rpm with lights off
Starter motor

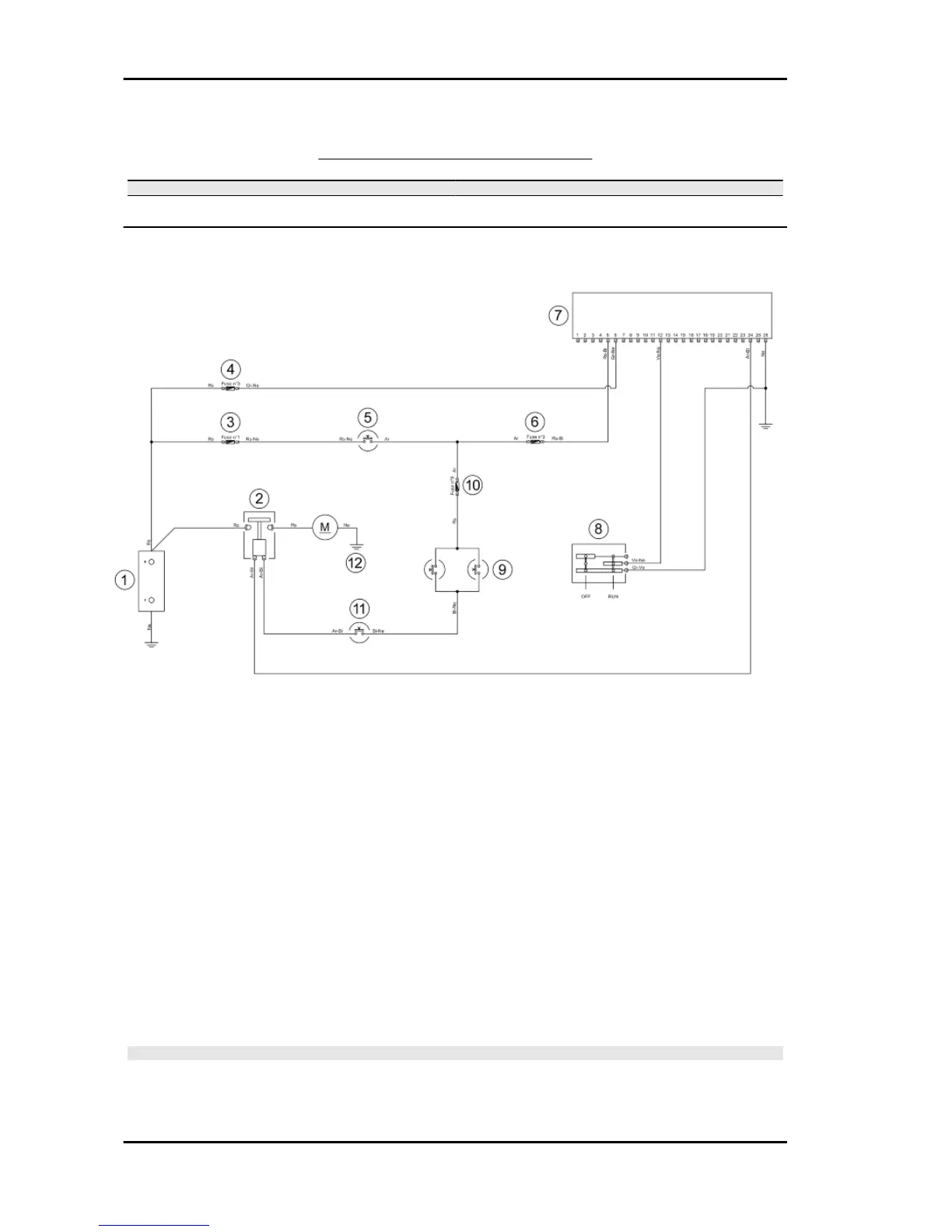

KEY
1. Battery
2. Start-up remote control
3. Fuse No. 1
4. Fuse No. 3
5. Key switch contacts
6. Fuse No. 2
7. Electronic control unit
8. Engine stop switch
9. Stop buttons
10. Fuse No. 8
11. Starter button
12. Starter motor
WARNING
ALL CONTINUITY TESTS MUST BE CARRIED OUT WITH THE CORRESPONDING CONNECTORS
DISCONNECTED.
1) Check fuses No. 1; 2; 3 and 8.
Electrical system Vespa GTS Super 300 ie (2008)
ELE SYS - 92
