03_15
03_16

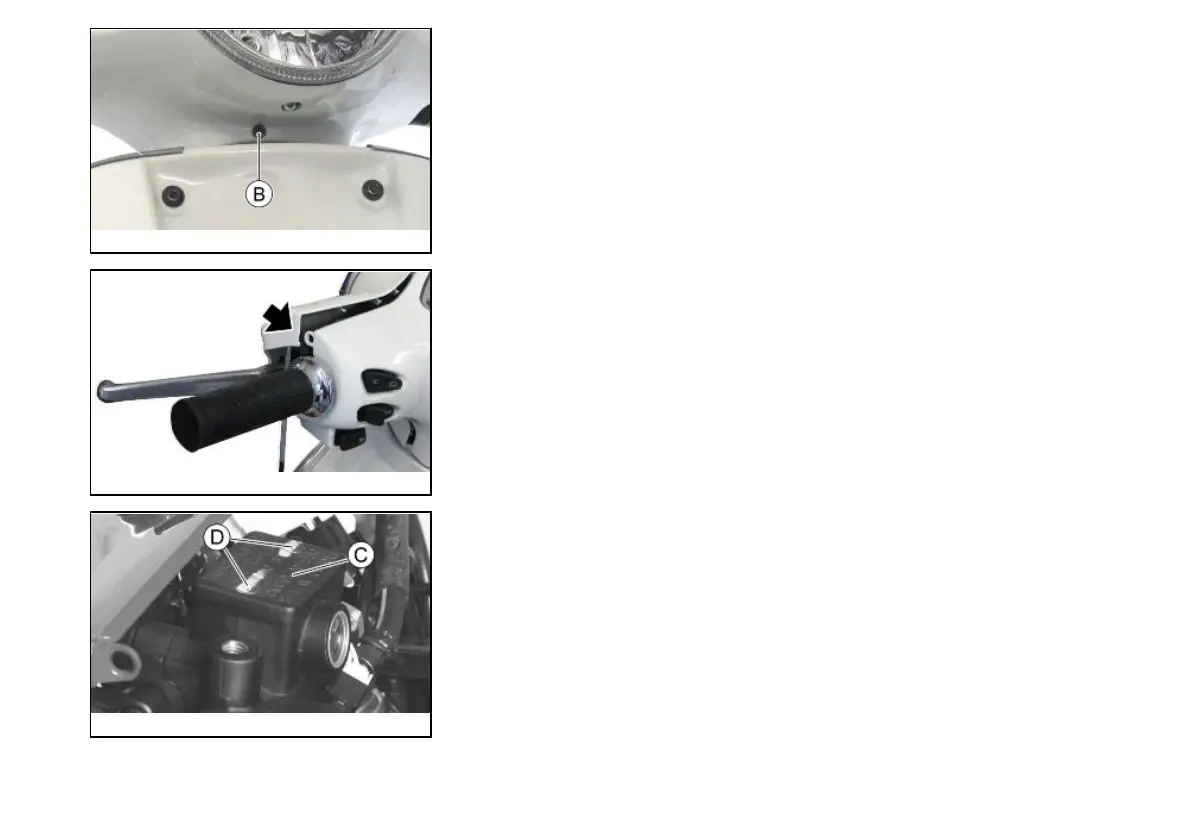

- Working separately on both sides of the vehicle, release the fin inside the handlebar
covers.
- Remove the front handlebar cover.
- Slide off the front handlebar covers from the front, paying attention to the connections
of the bulbs and place it on the front shield.
03_17
- Remove the tank cover «C» after sliding off the two fixing screws «D».
- Refill with the prescribed brake fluid type only, paying attention not to exceed the
maximum allowed level and indicated by the inspection sight glass.
Under standard climatic conditions, replace fluid as indicated in the scheduled main-
tenance table. This operation must be carried out by trained personnel; take your
vehicle to an authorised Service centre or Dealer.
52
