THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI-
CATE THAT WATER IS INFILTRATING. CONTACT AN AUTHORISED SERVICE
CENTRE.
03_28

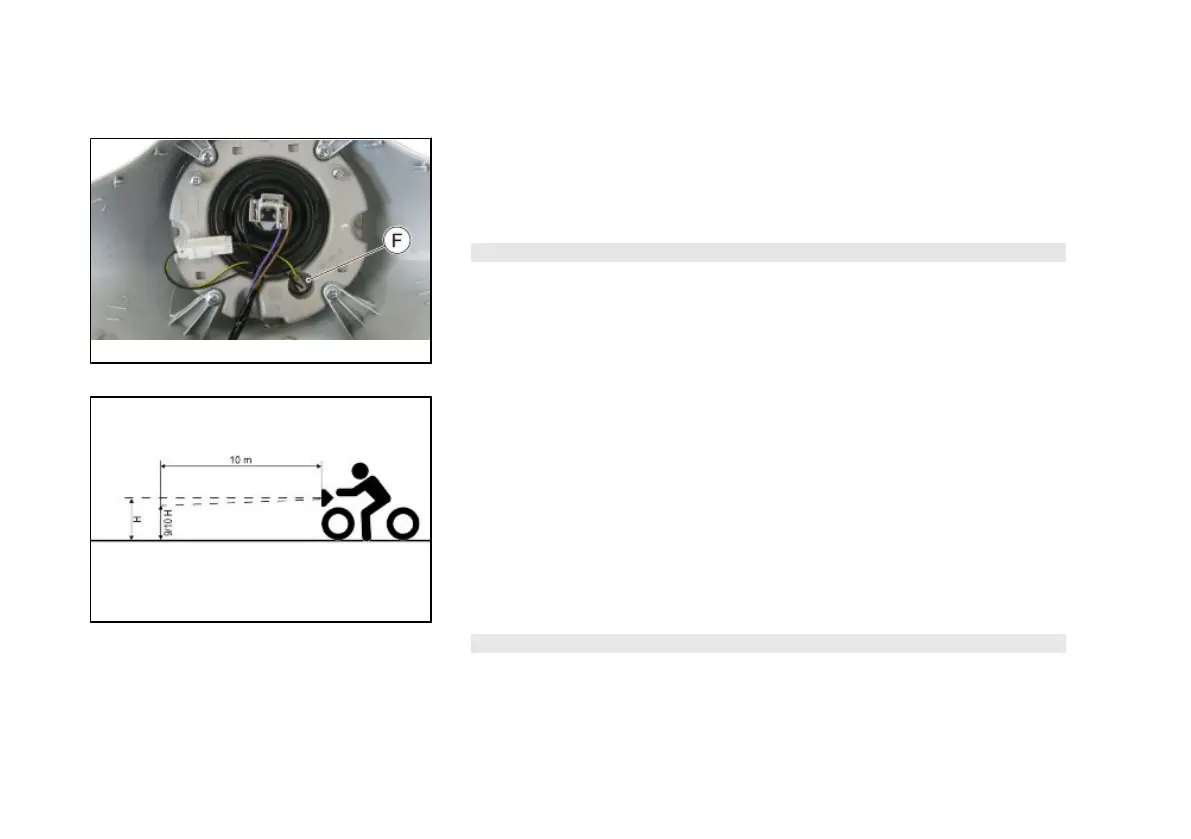

DAYLIGHT RUNNING LIGHT BULB
- Slide off the bulb «F»from the seat, paying attention to the electrical connections.
- Slide off the bulb from the bulb holder and replace it.
CAUTION
DO NOT PULL THE ELECTRICAL CABLES WHEN TAKING OUT THE BULB
HOLDER.
03_29
Head light adjustment (03_29, 03_30)
Proceed as follows:
- Position the vehicle in running order and with the tyres inflated to the prescribed
pressure, onto a flat surface, 10 m away from a half-lit white screen; ensure that the
longitudinal axis of the vehicle is perpendicular to the screen;
- Turn on the headlight and check that the borderline of the projected light beam on
the screen is not higher than 9/10 or lower than 7/10 of the distance from the ground
to the centre of the vehicle headlamp;
- Otherwise, adjust the right headlight with the screw «A».
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-
GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE VE-
HICLE IS USED.
64
