Vespa P125X User Manual

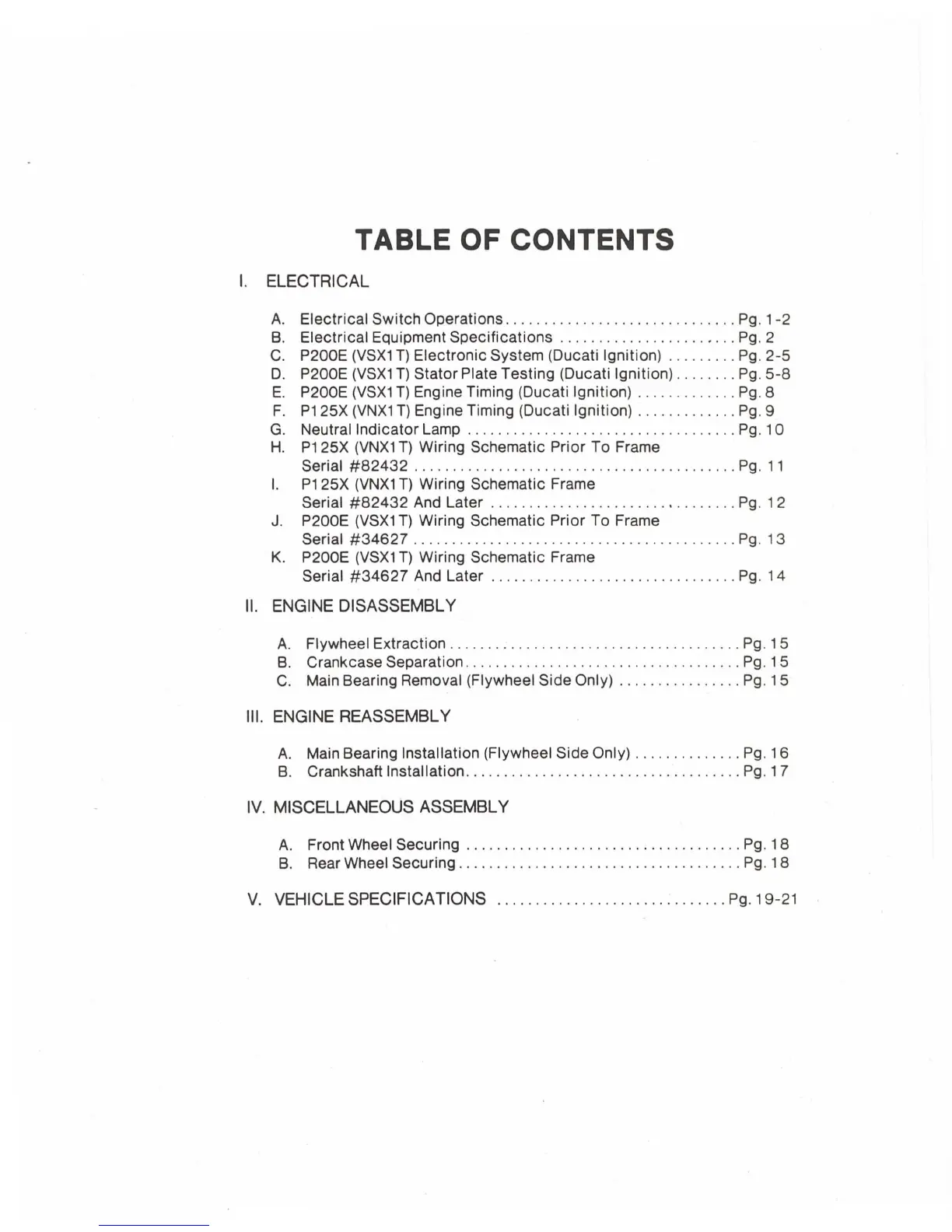

TABLE OF CONTENTS
I. ELECTRICAL
A. Electrical Switch Operations Pg. 1 -2
B. Electrical Equipment Specifications Pg. 2
C. P200E (VSX1 T) Electronic System (Ducati Ignition) Pg. 2-5
D. P200E (VSX1 T) Stator Plate Testing (Ducati Ignition) Pg. 5-8
E. P200E (VSX1 T) Engine Timing (Ducati Ignition) Pg. 8
F. P125X (VNX1 T) Engine Timing (Ducati Ignition) Pg. 9
G. Neutral Indicator Lamp Pg. 10
H. P125X (VNX1 T) Wiring Schematic Prior To Frame
Serial
#82432 Pg. 11
I. P1 25X (VNX1 T) Wiring Schematic Frame
Serial
#82432 And Later Pg. 12
J. P200E (VSX1 T) Wiring Schematic Prior To Frame
Serial
#34627 Pg. 13
K. P200E (VSX1 T) Wiring Schematic Frame
Serial
#34627 And Later Pg. 14
II. ENGINE DISASSEMBLY
A. Flywheel Extraction Pg. 15
B. Crankcase Separation Pg. 15
C. Main Bearing Removal (Flywheel Side Only) Pg. 15
III. ENGINE REASSEMBLY
A. Main Bearing Installation (Flywheel Side Only) Pg. 16
B. Crankshaft Installation Pg. 17
IV. MISCELLANEOUS ASSEMBLY
A. Front Wheel Securing Pg. 18
B. Rear Wheel Securing Pg. 18
V. VEHICLE SPECIFICATIONS Pg. 19-21

Vespa P125X Specifications

General

Cooling System	Air-cooled
Transmission	4-speed manual
Fuel Capacity	8 liters
Brakes	Drum brakes front and rear
Bore x Stroke	52.5 mm x 57 mm
Fuel System	Carburetor
Width	750 mm
Engine Type	Single-cylinder, 2-stroke
Rear Suspension	Coil spring
