Vespa P125X User Manual

I. ELECTRICAL

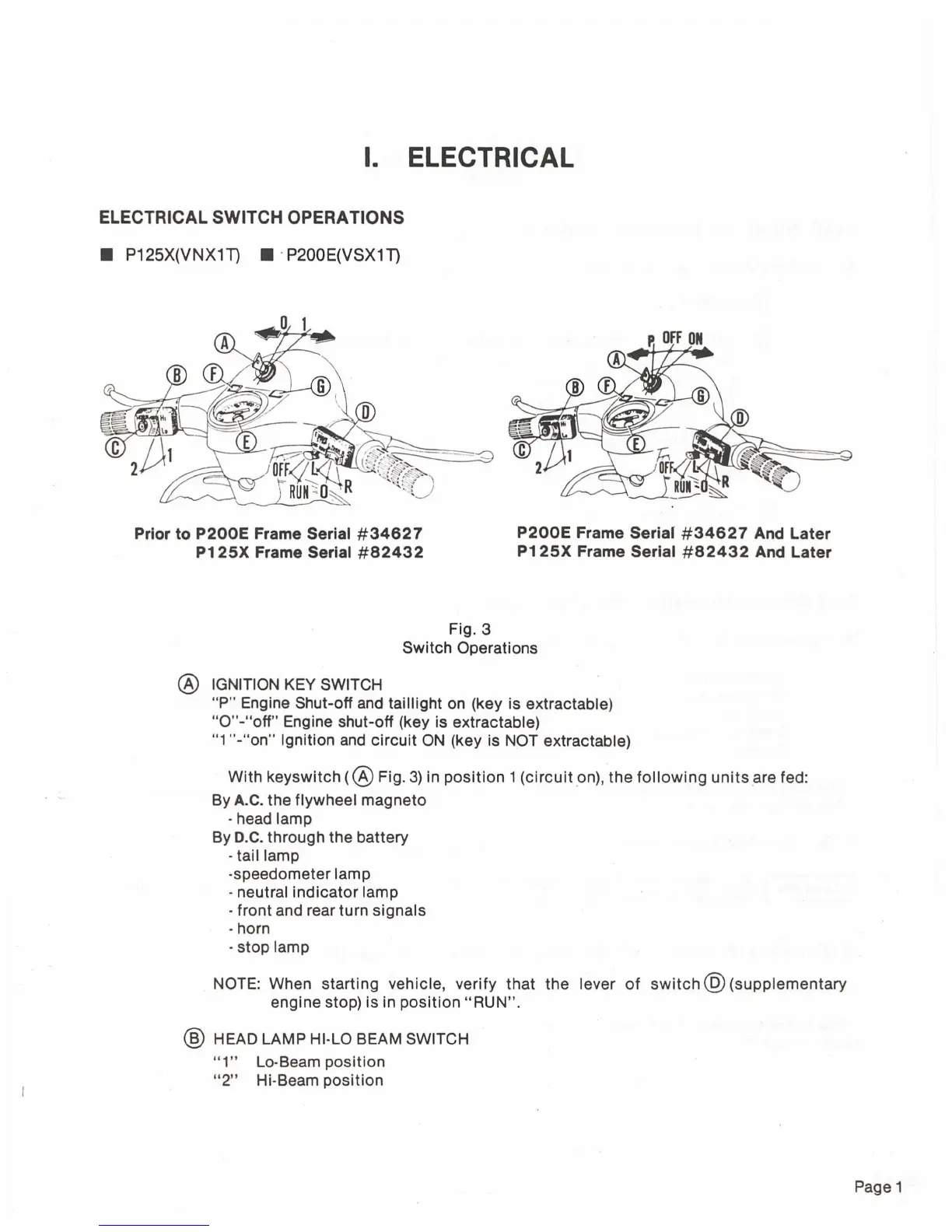

ELECTRICAL SWITCH OPERATIONS
• P125X(VNX1T) •. P200E(VSX1T)
Prior to P200E Frame Serial #34627
P125X Frame Serial #82432
P200E Frame Serial #34627 And Later
P125X Frame Serial #82432 And Later
Fig.3
Switch Operations
® IGNITION KEY SWITCH
"P" Engine Shut-off and taillight on (key is extractable)
"O"-"off" Engine shut-off (key is extractable)
"1 "-"on" Ignition and circuit ON (key is NOT extractable)
With keyswitch
(® Fig. 3) in position 1 (circuit on), the following units are fed:
By
A.C. the flywheel magneto
- head lamp
By
D.C. through the battery
- tail lamp
-speedometer lamp
- neutral
indicator lamp
- front and rear turn signals
- horn
. stop lamp
NOTE: When starting vehicle, verify that the lever
of switch @ (supplementary
engine stop) is in
position" RUN".
® HEAD LAMP HI-LO BEAM SWITCH
"1" Lo-Beam position
"2" Hi-Beam position
Page 1

Vespa P125X Specifications

General

Cooling System	Air-cooled
Transmission	4-speed manual
Fuel Capacity	8 liters
Brakes	Drum brakes front and rear
Bore x Stroke	52.5 mm x 57 mm
Fuel System	Carburetor
Width	750 mm
Engine Type	Single-cylinder, 2-stroke
Rear Suspension	Coil spring
