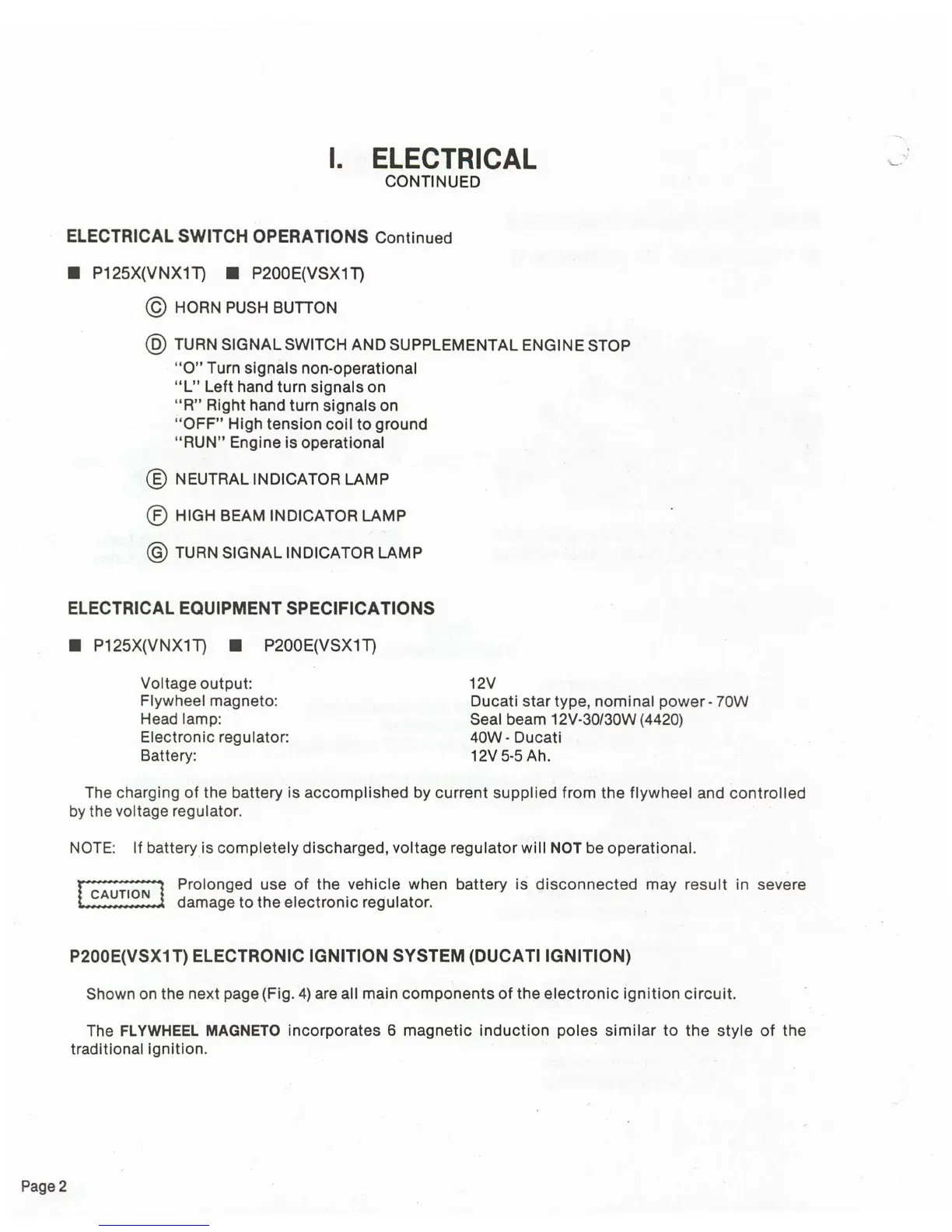

I.
ELECTRICAL
CONTINUED
ELECTRICAL SWITCH OPERATIONS Continued
• P125X(VNX1T) • P200E(VSX1T)
© HORN
PUSH
BUnON
@ TURN SIGNAL SWITCH AND SUPPLEMENTAL ENGINE STOP
"0"
Turn signals non-operational
"L"
Left hand turn signals on
"R"
Right hand turn signals on
"OFF"
High tension coil
to
ground
"RUN"
Engine is operational
® NEUTRAL INDICATOR LAMP
® HIGH BEAM INDICATOR LAMP
@ TURN SIGNAL INDICATOR LAMP
ELECTRICAL EQUIPMENT SPECIFICATIONS
• P125X(VNX1T) • P200E(VSX1T)
Voltage output:
Flywheel magneto:
Head lamp:
Electronic regulator:
Battery:
12V
Ducati star type, nominal power
- 70W
Seal beam 12V-30/30W (4420)
40W
- Ducati
12V
5-5
Ah.
Page
2
The charging of the battery is accomplished by current supplied from the flywheel and
controlled
by
the voltage regulator.
NOTE:
If batterY,is completely discharged, voltage regulator
will
NOT
be
operational.
I 1Prolonged use
of
the vehicle when battery is
disconnected
may result in severe
CAUTION
.
damage
to
the electronic regulator.
P200E(VSX1 T) ELECTRONIC IGNITION SYSTEM (DUCA
TIIGNITION)
Shown on the next page (Fig.
4)
are all main components
of
the
electronic
ignition
circuit.
The
FLYWHEEL
MAGNETO
incorporates 6 magnetic
induction
poles
similar
to
the style
of
the
traditional ignition.
To Next Page
