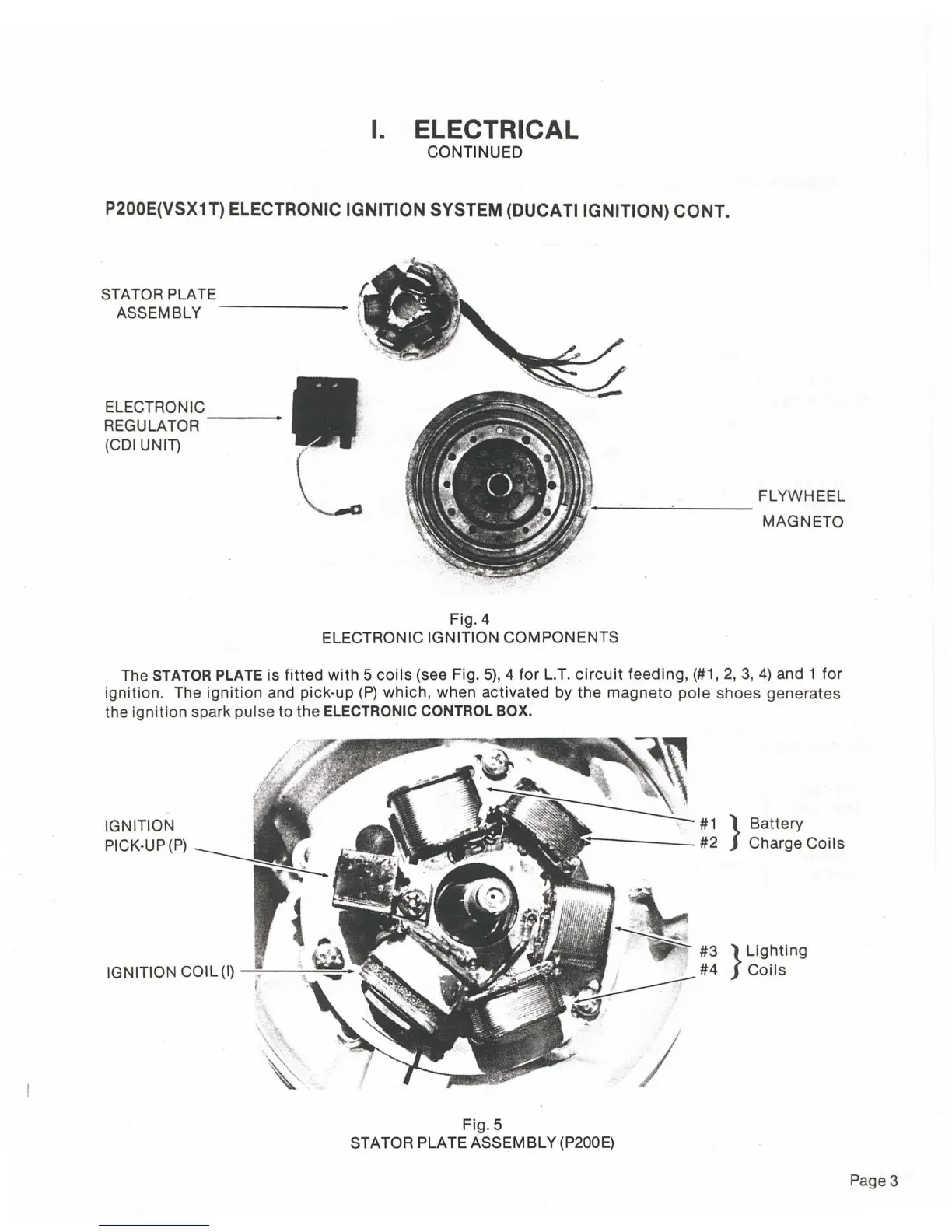

I. ELECTRICAL
CONTINUED
P200E(VSX1T) ELECTRONIC IGNITION SYSTEM (DUCATIIGNITION) CONT.
STATOR PLATE
ASSEMBLY
------+
ELECTRONIC
REGULATOR
----
(COl UNID
FLYWHEEL
;---'-------'----
MAGNETO
Fig.4
ELECTRONIC IGNITION COMPONENTS
The STATOR PLATE is fitted with 5 coils (see Fig. 5), 4 for L.T. circuit feeding, (#1,2,3,4) and 1 for
ignition. The ignition and pick-up (P) which, when activated by the magneto pole shoes generates
the ignition spark pulse to the ELECTRONIC CONTROL BOX.
IGNITION COIL(I) --=::--:-....::::::::=-
\ #1 } Battery
.:------ #2 Charge Coils
}
Lighting
Coils
/
Fig.5
STATOR PLATE ASSEMBLY (P200E)
Page 3

Vespa P125X Specifications

General

Cooling System	Air-cooled
Transmission	4-speed manual
Fuel Capacity	8 liters
Brakes	Drum brakes front and rear
Bore x Stroke	52.5 mm x 57 mm
Fuel System	Carburetor
Width	750 mm
Engine Type	Single-cylinder, 2-stroke
Rear Suspension	Coil spring
