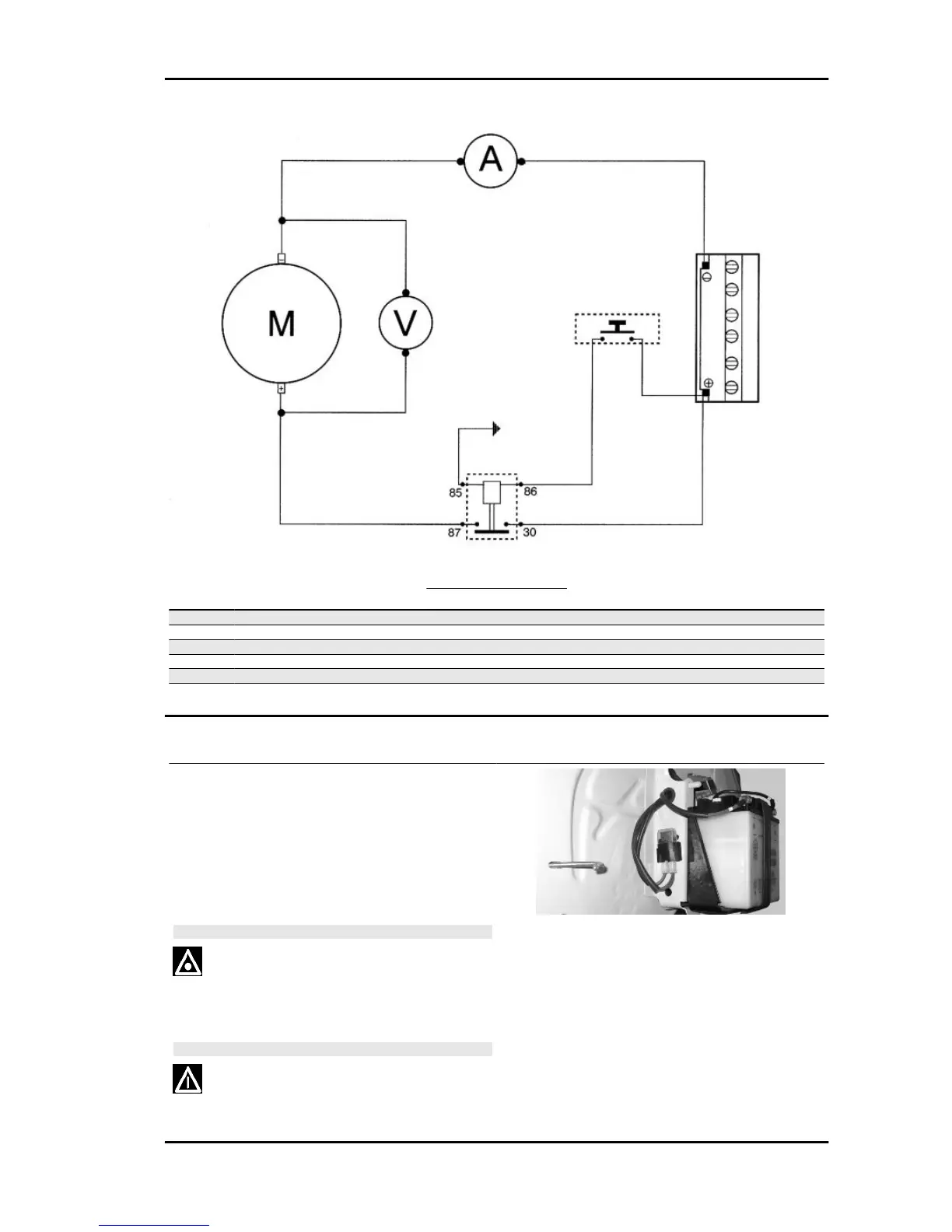

STARTER MOTOR
Specification
Desc./Quantity
1 Nominal voltage 12V
2 Nominal power 0,15 kW
3 Direction of rotation Clockwise
4 Engine connection Via pinion and gear ring on crankshaft, transmission-side
5 Control Pushbutton
6 Battery 12V - 9Ah
Fuses
The starter system and horn are protected by a
7.5A fuse, «A», located on the LHS of the battery
tray. Before replacing a burst fuse, it is necessary
to find the cause of the failure. Never attempt to
close the circuit with any material other than the
fuse.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE
THE FAILURE THAT CAUSED IT TO BLOW. NEVER TRY
TO REPLACE THE FUSE WITH ANY OTHER MATERIAL
(E.G., A PIECE OF ELECTRIC WIRE).
CAUTION
MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYS-
TEM, PERFORMED INCORRECTLY OR WITHOUT STRICT
Vespa PX 125 150 Euro 2 Electrical system
ELE SYS - 47
