Points to be checked before use
1. Before use, check the G2-E, tube and power adapter for trouble.
2. Make sure that there is no damage, loose screws, disconnected hosing, loose connectors,
or other defects.
3. Do not pull strongly the air hose or power cable when using.
4. Tightening strongly the trigger lever with a clamp, etc. may cause damage. Use this product within
your grip strength.

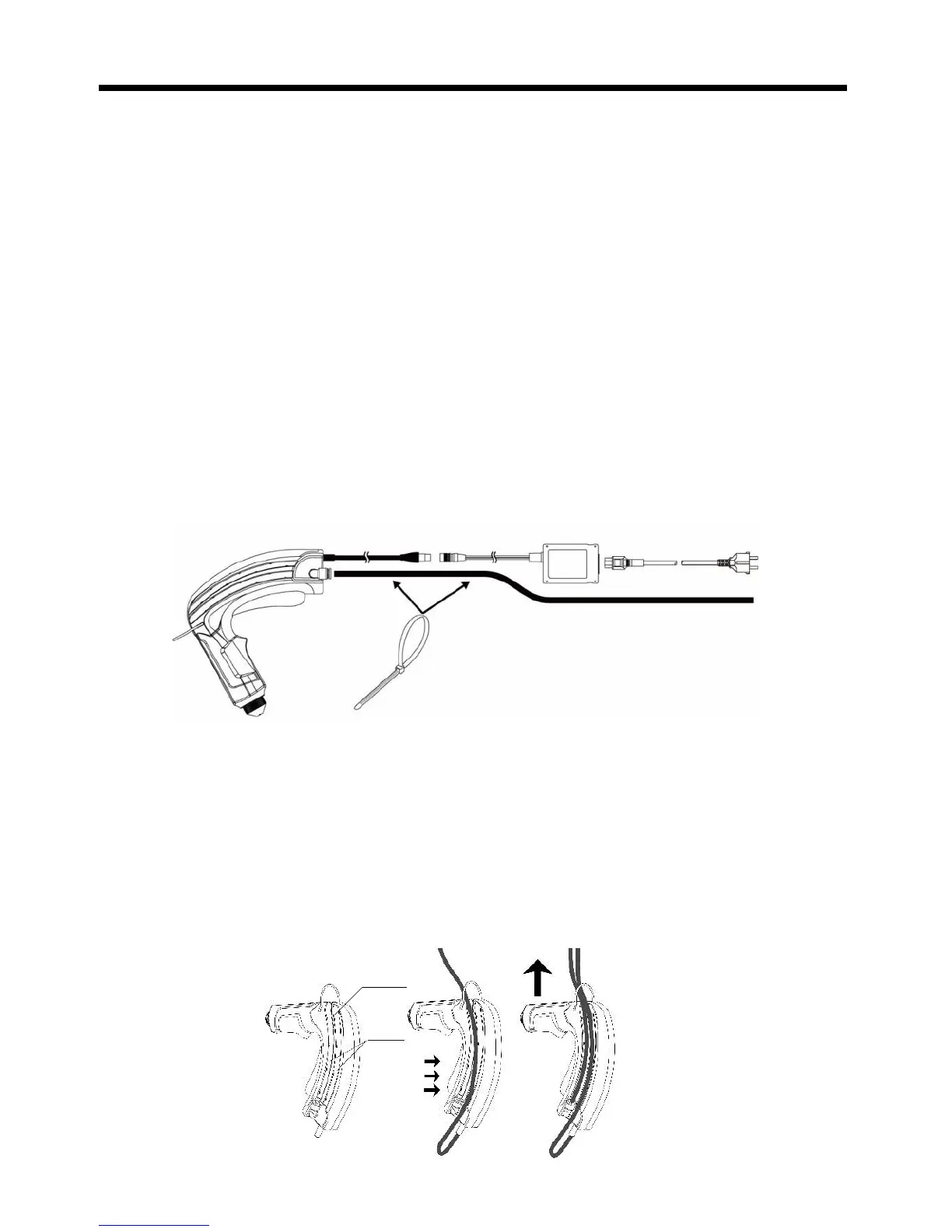

Connector connection/Air hose connection
Connect the power cable from the body to the power supply connector of the provided AC adapter.
Also confirm pin positions, insert and lock.
Insert the air hose into the joint at the bottom of the body.
* Banding the hose and cord together with banding bands (locally purchased item) makes it easy
to work because the wires are bundled.
When wiring air hose and power cord from upside
It is possible to set the air hose and the power cable upward so as to hang the G2-E from above (e.g.
balancer).
Procedures: 1) Insert the air hose through the hook from the above and the power cable (already
connected to the casing) through the hook from below.
2) Let the hose and the cable into the dedicated groove on the casing completely as illustrated below.
3) Please note that there is a stopper on the upper side of the groove for the power cable. Place the
cable assuredly below this stopper by pulling it back with fingers.
