Vessel STAT CLEAN G2-E - Operation

8

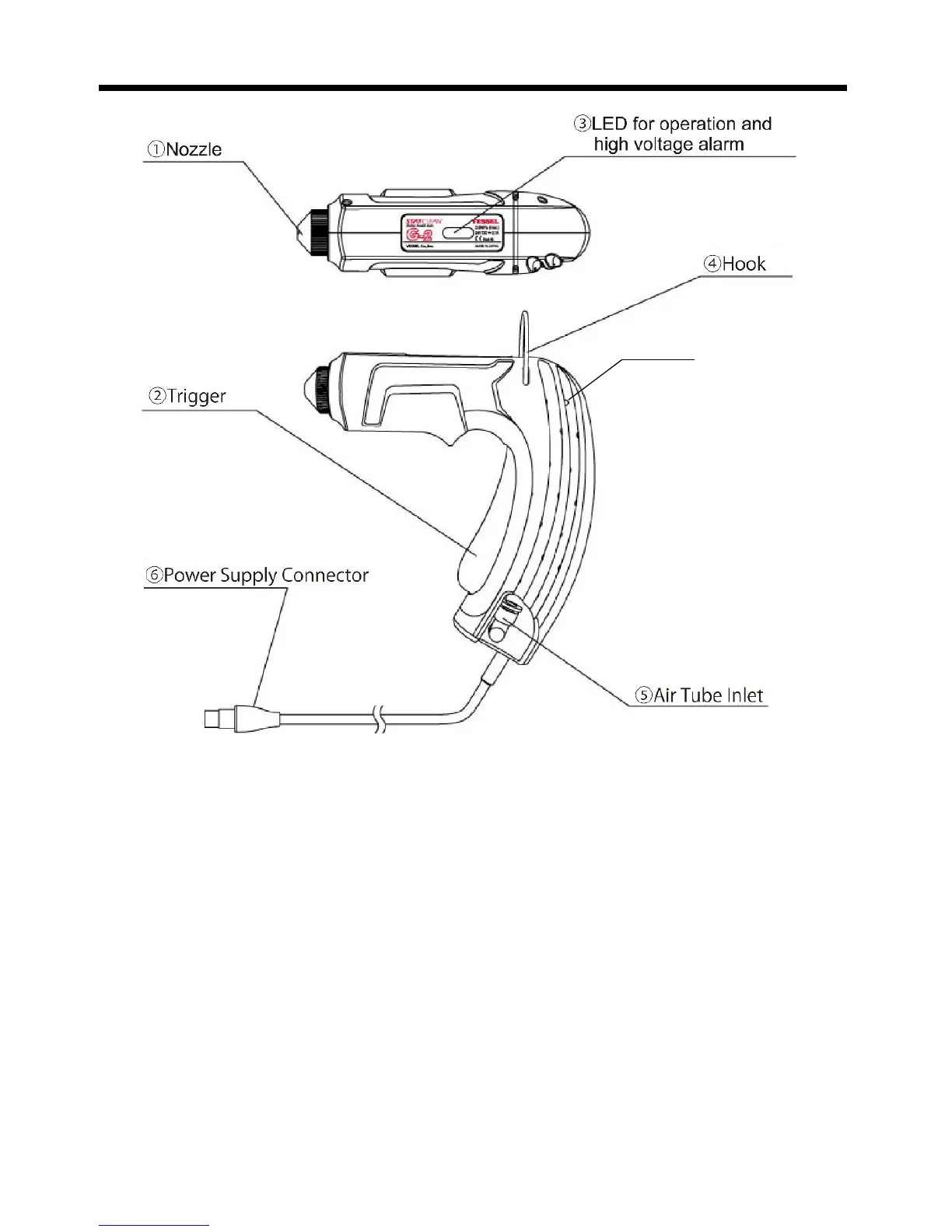

 Operation
1.Nozzle
Air Blow Point Part which ejects air. According to the application,
you can install the Tube-Fitting Nozzle (option) instead.
2.Trigger
Pull the trigger for air blow and static electricity removal.
3.LED for operation and
high voltage alarm
LED lights during static electricity removal after pulling the trigger.
H.V. ALARM LED lights at the time of high voltage abnormality.
4.Hook
To hang on this gun while not in use.
5.Air Tube Inlet
Air Tube connecting (Outer dia. 6mm x Inner dia. 4mm).
6.Power Supply Connector
Power inlet fitting for attached power supply adapter (AD24-ITC-E).
Stopper
