Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 5 of 21
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
21-514-005 WELDMENT, FRAME 1
12
11113
HEX BOLT, GRADE A, PLAIN
FINISH, 3/8"-16 X 2-1/2"
2
2
21-513-002 WELDMENT, DECK 1
13
37024
NYLON INSERT LOCK NUT,
GRADE 2, ZINC FINISH, 3/8"-16
2
3
21-042-
002-001
HAND WINCH, ONE PIECE
STRAIGHT HANDLE GRIP
1
14
21-112-002 PIN. ROLLER 4
4
21-527-002
SUB-ASSEMBLY, ROLLER W/
BUSHING
2
15
21-027-003 ROLLER, GUIDE 8
5
16-132-058 WHEEL, POLY ON POLY 2
16
11107
HEX BOLT, GRADE A, ZINC
FINISH, 3/8"-16 x 1-1/4"
5
6
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
17
33622
SPLIT LOCK WASHER, CARBON
STEEL, MEDIUM ZINC FINISH,
3/8"
5
7
33018
USS FLAT WASHER, Z PLATED,
Ø 3/4"
4
18
36106
HEX NUT, GRADE A, ZINC
PLATED, 3/8-16
5
8
21-112-003
PIN, Ø1/2 X 1-15/16 LG
RETAINING CLEVIS
3
19
21-145-013
SPECIALTY HARDWARE,
THIMBLE
1
9
65107
COTTER PIN, ZINC FINISH,
Ø5/32" X 2"
3
20
99-145-067
COMPRESSION SLEEVE Ø3/16" X
1" LG
1
10
21-527-001
SUB-ASSEMBLY, PULLEY
W/BUSHING
1
21
21-145-014
SPECIALTY HARDWARE, Ø3/16"
AIR CRAFT CABLE
1
11
16-132-009
PP-4/1.25-W
2
22
21-017-155
BAR, RETAINER
1

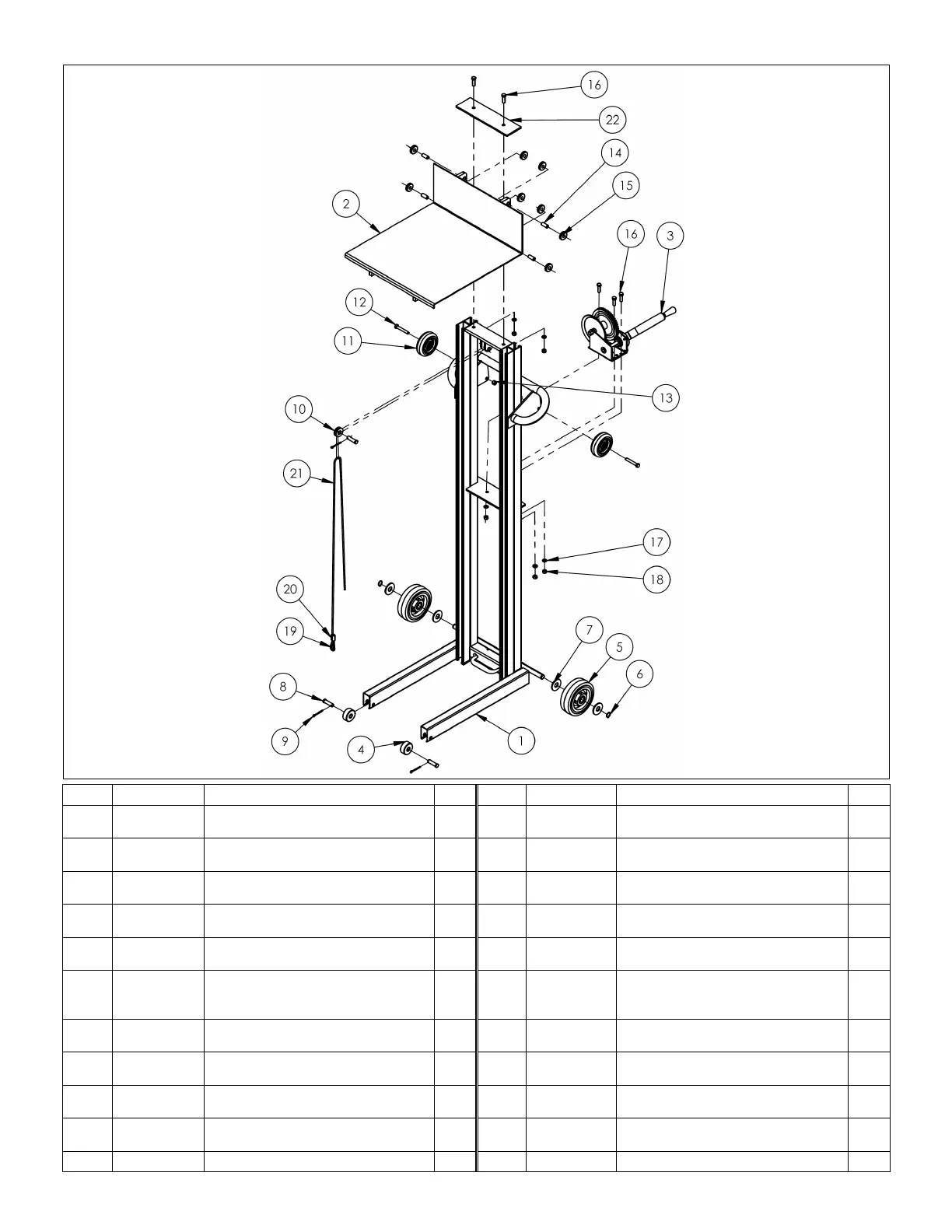

Exploded View & Bill of Materials
LLW
-202058-FW
21
-006-005
