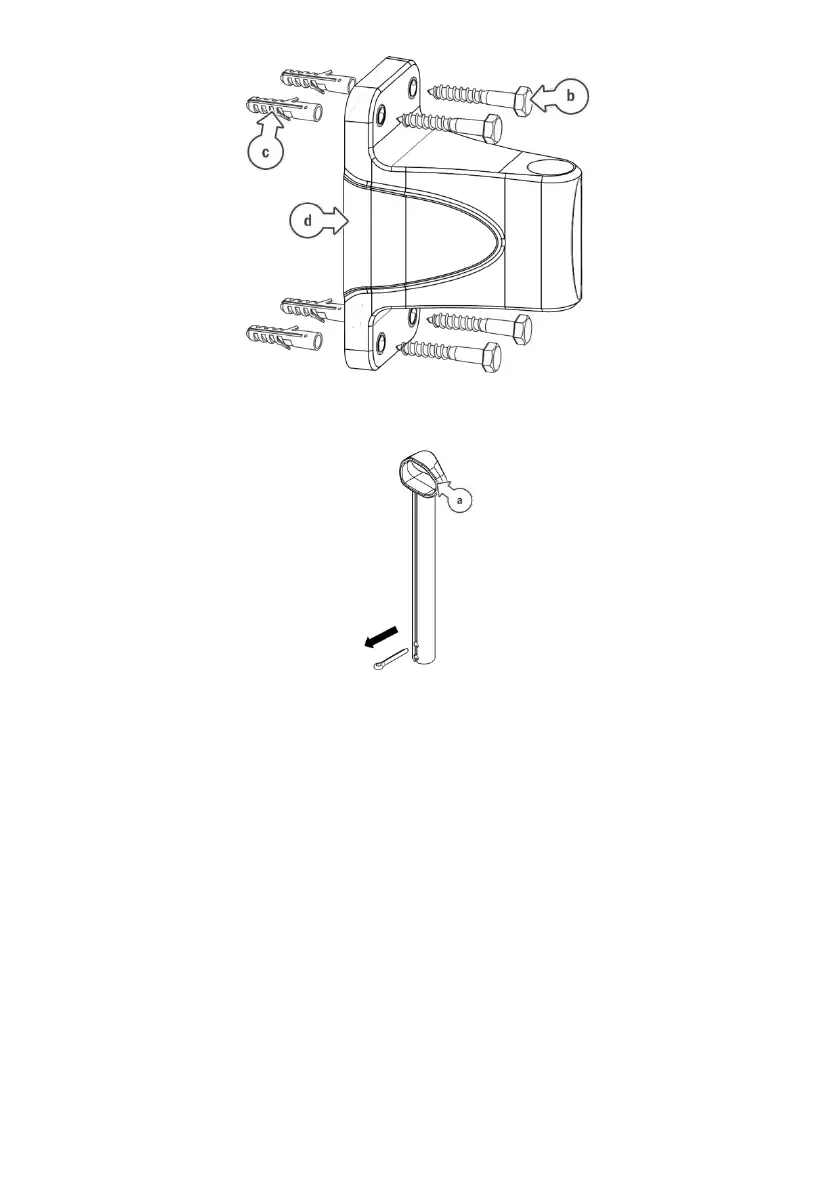

8. Take your Retractable Hose Reel, and remove the securing pin at the
base of the MOUNTING TUBE.
9. Remove the MOUNTING TUBE from the Hose Reel and slot it over the
WALL BRACKET. Align the holes in the HOUSING with the holes in the
WALL BRACKET
10. Insert the MOUNTING TUBE back into the holes on the WALL
BRACKET and HOUSING. Then replace the securing pin in the base of
the MOUNTING TUBE.
