-Do not place the charger unit or its cables on or near high temperature items.
-Do not leave this product in a closed unventilated environment while in use.
-The charger must be grounded.
-The charger does not contain any user-serviceable parts.
-Please do not disconnect the plugs while the EV charger is charging the vehicle.
-Do not operate the charger in temperatures outside its operating range
of -13° F to 122°F(-25°C ~+ 50°C)

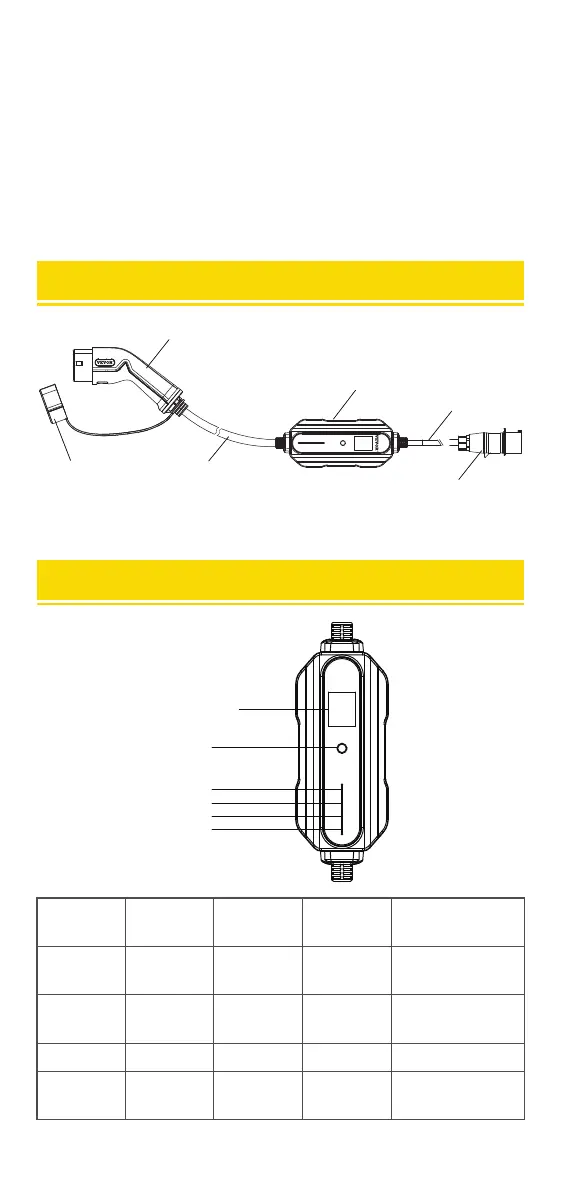

PORTABLE EV CHARGER COMPONENTS
Dust Cap Charging Cable
IEC 62196 Type 2
Charging Plug
Control unit
Mains Lead
Mains plug
MEANS OF INDICATOR LIGHTS
Status
See
Troubleshooting
Read to Connect
to Vehicle
Full Charged
Charging
LED Light 4
(Red)
ON
OFF
OFF
OFF
LED Light 1
(Green)
OFF
ON
ON
FLASH
LED Light 2
(Green)
OFF
OFF
FLASH
FLASH
LED Light 3
(Green)
OFF
OFF
OFF
FLASH
LCD display
Switch
Light1
Light2
Light3
Light4
