- 10 -

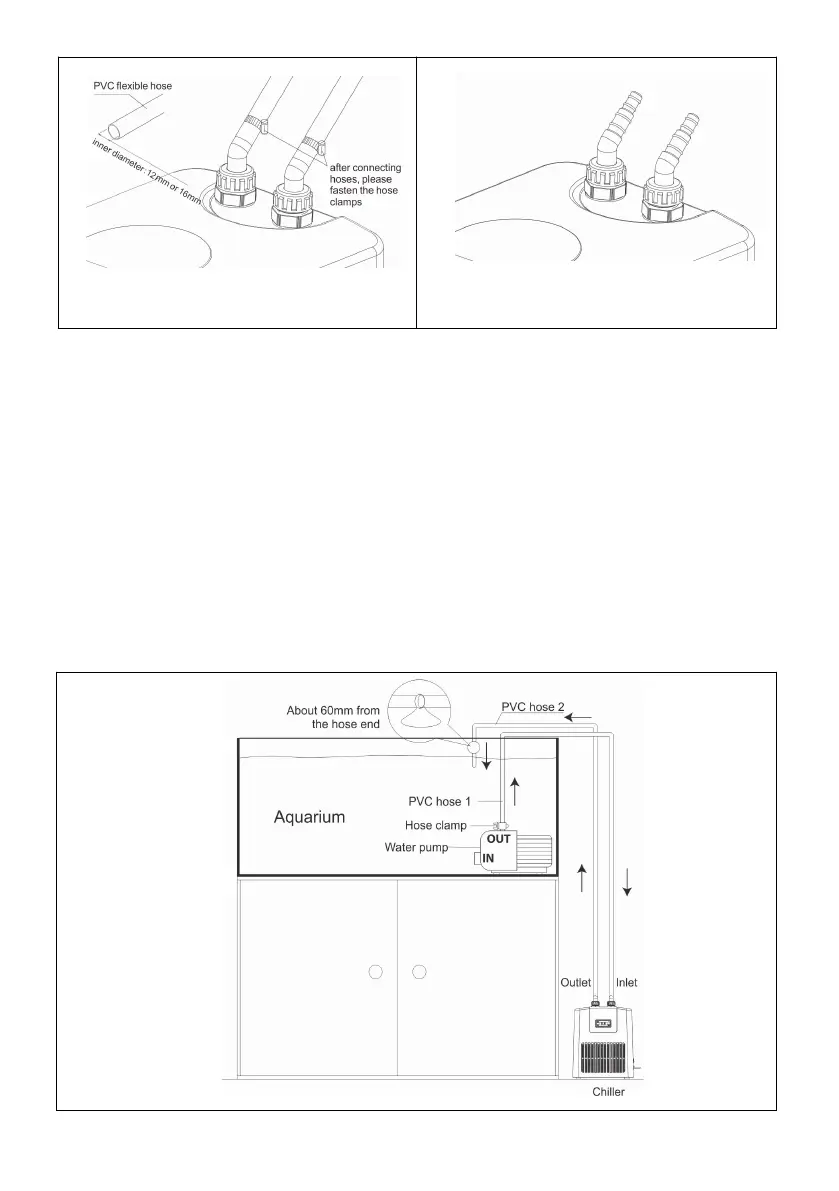

Fig. 4
Fig. 5
4.Pick the hose 1 ( the hose with one end connected to the chiller inlet), see the Fig. 5, then
connect the other end to the water pump outlet, fasten the hose clamp tight (see the Fig. 6)
Pick the hose 2 (the hose with one end connected to the chiller outlet), then insert the other
end through the elastic ring of the suction cup, and fix it at proper position inside the
aquarium wall (see the Fig.6.)
Pick the hose 2 (the hose with one end connected to the chiller outlet), then insert the other
end through the elastic ring of the suction cup, and fix it at proper position inside the
aquarium wall (see the Fig.6.)
Note: for the water pump installation, please refer to the Water Pump Instruction Manual.
Attention: Check the chiller inlet and outlet carefully, DO NOT MISCONNECT.
Fig. 5
