1. Center the tow bar on the attachment surface, spreading side arms to
at least 24", and mark the tow bar bracket centerlines.
2. Using the tow bar bracket as a template, drill two 1/2" holes into the
attachment surface on each side.
3. Attach tow bar brackets to the attachment surface using the 1/2 x
1-3/4 Gr5 bolts supplied with the tow bar.
NOTE: IF LONGER BOLTS ARE NEEDED, USE 1/2-13 Gr5 BOLTS.

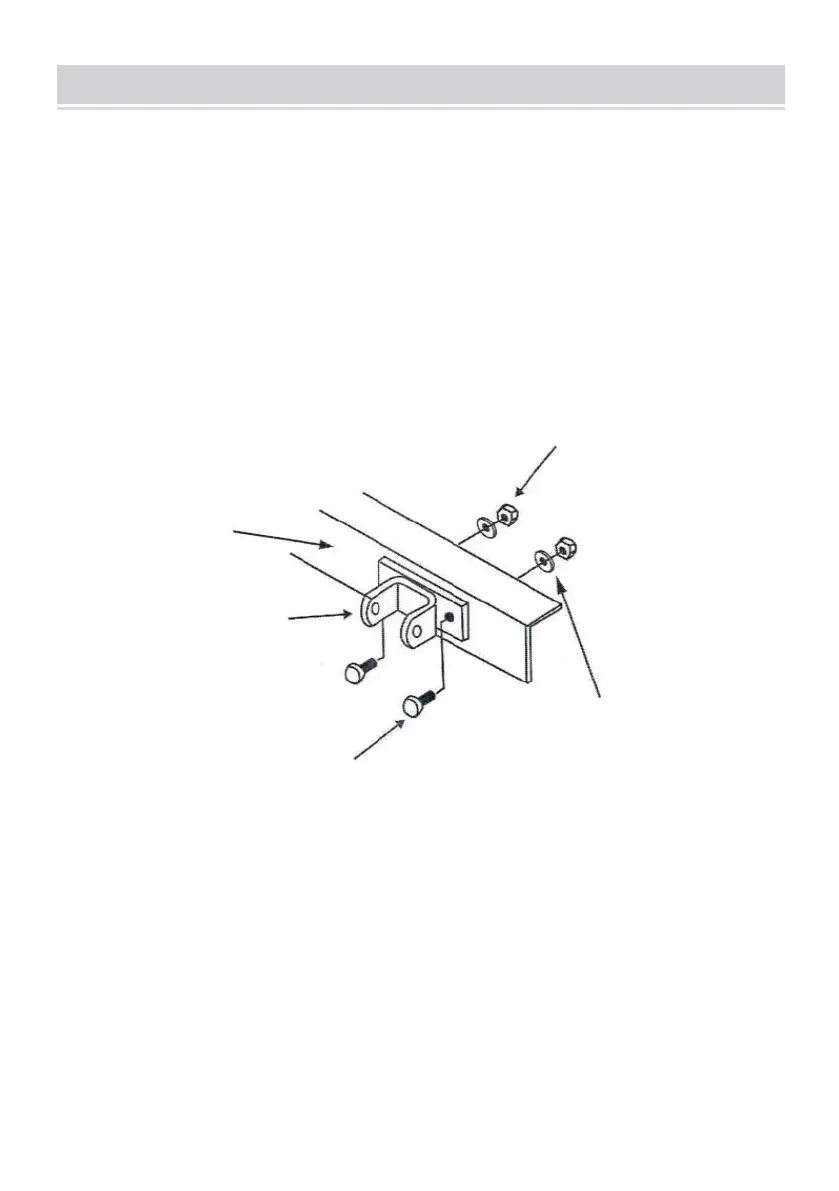

4. Fasten the tow bar brackets with flat washers and locknuts, as shown
below.
5. Tighten these 1/2" fasteners to 75 lb-ft..
HOOK-UP
1. Attach the tow bar to the tow bar brackets with two wire lock pins.
2. Attach the tow bar coupler to the 2" ball of the towing vehicle.
3. Center coupler on tow bar side arms so that the tow bar is symmetrical about
the centerline of the vehicles.
4. Tighten the nuts which attach the tow bar side arms to the coupler to 31 lb-ft.
5. Install the safety chains as described in the next section.
6. Connect an adequate wiring harness so that stoplights, turn signals, and
taillights operate on a towed vehicle in conjunction with towing vehicle's lights.
7. Read and follow labels located on the tow bar.
1/2 x 1-3/4 GR5 BOLT (4 Places)
