MANUAL VIAVAC-CB4 / 4.1 ( Operator section ) Art. nr. 50504 EN (01-07-2017)
__________________________________________________________________________________________
4
___________________________________________________________________________________
VIAVAC vacuum lifting BV T. + 31 348 449 660 E. info@viavac.com I. www.viavac.com

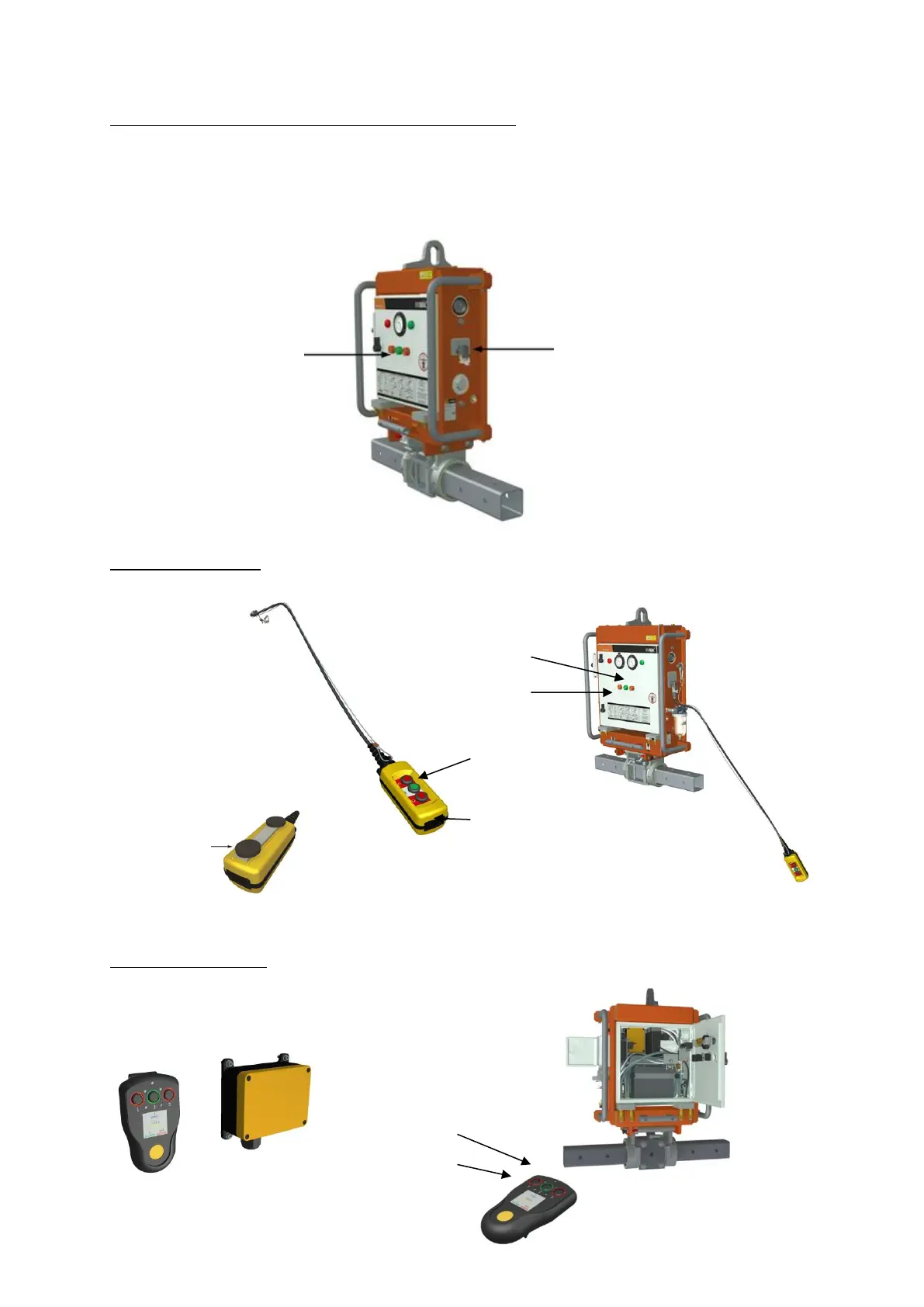

CB 4.1 Vacuum unit prepared for optional remote control
The CB 4.1. is identical to the CB4 exept for the following:
- To permit remote control, the hand actuated valve is replaced by electro magnetic 3/2 valves.
- 3 buttons on the front door for suction (1 green) and release (2 red buttons).
- Connector to fit additional remote control on cable.
Buttons for control Connector for additional
suction & release remote control box on cable
__________________________________________________________________________________
Cable remote control
This can easily be installed by simply connecting the connector at the side of the device.
( 24 )
( 22 )
( 21 )
( 23 )
Magnets
__________________________________________________________________________________
Radio Remote Control
For this, a receiver box has is installed into the switchbox.
Suction and release can be activated on the transmitter.
( 26 )
Receiver ( 25 )
Transmitter
