C 10 Spare parts
Main spareparts are listed, these can also be found and ordered after registering at www.viavac.com/shop.
X = Recommended spare part

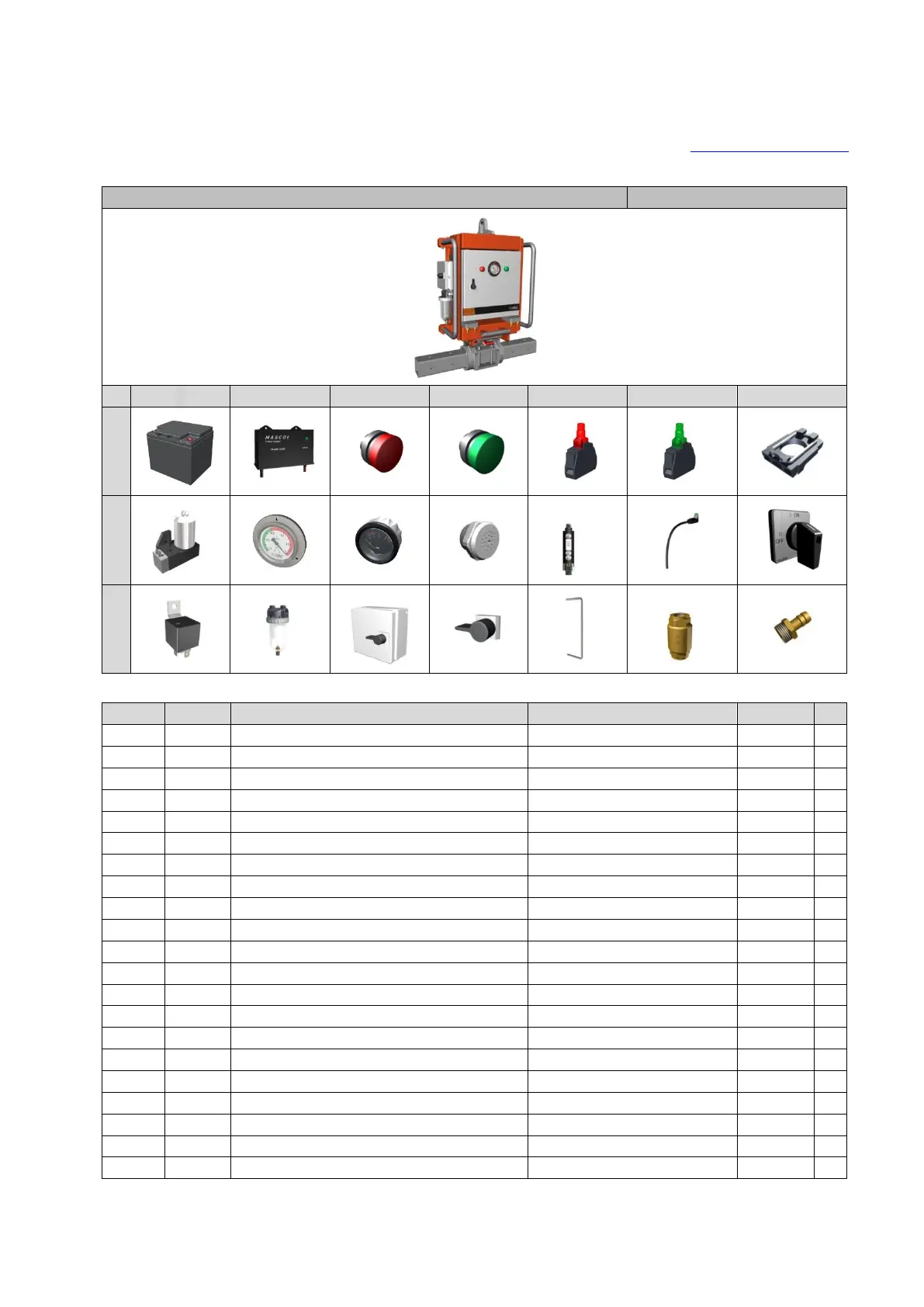

VIAVAC-CB4 vacuum unit
Art. no. 408500
A
B
C
D
E
F
G
1
2
3
Pict.
Quan.
Description
Type
Art. no.
A
1-A
1
Battery
12V/50AH
33027
1-B
1
Battery charger
12V/4A
33017
1-C
1
LED fixture
22mm red
9054
1-D
1
LED fixture
22mm green
9055
1-E
1
LED lamp red
12V
9058
1-F
2
LED lamp green
12V
9057
1-G
2
LED adaptor
9056
2-A
2
Vacuum pump
12V-1,5m3
23002
2-B
1
Vacuum gauge set
Ø63mm, 1/4’’
276502
2-C
1
Volt indicator
Ø53mm, 12V
31010
2-D
1
Acoustic alarm
Ø32mm, 5...16VDC – 96dB
162105
2-E
1
PICO vacuum switch
4 pins
29001
2-F
1
Connection cable
4 pins
29002
2-G
1
Main switch
TM-1-8291
9034
3-G
4
Relais
12V
21001
3-B
2
Filter water separator
G’’1/2’’-‘’1/2’’
5001
3-C
1
Cable box
CB4 & CB5
287403
3-D
2
Button
Type B
9028
3-E
2
Hand grip
G3/4’’, L=914
30805
3-F
2
Non return valve
G3/8’’ I-I
2003
3-G
4
Quick coupling “male-thread”
Male G1/2’’ NW 7.2
5072
