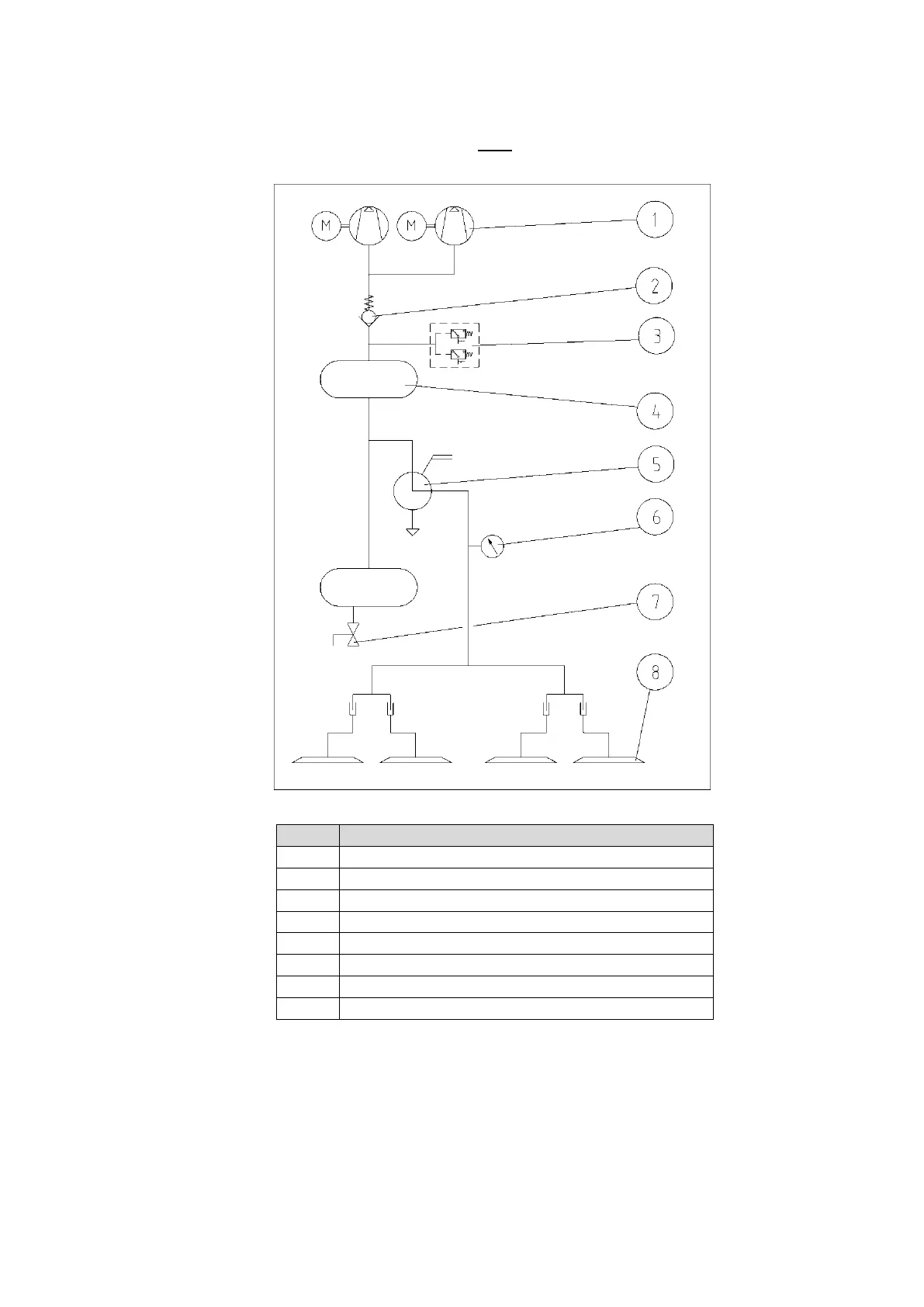

C 8 Vacuum diagram
CB4
ITEM
DESCRIPTION
1
Vacuum pumps
2
Non return valve
3
Vacuum switch
4
Vacuum reserve tank
5
2 way ball valve
6
Vacuum indicator
7
Water drain valve
8
Suction pads
