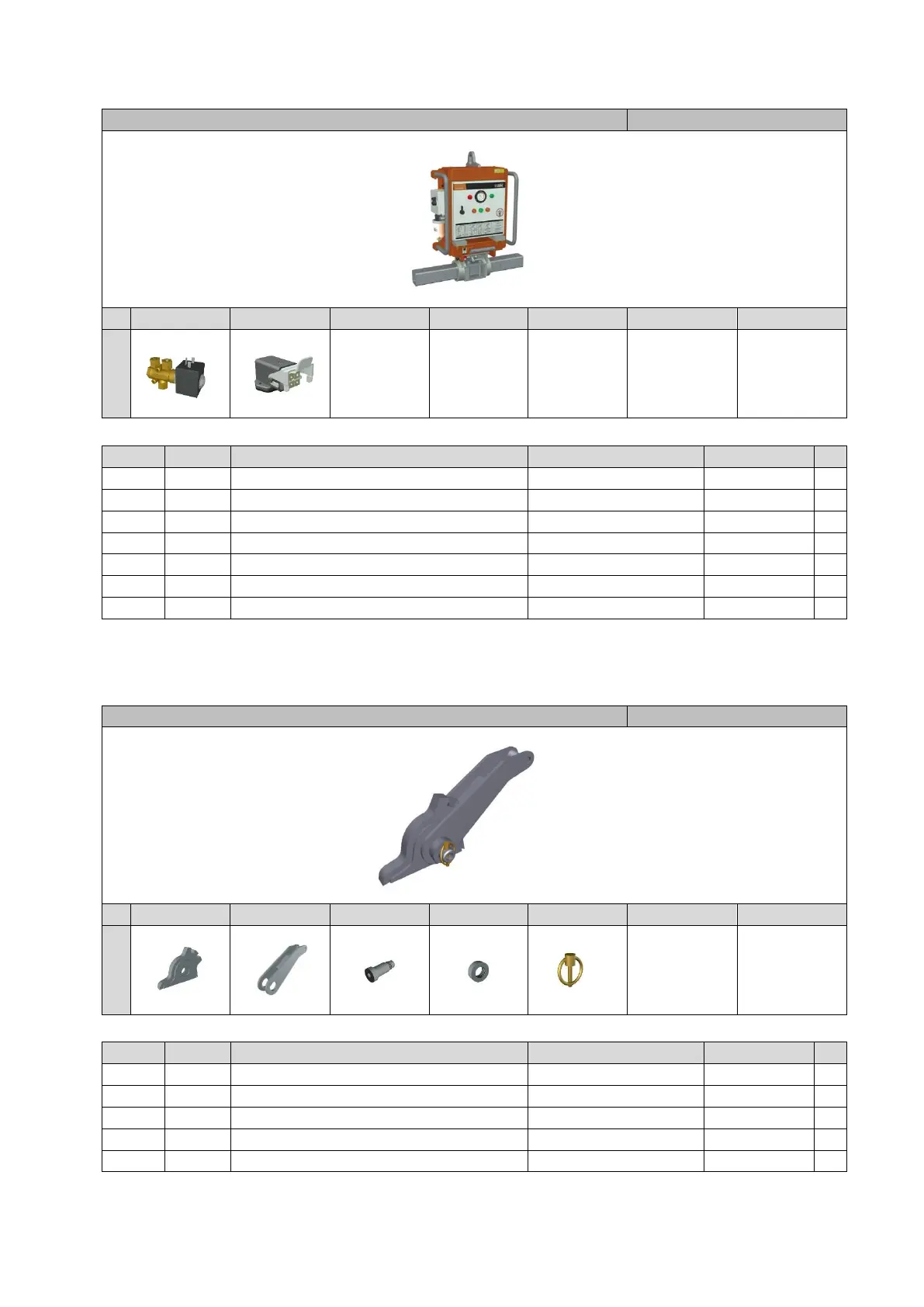

VIAVAC-CB4.1 vacuum unit prepared for remote control
Art. no. 257212
A
B
C
D
E
F
G
1
Pict.
Quan.
Description
Type
Art. no.
A
1-A
1
Electro magnetic 3/2 valve
12VDC
177605
1-B
1
Connector
female
155201
1-C
1-D
1-E
1-F
1-G
Adjustable suspension
Art. no. 290106
A
B
C
D
E
F
G
1
Pict.
Quan.
Description
Type
Art. no.
A
1-A
1
Suspension lock
CB
290105
X
1-B
1
Suspension frame
CB
290312
X
1-C
1
Suspension pin
Ø4 L=100
290202
X
1-D
1
Suspension nut
Ø45xM30, L=15
300102
X
1-E
2
Quick coupling
Ø6, L=40
226103
