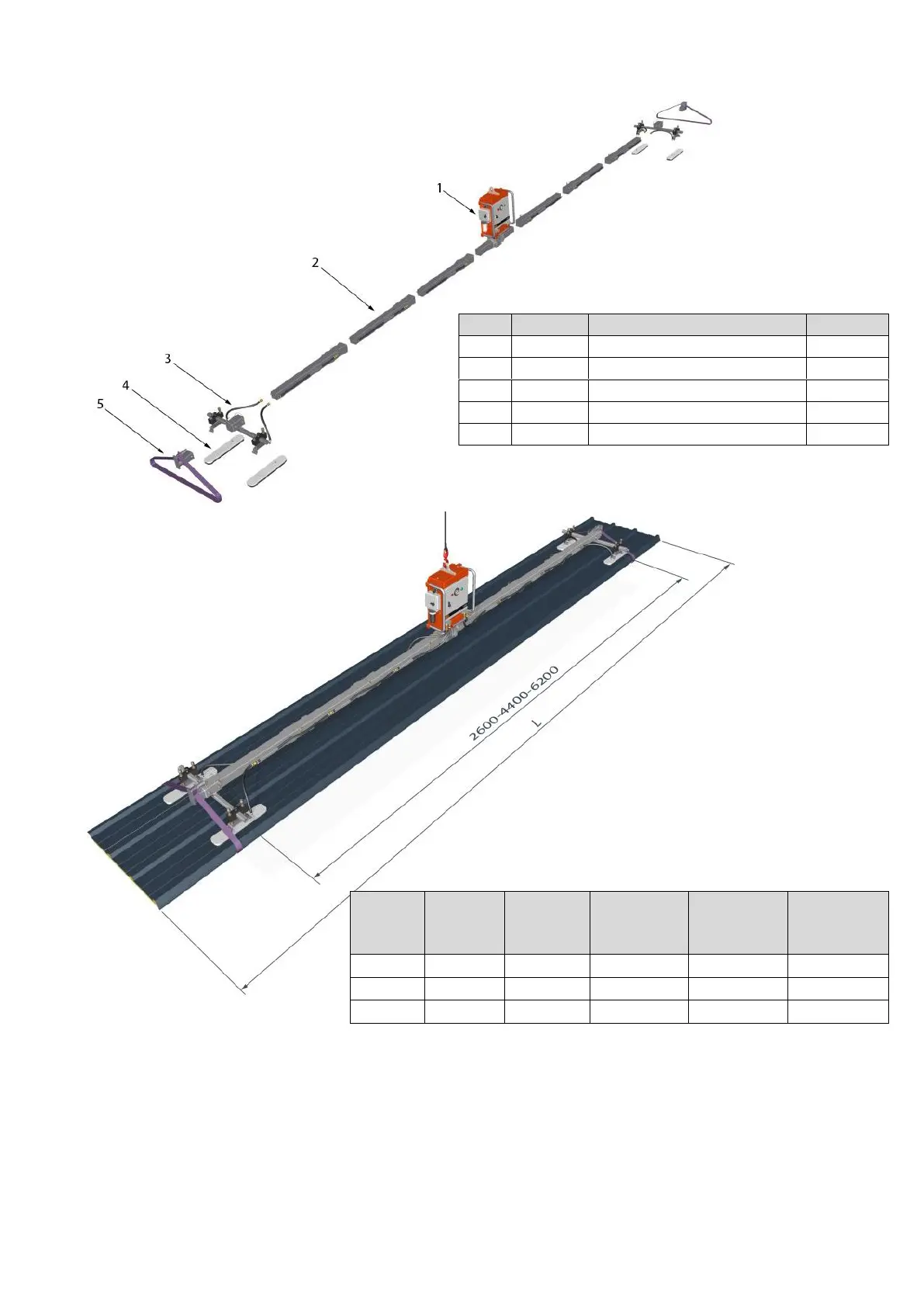

CB4 configuration type: R2600, R4400, R6200
For roof panels up to 16 meter length
Roof pitch 0 . . . . 25
o
* = Other type of suction pads on request.
. . . *= load with 4x75kg pads, ( . . . ) = max. possible load on traverse.
Type RA = roof panels with min.0,5mm steel skin & EPS/PUR/PIR core.
Type RB = roof panels with min. 0,5mm steel skin & mineral wool core.
Max. wind speeds L = up to 12 meter 11m/s, 12 up to 16 meter 9m/s.
REMARKS
- Panels with a length up to 20 meter are possible with configuration type RC 8000 - 9800.
- Panels with a roof pitch 25
0
up to 45
0
are possible with configuration RT 2600 - 4400 – 6200
ITEM
QUAN.
DESCRIPTION
ART. NR
1
1
Vacuum module CB4
408500
2
2 - 4 - 6
Extension beam
408003
3
1 set
Cross traverse
408501
4
4
Suction pad 110x530, 75kg
402502*
5
1 set
Falling safety device FS4
408007
DIST.
mm
EXT.
BEAMS
qty
SET
WEIGHT
kg
MAX.
LOAD
kg
L
(type RA )
meter
L
( type RB )
meter
2600
2
180
300* (800)
3 …12
3 … 8
4400
4
215
300* (500)
12 …14
8 …10
6200
6
250
300* (300)
14 … 16
10 …12
