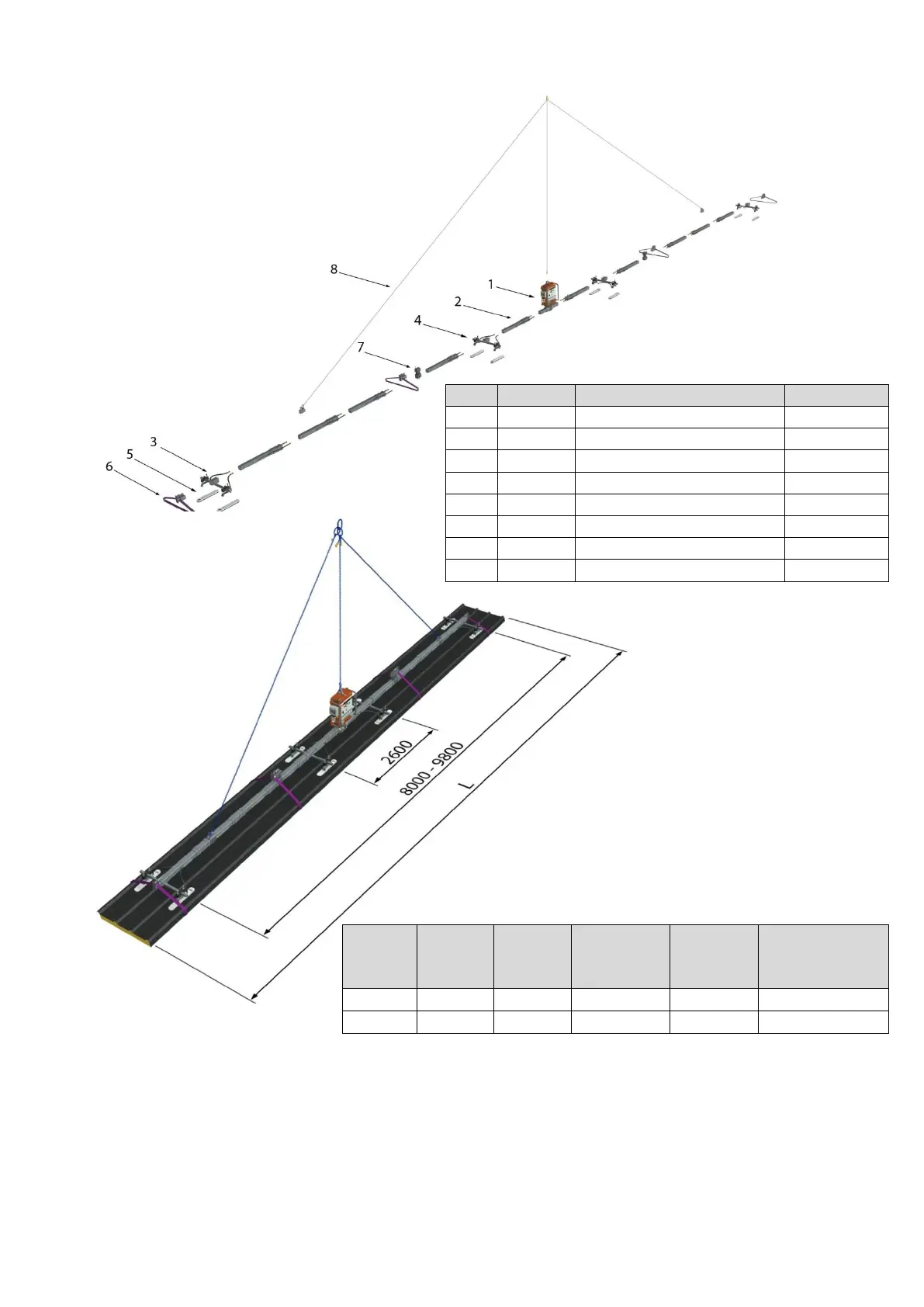

CB4 configuration type: R8000/2600-K8, R9800/2600-K8
For roof panels up to 20 meter length
Roof pitch 0 . . . . 25
o
* = Other type of suction pads on request.
. . . *= load with 8x75kg pads, ( . . . ) = max. possible load on traverse.
Type RA = roof panels with min.0,5mm steel skin & PUR/PIR core.
Type RB = roof panels with min. 0,5mm steel skin & mineral wool core.
Max. wind speeds L = 16 up to 20 meter 8m/s.
REMARKS
- Panels with shorter lengths are possible with configuration type R 2600 - 4400 – 6200, RC 8000 - 9800.
- Panels with a roof pitch 25
0
up to 45
0
are possible with configuration RT 2600 - 4400 – 6200.
ITEM
QUAN.
DESCRIPTION
ART. NR
1
1
Vacuum module CB4
408500
2
8 - 10
Extension beam
408003
3
1 set
Cross traverse
408501
4
1 set
Intermediate cross traverse
408502
5
8
Suction pad 110x530, 75kg
402502*
6
2 set
Falling safety device FS4
408007
7
2
Safety strap mounting
408016
8
1
Chain suspension K8/K10
408050
DIST.
mm.
EXT.
BEAMS
qty.
SET
WEIGHT
kg
MAX.
LOAD
kg
L
(type RA )
meter
L
( type RB )
meter
8000
8
350
600* (800)
16 … 18
12 … 14
9800
10
385
600* (500)
18 … 20
14 … 16
