MANUAL VIAVAC-CB4 / 4.1 ( Operator section ) Art. nr. 50504 EN (01-07-2017)
__________________________________________________________________________________________
15
___________________________________________________________________________________
VIAVAC vacuum lifting BV T. + 31 348 449 660 E. info@viavac.com I. www.viavac.com

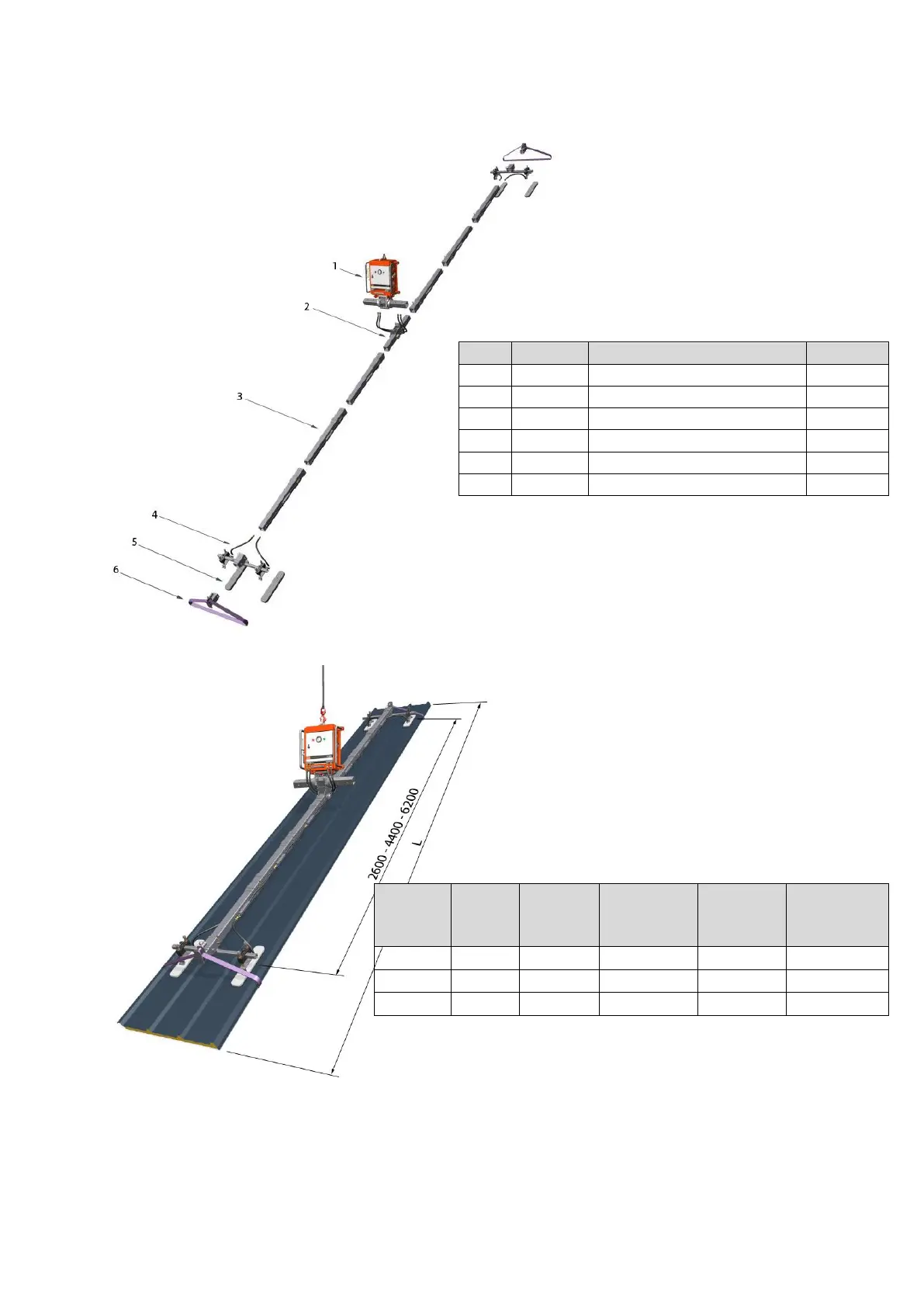

CB4 configuration type: RT2600, RT4400, RT6200
For roof panels up to 16 meter length
Roof pitch 25 . . . . 45
o
* = Other type of suction pads on request.
. . . *= load with 4x75kg pads, ( . . . ) = max. possible load on traverse.
Type RA = roof panels with min.0,5mm steel skin & PUR/PIR core.
Type RB = roof panels with min. 0,5mm steel skin & mineral wool core
Max. wind speeds L = up to 12 meter 8m/s, 12 up to 16 meter 6m/s.
REMARKS
- Panels with a roof pitch 0
0
up to 25
0
are possible with configuration R 2600 - 4400 - 6200
- Panels with a length up to 20 meter are possible with configuration type RC 8000 - 9800.
ITEM
QUAN.
DESCRIPTION
ART. NR
1
1
Vacuum module CB4
408500
2
1
Tilting beam
408006
3
2 – 4 - 6
Extension beam
408003
4
1 set
Cross traverse
408501
5
4
Suction pad 110x530, 75kg
402502*
6
1 set
Falling safety device FS4
408007
DIST.
mm
EXT.
BEAMS
mm
SET
WEIGHT
kg
MAX.
LOAD*
kg
L
(type RA )
meter
L
( type RB )
meter
2600
2
205
300* (800)
3 …12
3 … 8
4400
4
240
300* (500)
12 …14
8 …10
6200
6
275
300* (300)
14 … 16
10 …12
