MANUAL VIAVAC-CB4 / 4.1 ( Operator section ) Art. nr. 50504 EN (01-07-2017)
__________________________________________________________________________________________
17
___________________________________________________________________________________
VIAVAC vacuum lifting BV T. + 31 348 449 660 E. info@viavac.com I. www.viavac.com

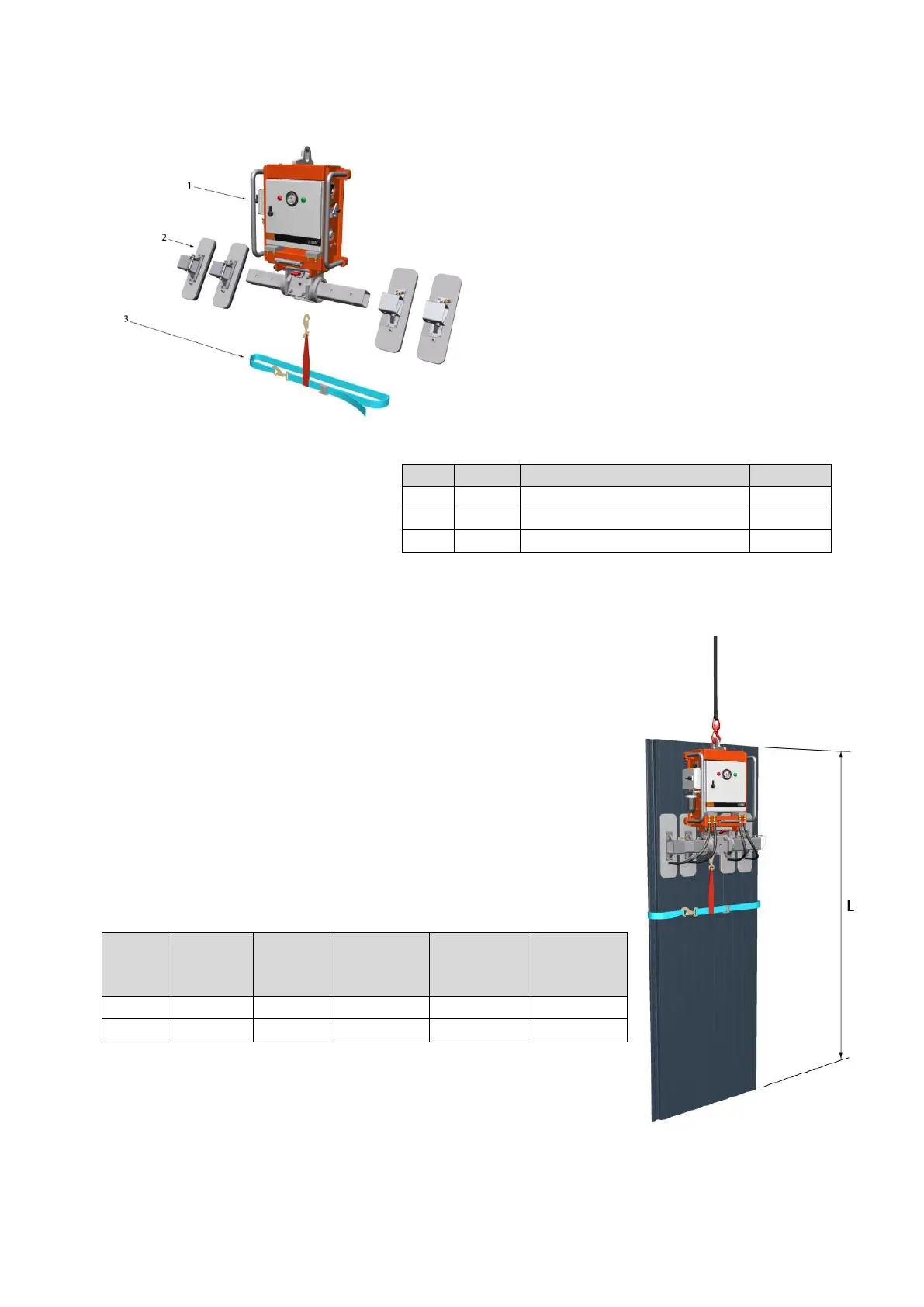

CB4 configuration type: WV
For vertical wall panels up to 12 meter length
* = Other type of suction pads on request.
. . . *= load with 4x100kg pads, ( . . . ) = max. possible load on traverse.
Type WA = wall panels with min.0,5mm skin & PUR/PIR core.
Type WB = wall panels with min. 0,5mm steel skin & mineral wool core
REMARKS
* Panels with a length up to 17 meter are possible with CB configuration type WVK 2900 - 4700.
ITEM
QUAN.
DESCRIPTION
ART. NR
1
1
Vacuum unit CB4
408500
2
2 - 4
Suction pad with suspension
408033*
3
1
Falling safety strap with hook
17004
DIST.
mm
SUCTION
PADS
qty
SET
WEIGHT
kg
MAX.
LOAD
kg
L
(type WA )
meter
L
( type WB )
meter
-
1 set
115
200* (800)
3 …12
3 … 8
-
2 set
130
400* (800)
3 …12
3 … 8
