8. Bass Remote Input Jack
Use to plug in the remote bass controller.
9. Indicator LEDs
When the amplifier is operating correctly the LED will show as blue. When the amplifier is in protection mode the LED will
show as red.
10.Fuses
Please ensure the following fuse rating is used when replacing fuses:
35 amp x 4
11. Speaker Terminal Output
For connection to the speakers. See Application section for wiring examples.
12. Power Connections
Power connections. See Connections section for details on correct connections.

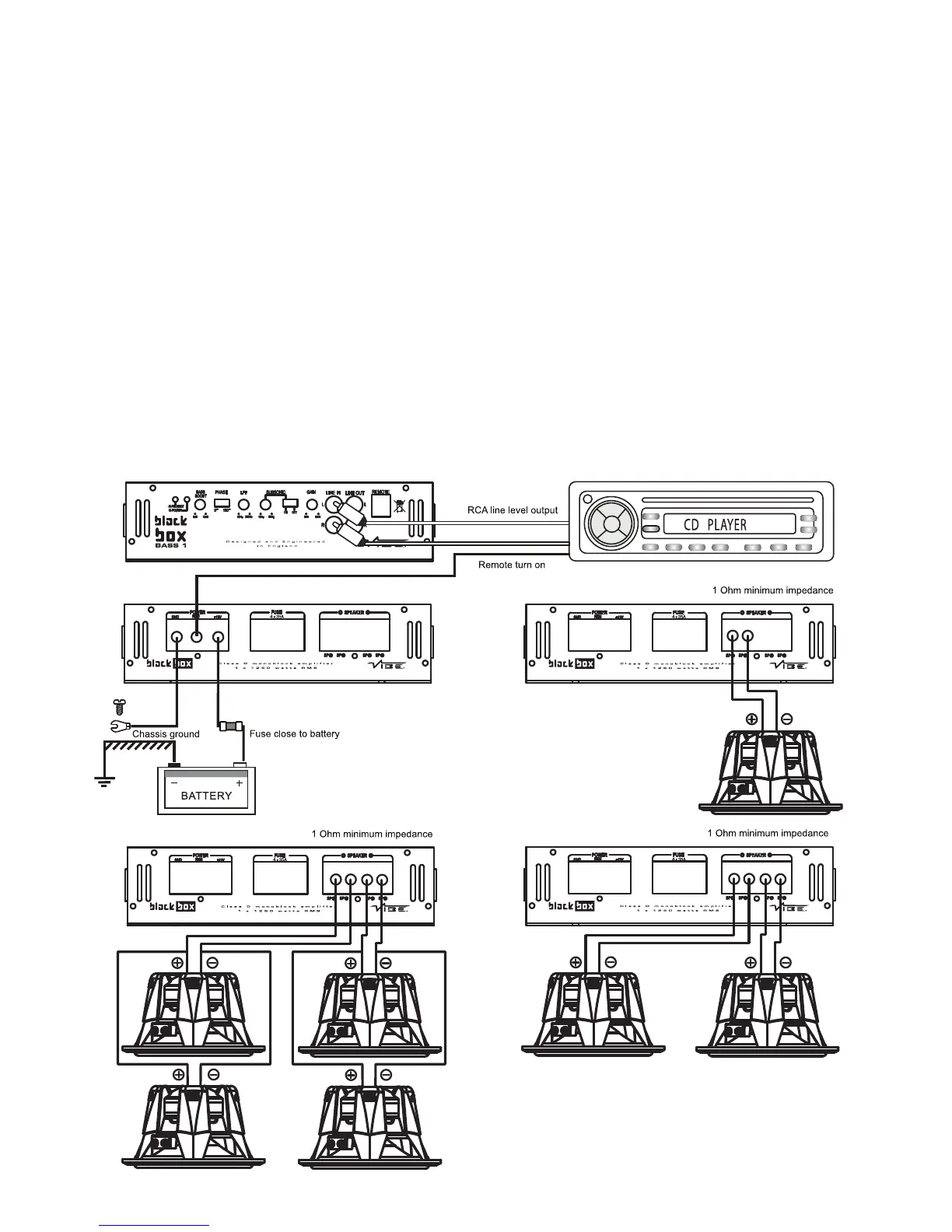

Applications - BlackBox Stereo 4
