Vibration Research VR9500 User Manual

www.VibrationResearch.com • 7

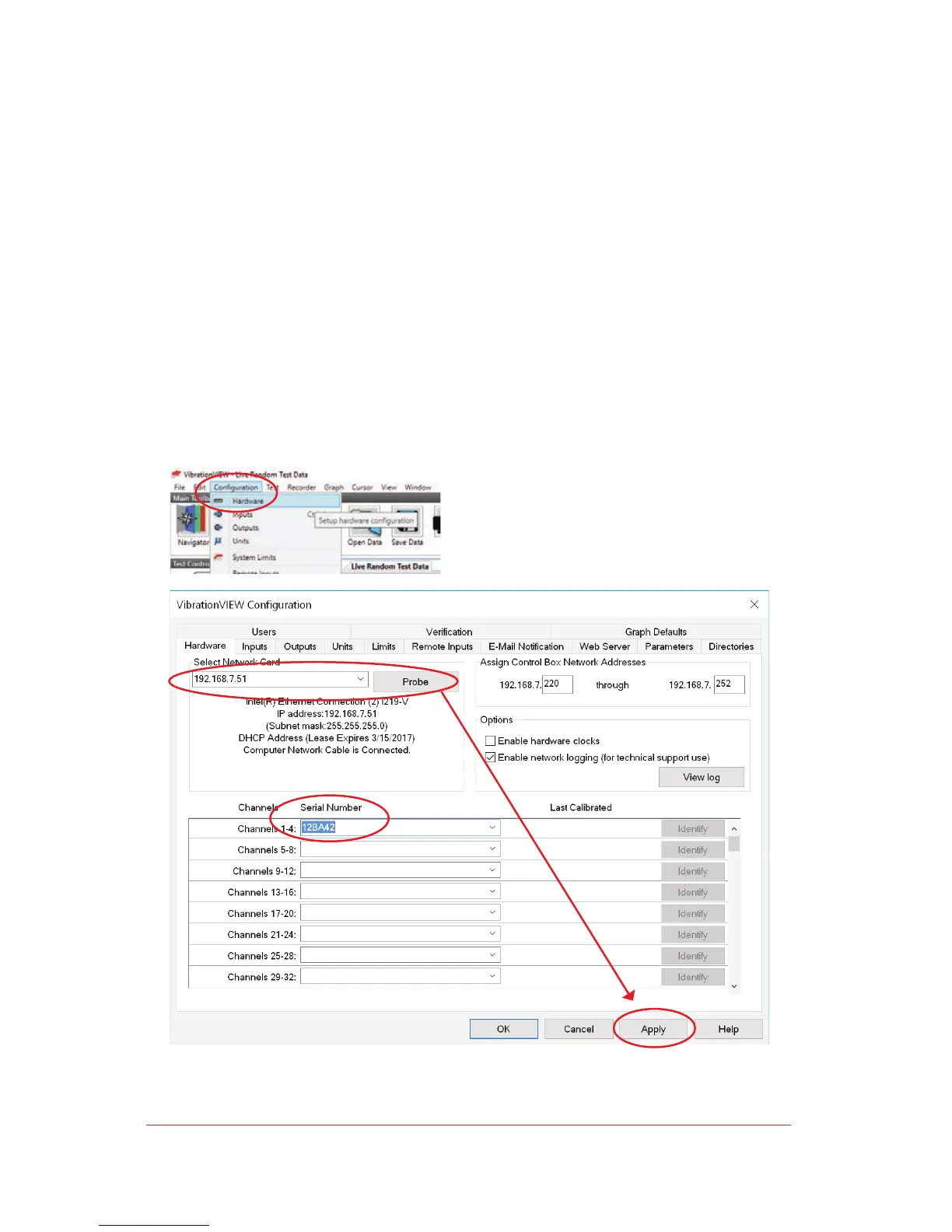

Connecting to VibrationVIEW
VibrationVIEW must be configured to use the appropriate network
connection after the network is setup.
1. Start VibrationVIEW by double-clicking the VibrationVIEW icon on the
desktop. Select Configuration > Hardware from menu command
2. Select the network card previously configured. Typically this will be
192.168.3.10 . Select Probe . Click the Apply button.
3. Your VR9500 serial number will be added to the drop down menu for
channels 1-4 when it initially connects to the computer.
• Select the appropriate VR9500 serial number to configure channels 1-4, and
optionally, channels 5-8, channels 9-12, and 13 through 128 (in blocks of 4 channels).
The VR9500 control boxes are assigned addresses from the range listed in the Control
Boxes Address parameters. This does not need to be changed.
1
3
2
