FEATURES DEFINITIONS
WARNING
Do not operate the product if any component is missing or damaged. Have any missing or
damaged components repaired or replaced.
14

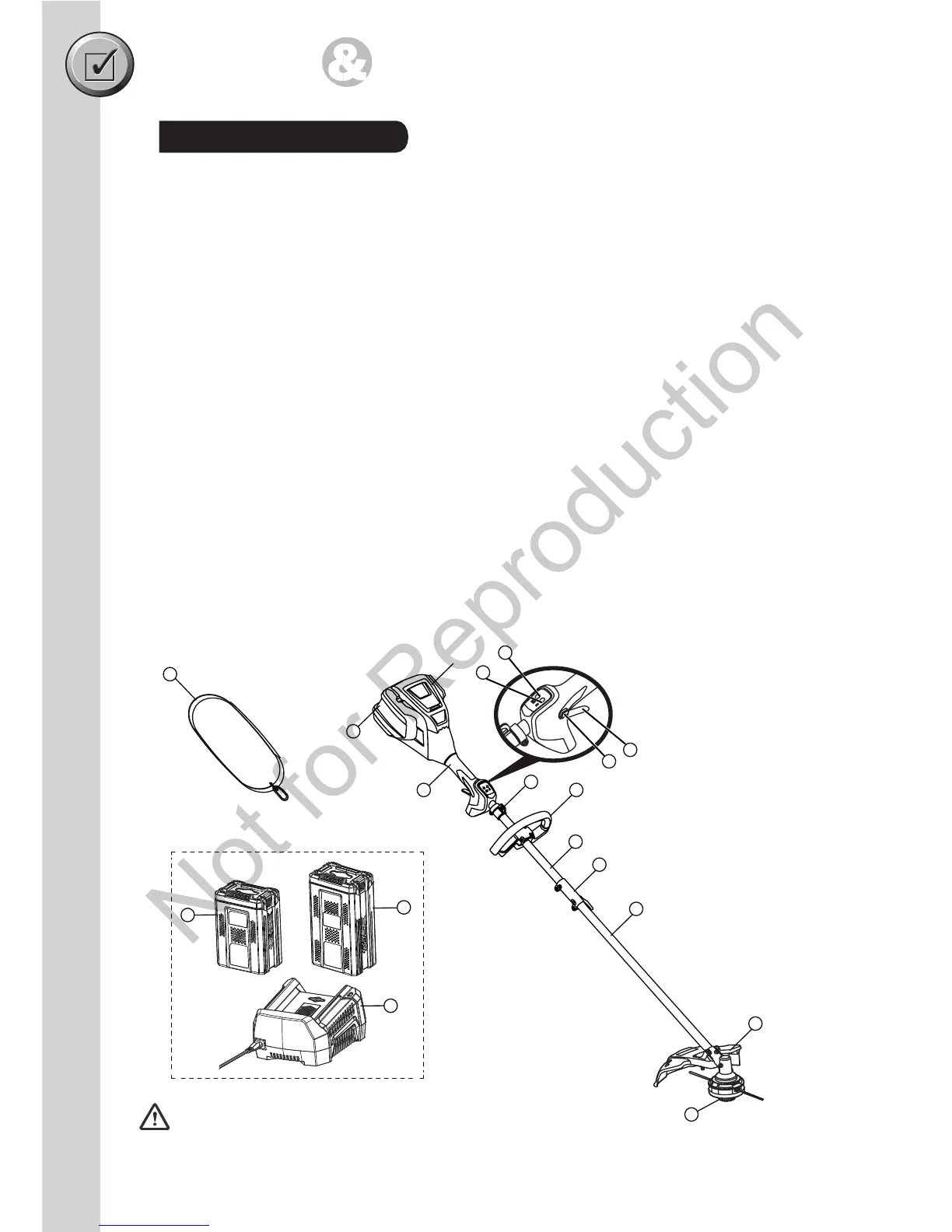

NOTE: Refer to Fig. 1.
Fig 1
1 Battery Port with Battery Release Button
2 Rear Handle
3 ON/OFF Button
4 Trigger Lock
5 Trigger
6 High/Low Speed Button
7 Harness Connection Point
8 Front Handle
9 Upper Shaft
10 Coupling
11 Lower Shaft
12 Guard
13 Bump Head
14 Harness
15 Briggs & Stratton 82V Rapid Charger (not included all models - refer to packaging)
- Grass Trimmer Operator's Manual (not shown)
16 Briggs & Stratton 82V 2Ah Battery (not included all models - refer to packaging)
17 Briggs & Stratton 82V 4Ah Battery (not included all models - refer to packaging)
- Briggs & Stratton 82V Rapid Charger Operator's Manual (if appropriate, not shown)
- Briggs & Stratton 82V Battery Operator's Manual (if appropriate, not shown)
1
4
5
6
3
7
8
9
10
11
12
13
2
15
17
16
