ASSEMBLY PROCEDURES
7

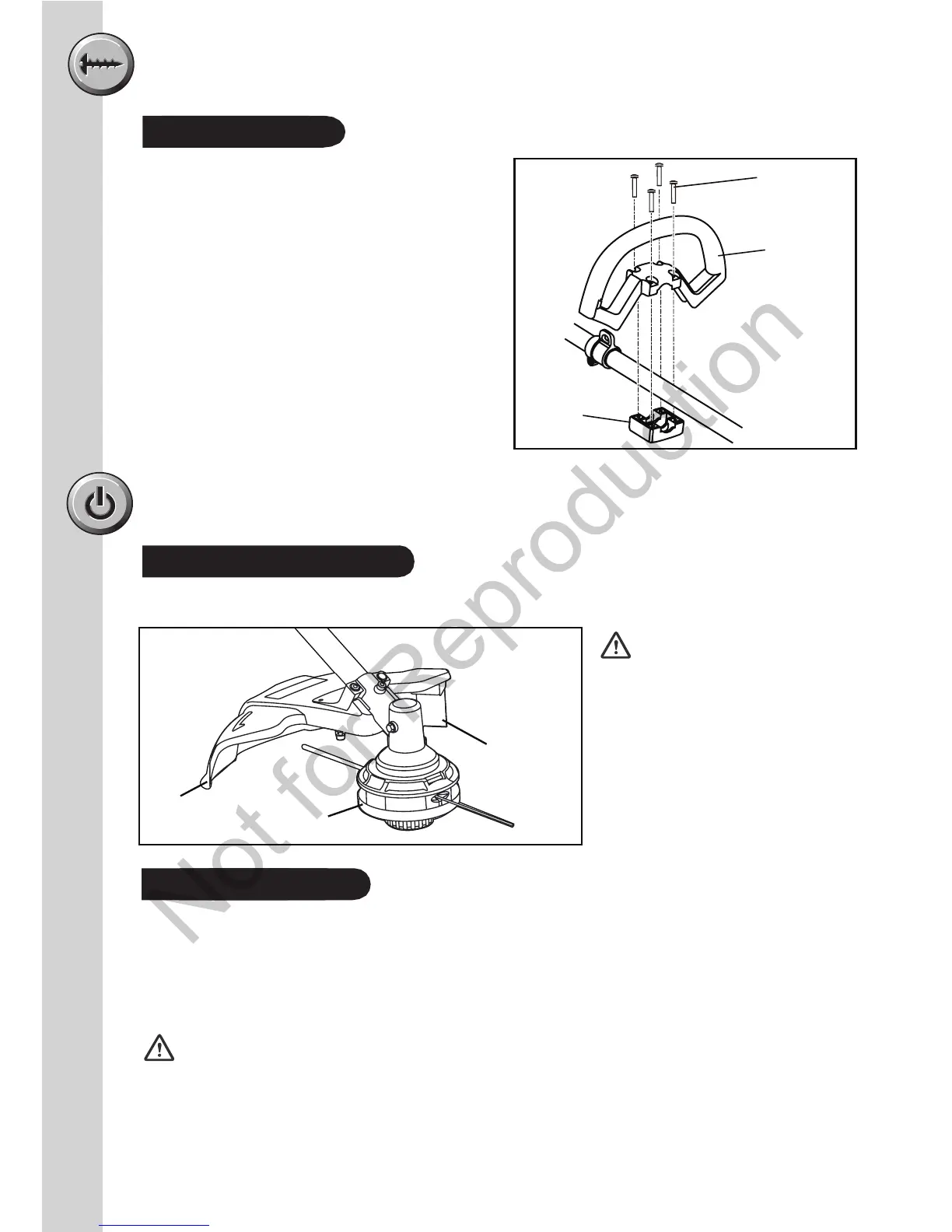

NOTE: Refer to Fig. 5.
• Loosen the four screws (1) in the handle (2)
with a Phillips screwdriver (not included)
• Attach the front handle and lower clamp (3)
on the shaft.
• Adjust handle up or down, if necessary, to
desired operating position.
• Tighten the four screws so that the handle
cannot be rotated on the shaft.
Fitting the Front Handle
The trimmer is equipped with a line
trimming cut-off blade on the trimmer
guard.
Replace the cutting blade when
cut-off efficiency diminishes.
This will maintain best performance.
Line Trimmer Cut-off Blade
1
General Operation
Hold the trimmer with your right hand on the rear handle and your left hand on the
front handle. Keep a firm grip with both hands while in operation. The trimmer should
be held at a comfortable position with the rear handle about hip height. Always
operate the trimmer at full throttle. If debris becomes wrapped around the cutting
head, release the trigger, remove battery and then remove the debris.
• Motor housing may become hot during operation. Do not rest or place your arm,
hand, or any body part against the motor housing during operation.
WARNING
OPERATING INSTRUCTIONS
WARNING
Cut off blade is sharp.
NOTE: Refer to Fig. 6.
Fig 5
Fig 6
2
3
and remove the screws from the handle.
CUT-OFF BLADE
TRIMMER LINE
GUARD
BUMP HEAD
