ASSEMBLY PROCEDURES
6
NOTE: Refer to Fig. 4.
Fitting the Trimmer Guard
• Remove the battery.
• Invert the line trimmer to access the trimmer head.
• Using a Phillips head screwdriver, remove the pre-installed screws (1) from the trimmer head.
• Place the guard (2) on to the trimmer head and slide the guard onto the head by following the
track on the head.
• Align the screw holes on the guard with the screw holes on the trimmer head.

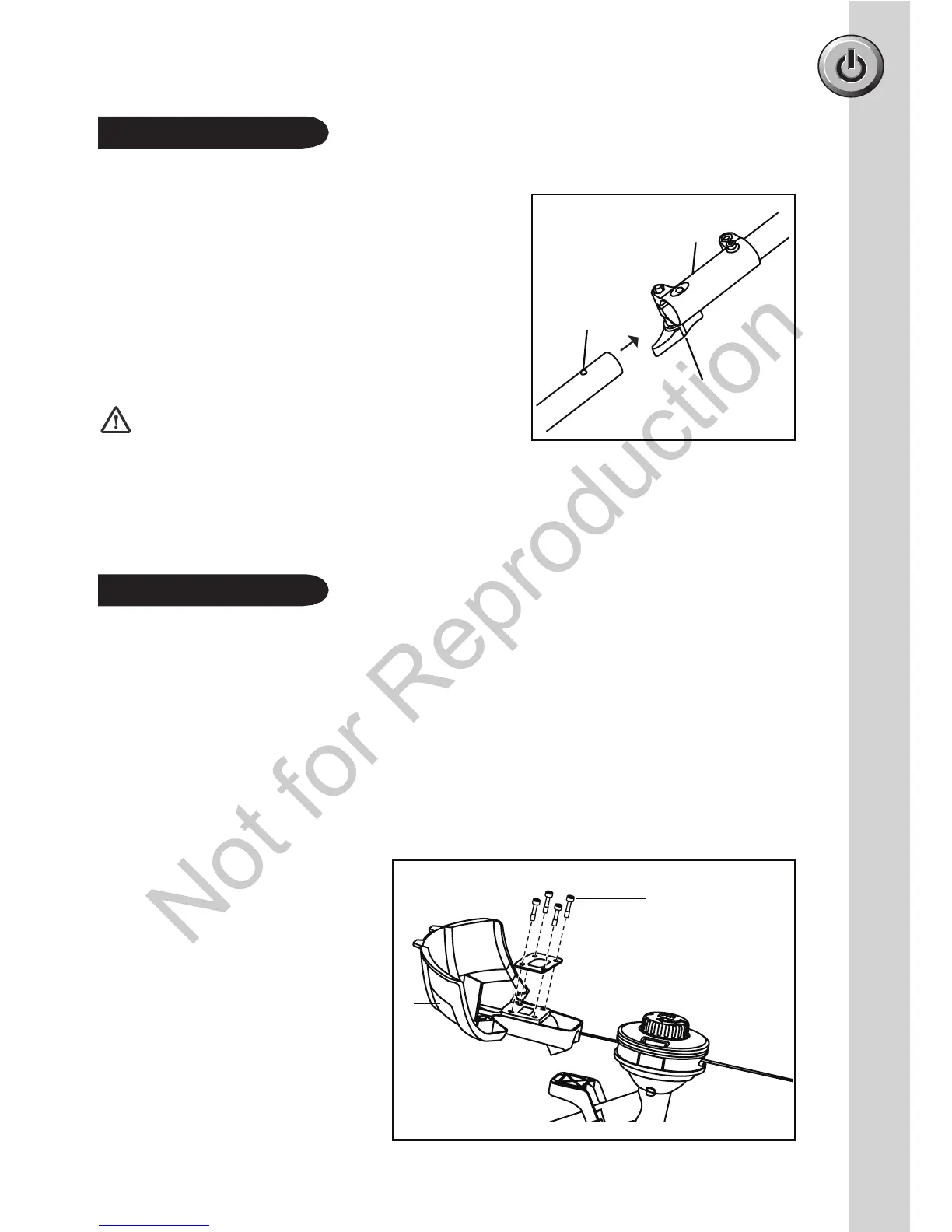

Fitting the Trimmer Shaft
Loosen the coupling knob (2) on the coupling (3).
• Push in the release button (1) located on the lower
tube. Align the button with the positioning hole on
the coupling.
• Slide the lower tube into the upper shaft coupling
until the release button engages in the positioning
hole.
• Tighten the coupling knob firmly.
WARNING
Do not use the grass trimmer with any attachments
unless certified by Victa to operate with this machine.
Do not operate or fit battery before the shaft is completely
assembled.
Take care when fitting and tightening. Beware of
pinch points.
Fig.1
Fig 3
Fig 4
NOTE: Refer to Fig. 3.
3
2
1
• Insert the screws into the trimmer head, fastening the guard in place.
•
Before commencing this assembly, remove battery from
product - if inserted.
Before commencing this assembly, remove battery from product - if inserted.
2
1
