ASSEMBLY PROCEDURES

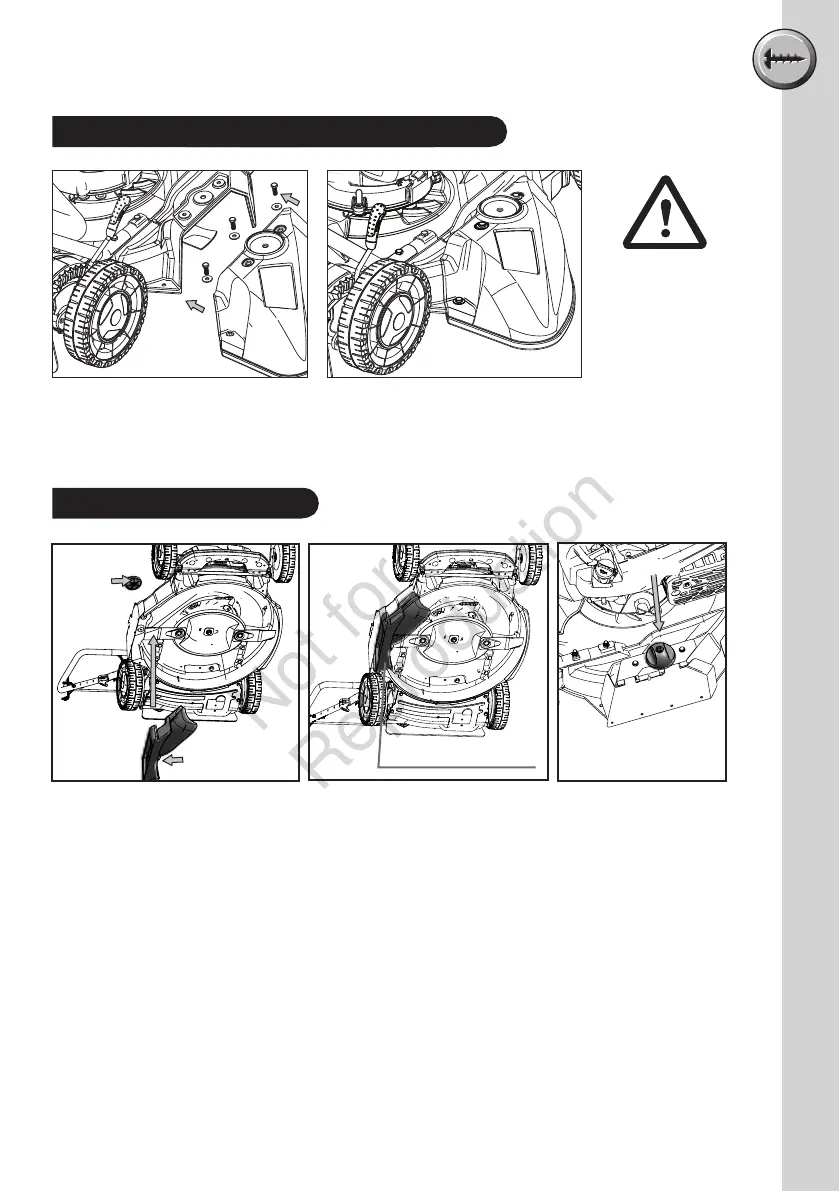

1. Mulch plug has to be inserted in position as per figure (C).
2. Figure (D) shows the mulch plug fitted correctly.
3. Figure (E) shows the knob in position.
Mulching Plug
E
KNOB
C D
Knob
Mulch Plug
Mulch Plug position
1. Slide the chute over the base plate as shown in figure (A),
2. Fit the bolts and washers (3 off) as per figure (A).
3. Figure (B) shows the chute fitted to the mower correctly.
Fitting the Optional Ejector Chute (Kit No. CH86895AW)
A B
Side ejector
chute must
be fitted at
all times,
even when
mulching!
