V/CTA

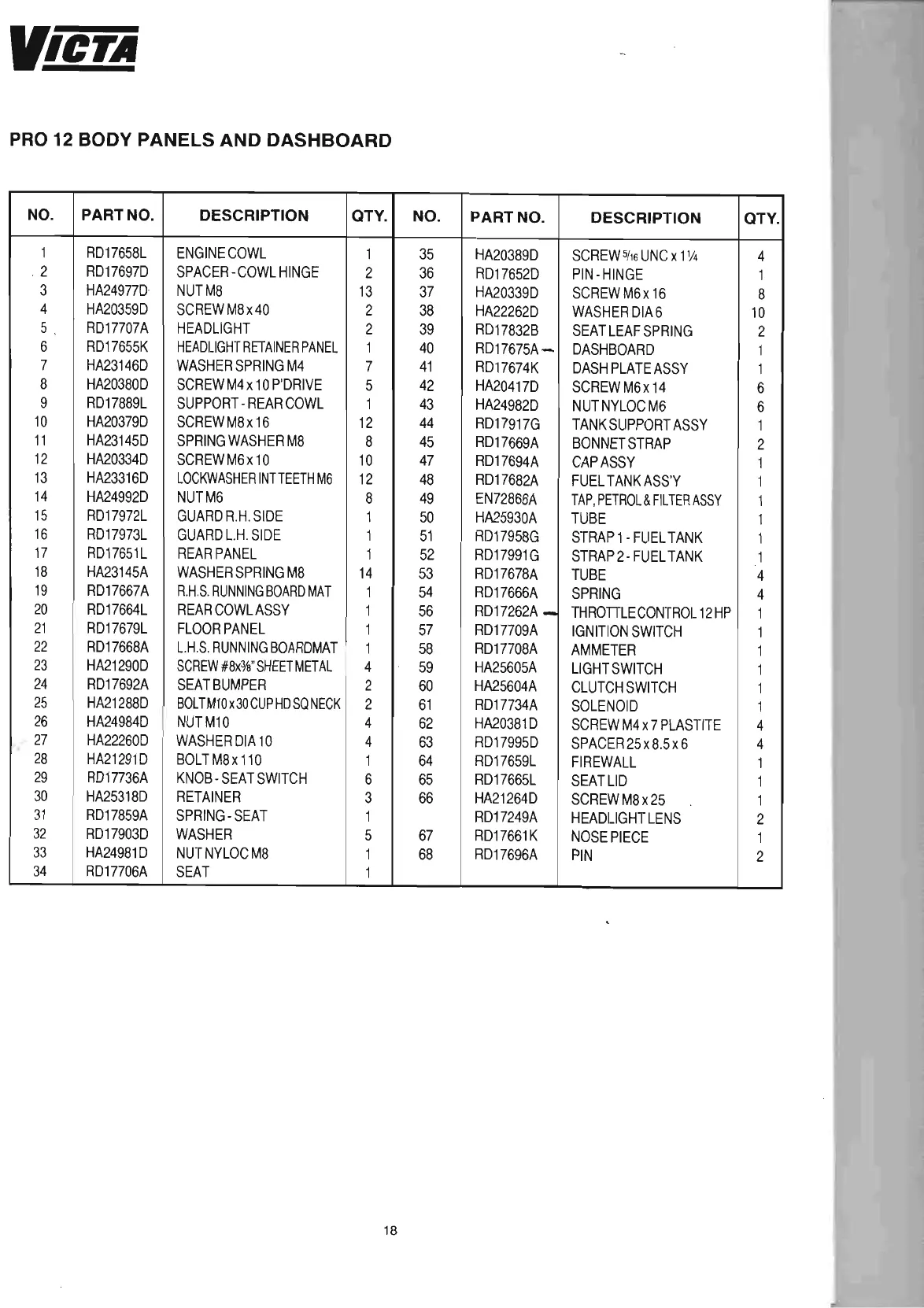

PRO 12 BODY PANELS AND DASHBOARD
NO.
PART NO.
DESCRIPTION
OTY.
NO.
PART NO.
DESCRIPTION
OTY.
1
RD17658L
ENGINECOWL
1
35
HA20389D
SCREW 5 116 UNC X1 V4
4
. 2
RD17697D
SPACER-COWL HINGE
2
36
RD17652D
PIN-HINGE
1
3
HA24977D
NUTM8
13
37 HA20339D
SCREWM6x 16
8
4
HA20359D
SCREWM8x40
2
38
HA22262D
WASHERDIA6
10
5
RD17707A
HEADLIGHT
2
39
RD17832B
SEAT LEAF SPRING
2
6
RD17655K
HEADLIGHT RETAINER PANEL
1
40
RD17675A-
DASHBOARD
1
7
HA23146D
WASHER SPRING M4
7 41
RD17674K
DASH PLATE ASSY
1
8
HA20380D
SCREW M4 X10P 'DRIVE
5 42 HA20417D
SCREWM6x14
6
9
RD17889L
SUPPORT· REAR COWL
1
43 HA24982D
NUTNYLOCM6
6
10
HA20379D
SCREWM8x16
12
44
RD17917G
TANKSUPPORT ASSY
1
11
HA23145D
SPRING WASHER M8
8 45
RD17669A
BONNET STRAP
2
12
HA20334D
SCREWM6x10
10
47
RD17694A
CAP ASSY
1
13
HA23316D
LOCKWASHER INTTEETH M6
12
48 RD17682A
FUEL TANK ASS'Y
1
14
HA24992D
NUTM6
8 49 EN72866A
TAP , PETROL & FILTER ASSY
1
15 RD17972L
GUARD R.H. SIDE
1
50 HA25930A
TUBE
1
16
RD17973L
GUARD L.H . SIDE
1
51
RD17958G
STRAP1-FUELTANK
1
17
RD17651L
REAR PANEL
1
52
RD17991G
STRAP2-FUELTANK
1
18
HA23145A
WASHER SPRING M8
14
53 RD17678A
TUBE
4
19 RD17667A
R.H .S . RUNNING BOARD MAT
1 54
RD17666A
SPRING
4
20 RD17664L
REAR COWL ASSY
1
56
RD17262A - THROTILECONTROL 12HP
1
21
RD17679L
FLOOR PANEL
1
57
RD17709A
IGNITION SWITCH
1
22
RD17668A
L.H .S. RUNNING BOARDMAT
1
58 RD17708A
AMMETER
1
23
HA21290D
SCREW #8x %" SHEET METAL
4
59
HA25605A
LIGHT SWITCH
1
24
RD17692A
SEATBUMPER
2
60
HA25604A
CLUTCH SWITCH
1
25
HA21288D
BOLT M1 0x 30 CUP HD sa NECK
2
61 RD17734A
SOLENOID
1
26 HA24984D
NUTM10
4
62
HA20381D
SCREW M4 X7 PLAS TITE
4
27
HA22260D
WASHERDIA 10
4
63
RD17995D
SPACER25x8.5x6
4
28 HA21291D
BOLTM8x 110
1
64 RD17659L
FIREWALL
1
29 RD17736A
KNOB - SEAT SWITCH
6
65
RD17665L
SEAT LID
1
30 HA25318D
RETAINER
3
66
HA21264D
SCREWM8x25
1
31
RD17859A
SPRING-SEAT
1
RD17249A
HEADLIGHT LENS
2
32 RD17903D
WASHER
5
67
RD17661K
NOSEPIECE
1
33 HA24981D
NUT NYLOC M8
1
68 RD17696A
PIN
2
34 RD17706A
SEAT
1
18
