Victa PRO 16 - 40 Cutter Deck Complete Parts List

",eTA

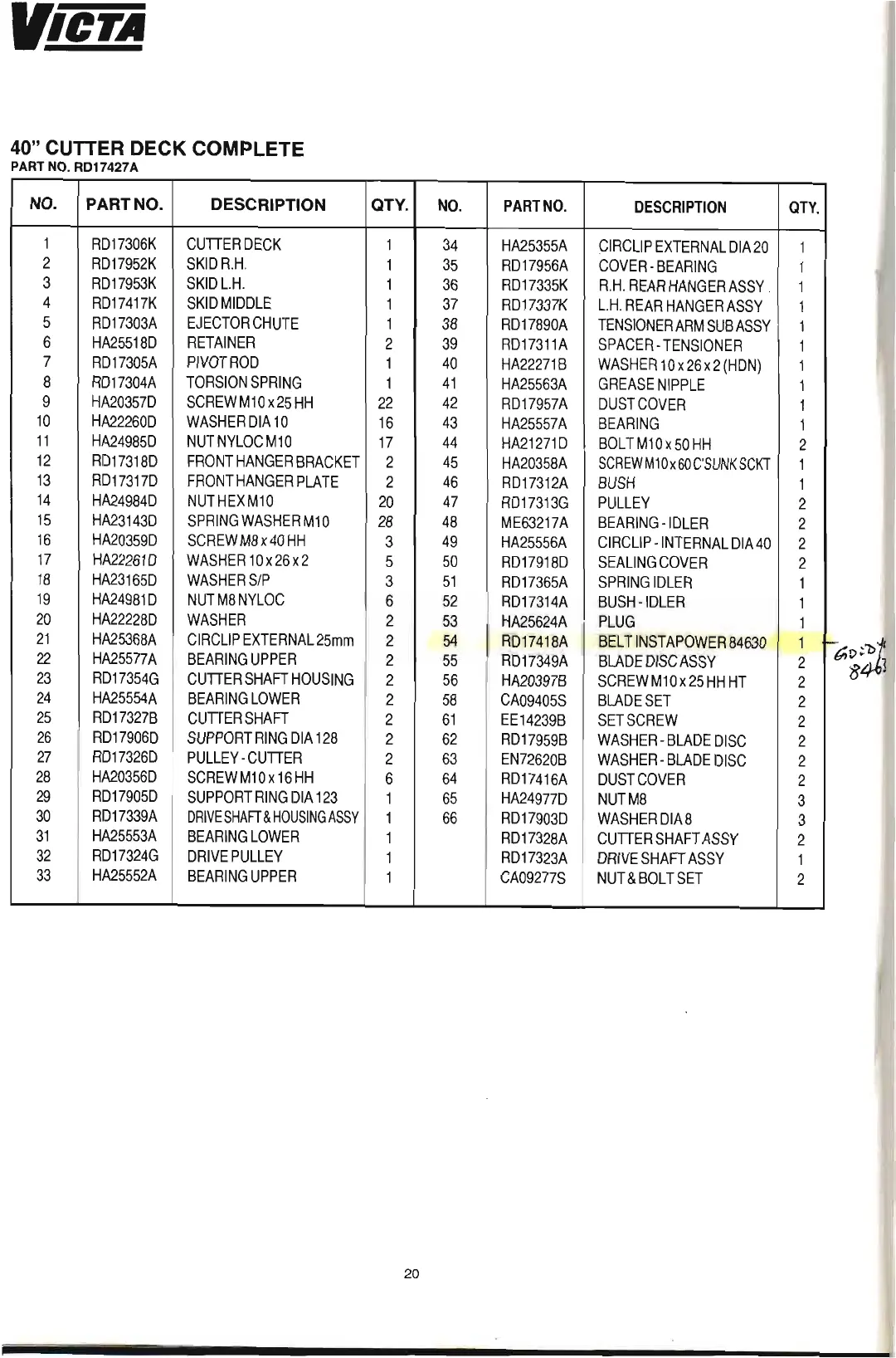

40" CUTTER DECK COMPLETE
PART NO. RD17427A
NO. PART NO. DESCRIPTION QTY. NO. PART NO.
DESCRIPTION
QTY.
1 RD17306K CUTIERDECK 1
34
HA25355A
CIRCLIP EXTERNAL DIA 20
1
2
RD17952K SKIDR.H .
1 35
RD17956A COVER - BEAR ING
1
3
RD17953K
SKIDL.H . 1
36
RD 17335K R.H. REAR HANGER ASSY .
1
4
RD17417K
SKID MIDDLE 1 37 RD 17337K
L.H . REAR HANGER ASSY
1
5
RD17303A EJECTOR CHUTE 1
38
RD17890A TENSIONERARM S UB ASSY
1
6
HA25518D RETAINER
2 39 RD17311A SPACER - TENSIONER
1
7
RD17305A
PIVOT ROD
1 40 HA22271B WASHER 10 x26x2 (HDN)
1
8
RD17304A
TORSION SPRING
1 41 HA25563A GREASE NIPPLE
1
9
HA20357D SCREWM10x25HH 22 42
RD17957A
DUST COVER
1
10 HA22260D WASHER DIA 10
16 43 HA25557A BEARING
1
11 HA24985D NUTNYLOCM10 17
44
HA21271D BOLTM10x50HH
2
12 RD17318D FRONT HANGER BRACKET 2 45
HA20358A
SCREWM10x60C 'SUNKSCKT
1
13 RD17317D FRONT HANGER PLATE
2 46 RD17312A BUSH
1
14
HA24984D NUTHEXM 10
20
47
RD17313G PULLEY 2
15
HA23143D SPRINGWASHERM10 28
48 ME63217A BEARI NG - IDLER 2
16 HA20359D SCREW M8 x40 HH
3
49
HA25556A CIRCLIP - INTERNAL DIA40
2
17 HA22261D WASHER 10x26x2
5 50
RD17918D SEALING COVER 2
18
HA23165D WASHER SIP
3
51 RD17365A SPRING IDLER 1
19 HA24981D NUTM8NYLOC
6 52 RD17314A BUSH-IDLER
1
20
HA22228D WASHER 2
53 HA25624A PLUG 1
21
HA25368A CIRCLIP EXTERNAL 25mm 2
54 RD17418A BELT INSTAPOWER 84630 1
22
HA25577A
BEARING UPPER 2
55 RD17349A BLADE DISC ASSY
2
23
RD17354G CUTIER SHAFT HOUSING
2 56 HA20397B
SCREW M1 0x25 HH HT 2
24
HA25554A BEARING LOWER 2
58 CA09405S BLADE SET 2
25 RD17327B CUTIERSHAFT
2 61 EE14239B SETSCREW
2
26
RD 17906D SUPPORT RING DIA 128 2 62
RD17959B WASHER - BLADE DISC 2
27 RD17326D PULLEY - CUTIER
2
63
EN72620B WASHER - BLADE DISC
2
28 HA20356D SCREW M1 0x 16 HH
6 64 RD17416A DUST COVER 2
29 RD17905D SUPPORT RING DIA 123
1 65
HA24977D
NUTM8
3
30
RD17339A
DRIVE SHAFT & HOUSING ASSY 1
66 RD17903D WASHERDIA8
3
31 HA25553A BEARING LOWER
1 RD17328A CUTIER SHAFT ASSY
2
32
RD17324G
DRIVE PULLEY
1 RD17323A DRIVE SHAFT ASSY 1
33
HA25552A
BEARING UPPER 1
CA09277S NU T& BOLT SET 2
-
20
