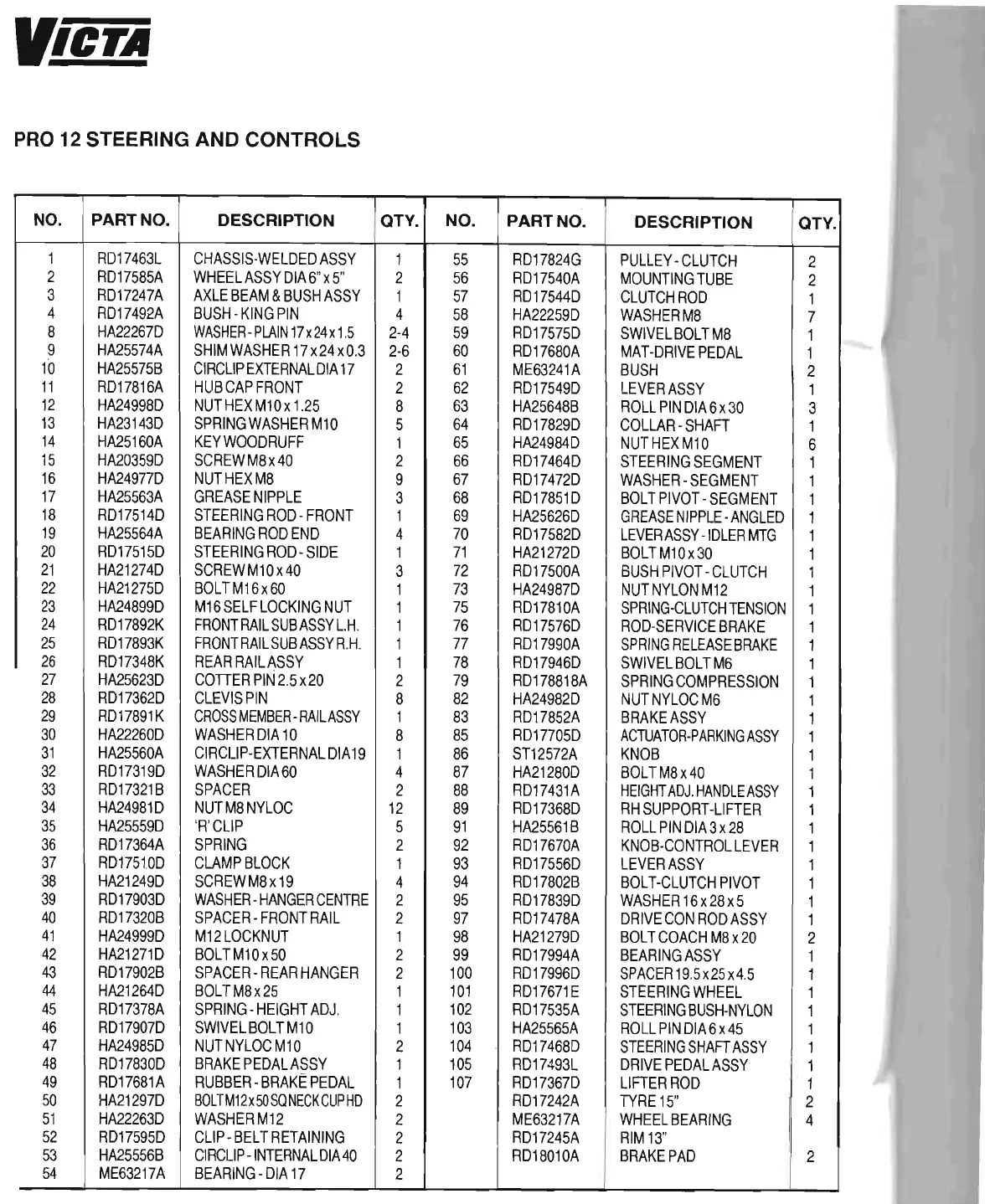

PRO 12 STEERING AND CONTROLS
NO. PART NO.
DESCRIPTION
QTV. NO.
PART NO.
DESCRIPTION
QTV.
1 RD17463L
CHASSIS·WELDED ASSY
1
55
RD17824G
PULLEY - CLUTCH
2
2
RD17585A
WHEEL ASSY DIA 6"x5"
2
56
RD17540A
MOUNTING TUBE
2
3
RD17247A
AXLE BEAM & BUSH ASSY
1 57
RD17544D
CLUTCH ROD
1
4
RD17492A BUSH - KING PIN
4
58
HA22259D
WASHERM8
7
8
HA22267D
WASHER -PLAIN 17x24x 1.5 2-4
59 RD17575D
SWIVEL BOLT M8
1
9
HA25574A
SHIM WASHER 17x24xO .3
2-6
60
RD17680A
MAT-DRIVE PEDAL
1
10
HA25575B
CIRCLIPEXTERNALDIA 17
2 61
ME63241A
BUSH
2
11
RD17816A HUB CAP FRONT
2 62 RD17549D
LEVER ASSY
1
12
HA24998D NUT HEX M10x 1.25
8 63 HA25648B
ROLLPINDIA6x30
3
13
HA23143D
SPRINGWASHERM10
5
64
RD17829D
COLLAR - SHAFT
1
14
HA25160A
KEY WOODRUFF
1 65 HA24984D
NUTHEXM10
6
15
HA20359D
SCREWM8x40
2 66 RD17464D
STEERING SEGMENT
1
16 HA24977D
NUTHEXM8
9 67 RD17472D
WASHER - SEGMENT
1
17
HA25563A GREASE NIPPLE
3 68
RD17851D
BOLT PIVOT - SEGMENT
1
18 RD17514D
STEERING ROD - FRONT
1
69
HA25626D
GREASE NIPPLE - ANGLED
1
19
HA25564A
BEARING ROD END
4 70 RD17582D
LEVER ASSY -IDLER MTG
1
20 RD17515D
STEERING ROD - SIDE
1 71
HA21272D
BOLTM10x30
1
21
HA21274D
SCREWM10x40
3
72
RD17500A
BUSH PIVOT - CLUTCH
1
22 HA21275D
BOLTM16x60
1 73 HA24987D
NUT NYLON M12
1
23 HA24899D
M16 SELF LOCKING NUT
1 75 RD17810A
SPRING-CLUTCH TENSION
1
24 RD17892K
FRONT RAIL SUB ASSY L.H .
1 76
RD17576D
ROD·SERVICE BRAKE
1
25 RD17893K
FRONTRAILSUBASSYR.H.
1 77
RD17990A
SPRING RELEASE BRAKE
1
26
RD17348K
REAR RAILASSY
1 78 RD17946D
SWIVEL BOLT M6
1
27
HA25623D
corrtn PIN 2.5x20
2 79
RD178818A
SPRING COMPRESSION
1
28 RD17362D
CLEVIS PIN
8
82
HA24982D
NUTNYLOCM6
1
29 RD17891K
CROSS MEMBER - RAIL ASSY 1
83 RD17852A
BRAKE ASSY
1
30
HA22260D
WASHERDIA 10
8
85 RD17705D
ACTUATOR-PARKING ASSY
1
31 HA25560A
CIRCLlP·EXTERNAL DIA 19
1
86
ST12572A
KNOB
1
32 RD17319D WASHERDIA60
4
87
HA21280D
BOLTM8x40
1
33 RD17321B
SPACER
2
88
RD17431A
HEIGHT ADJ. HANDLEASSY
1
34 HA24981D
NUTM8NYLOC
12
89
RD17368D
RH SUPPORT-LIFTER
1
35 HA25559D 'R'C LI P
5
91 HA25561B
ROLL PIN DIA 3x 28
1
36 RD17364A SPRING
2
92
RD17670A
KNOB-CONTROL LEVER
1
37
RD1751.0D
CLAMP BLOCK
1 93 RD17556D
LEVER ASSY
1
38 HA21249D
SCREWM8x19
4
94
RD17802B
BOLT-CLUTCH PIVOT
1
39 RD17903D
WASHER-HANGER CENTRE
2
95
RD17839D
WASHER16x28x5
1
40 RD17320B
SPACER - FRONT RAIL
2 97 RD17478A
DRIVE CON ROD ASSY
1
41
HA24999D M12LOCKNUT
1 98 HA21279D
BOLT COACH M8 x20
2
42
HA21271D
BOLTM10x50
2 99 RD17994A
BEARING ASSY
1
43
RD17902B
SPACER-REAR HANGER
2
100 RD17996D
SPACER 19.5x25x4 .5
1
44 HA21264D
BOLTM8x25
1
101
RD17671 E
STEERING WHEEL
1
45
RD17378A
SPRING - HEIGHT ADJ.
1
102
RD17535A
STEERING BUSH-NYLON
1
46 RD17907D SWIVEL BOLT M1 0
1
103
HA25565A
ROLL PIN DIA 6x 45
1
47
HA24985D
NUT NYLOC M1 0
2
104
RD17468D
STEERING SHAFT ASSY
1
48
RD17830D BRAKE PEDALASSY
1 105 RD17493L
DRIVE PEDAL ASSY
1
49 RD17681A RUBBER-BRAKE PEDAL
1
107
RD17367D LIFTER ROD
1
50 HA21297D
BOLTM12x50SQNECKCUPHD
2
RD17242A
TYRE 15"
2
51 HA222630 WASHERM12
2
ME63217A
WHEEL BEARING
4
52 RD17595D
CLIP - BELT RETAINING
2
RD17245A
RIM13"
53 HA25556B CIRCLIP -INTERNAL DIA40
2
RD18010A
BRAKE PAD
2
54 ME63217A BEARING - DIA 17
2
