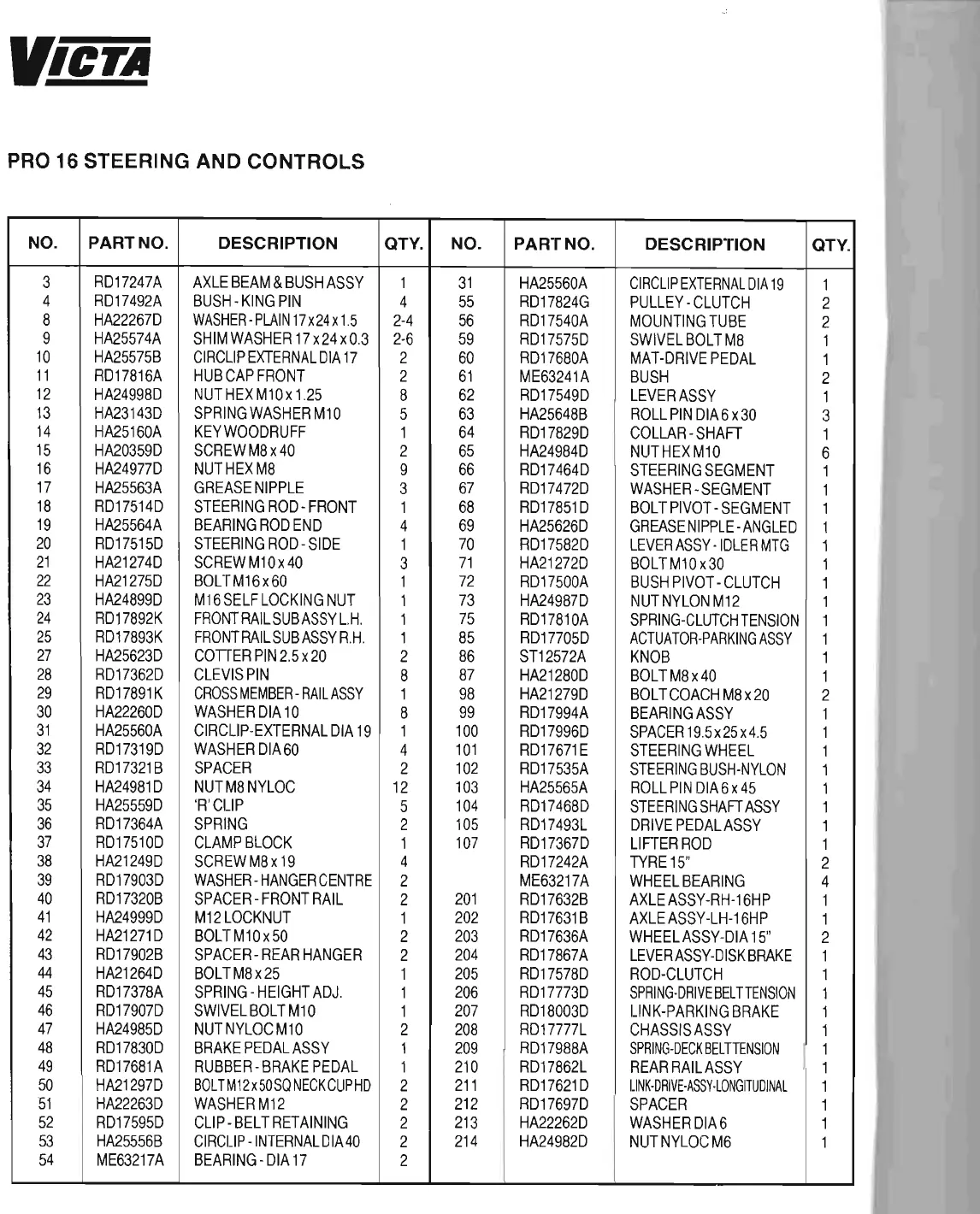

PRO 16 STEERING AND CONTROLS
NO.
PARTNO. DESCRIPTION
OTY.
NO.
PARTNO.
DESCRIPTION
OTY.
3
RD17247A
AXLE BEAM & BUSH ASSY
1 31
HA25560A
CIRCLIP EXTERNAL DIA 19
1
4
RD17492A BUSH· KING PIN
4 55 RD17824G
PULLEY-CLUTCH
2
8
HA22267D WASHER - PLAIN 17x24x 1.5
2-4 56 RD17540A
MOUNTING TUBE
2
9
HA25574A SHIM WASHER 17x24xO .3
2-6 59
RD17575D
SWIVEL BOLT M8
1
10 HA25575B
CIRCLIP EXTERNAL DIA 17
2
60
RD17680A MAT-DRIVE PEDAL
1
11
RD17816A HUB CAP FRONT
2
61
ME63241A
BUSH
2
12
HA24998D NUTHEXM10x1.25
8
62
RD17549D
LEVER ASSY
1
13
HA23143D SPRING WASHER M1 0
5
63
HA25648B
ROLLPINDIA6x30
3
14
HA25160A KEY WOODRUFF
1
64
RD17829D
COLLAR - SHAFT
1
15
HA20359D SCREWM8x40
2
65
HA24984D
NUTHEXM10
6
16
HA24977D NUTHEXM8
9
66
RD17464D
STEERING SEGMENT
1
17
HA25563A GREASE NIPPLE
3
67
RD17472D
WASHER· SEGMENT
1
18
RD17514D STEERING ROD - FRONT
1 68 RD17851D
BOLT PIVOT - SEGMENT
1
19 HA25564A
BEARING ROD END
4
69
HA25626D
GREASENIPPLE-ANGLED
1
20 RD17515D
STEERING ROD· SIDE
1
70
RD17582D
LEVER ASSY -IDLER MTG
1
21
HA21274D
SCREWM10x40
3
71
HA21272D
BOLTM10x30
1
22 HA21275D
BOLTM16x60
1
72
RD17500A
BUSH PIVOT - CLUTCH
1
23
HA24899D
M16 SELF LOCKING NUT
1 73 HA24987D
NUT NYLON M12
1
24
RD17892K
FRONT RAIL SUBASSY L.H .
1
75
RD17810A
SPRING-CLUTCH TENSION
1
25
RD17893K
FRONTRAILSUBASSYR.H .
1 85
RD17705D
ACTUA TOR·PARKING ASSY
1
27
HA25623D corrtn PIN 2.5x20
2
86
ST12572A
KNOB
1
28
RD17362D CLEVISPIN
8
87
HA21280D
BOLTM8x40
1
29
RD17891K
CROSS MEMBER· RAIL ASSY
1 98 HA21279D
BOLT COACH M8 x20
2
30
HA22260D WASHER DIA 10
8
99
RD17994A
BEARINGASSY
1
31
HA25560A CIRCLIP-EXTERNAL DIA 19
1 100
RD17996D
SPACER 19 .5x 25 x 4.5 1
32 RD17319D
WASHER DIA60
4
101 RD17671E
STEERING WHEEL
1
33 RD17321 B SPACER
2 102 RD17535A
STEERING BUSH-NYLON
1
34
HA24981D NUTM8NYLOC
12
103
HA25565A
ROLL PIN DIA 6x45
1
35 HA25559D 'R'CLIP
5
104 RD17468D
STEERING SHAFT ASSY
1
36
RD17364A
SPRING
2 105 RD17493L
DRIVE PEDAL ASSY
1
37 RD17510D
CLAMP BLOCK
1
107 RD17367D
LIFTER ROD
1
38
HA21249D
SCREWM8x 19
4 RD17242A
TYRE 15"
2
39
RD17903D
WASHER· HANGER CENTRE
2
ME63217A
WHEEL BEARING
4
40 RD17320B
SPACER - FRONT RAIL
2
201 RD17632B
AXLE ASSY-RH-16HP
1
41
HA24999D
M12LOCKNUT
1
202 RD17631B
AXLE ASSY -LH-16H P
1
42
HA212710
BOLTM10x50
2 203
RD17636A
WHEELASSY-DIA 15"
2
43 RD17902B
SPACER-REAR HANGER
2
204 RD17867A
LEVERASSY-DISKBRAKE
1
44
HA21264D
BOLTM8x25
1
205 RD17578D
ROD-CLUTCH
1
45 RD17378A
SPRING - HEIGHT ADJ.
1 206
RD17773D
SPRING ·DRIVE BEL TTENSION
1
46
RD17907D
SWIVEL BOLT M1 0
1
207 RD18003D
LINK-PARKING BRAKE
1
47 HA24985D
NUTNYLOCM10
2 208
RD17777L
CHASSISASSY
1
48
RD17830D BRAKEPEDALASSY
1 209 RD17988A
SPRING ·DECK BEL TTENSION
1
49
RD17681A RUBBER -BRAKE PEDAL
1 210 RD17862L
REAR RAIL ASSY
1
50
HA21297D
BOLTM12x50SQ NECKCUPHD
2
211 RD17621D
L1NK·DRIVE·ASSY ·LONGITUDINAL 1
51 HA22263D
WASHERM12
2
212
RD17697D
SPACER
1
52
RD17595D CLIP - BELT RETAINING
2
213 HA22262D
WASHERDIA6
1
53 HA25556B
CIRCLIP -INTERNALDIA40
2
214 HA24982D
NUTNYLOCM6
1
54
ME63217A BEARING· DIA 17
2
