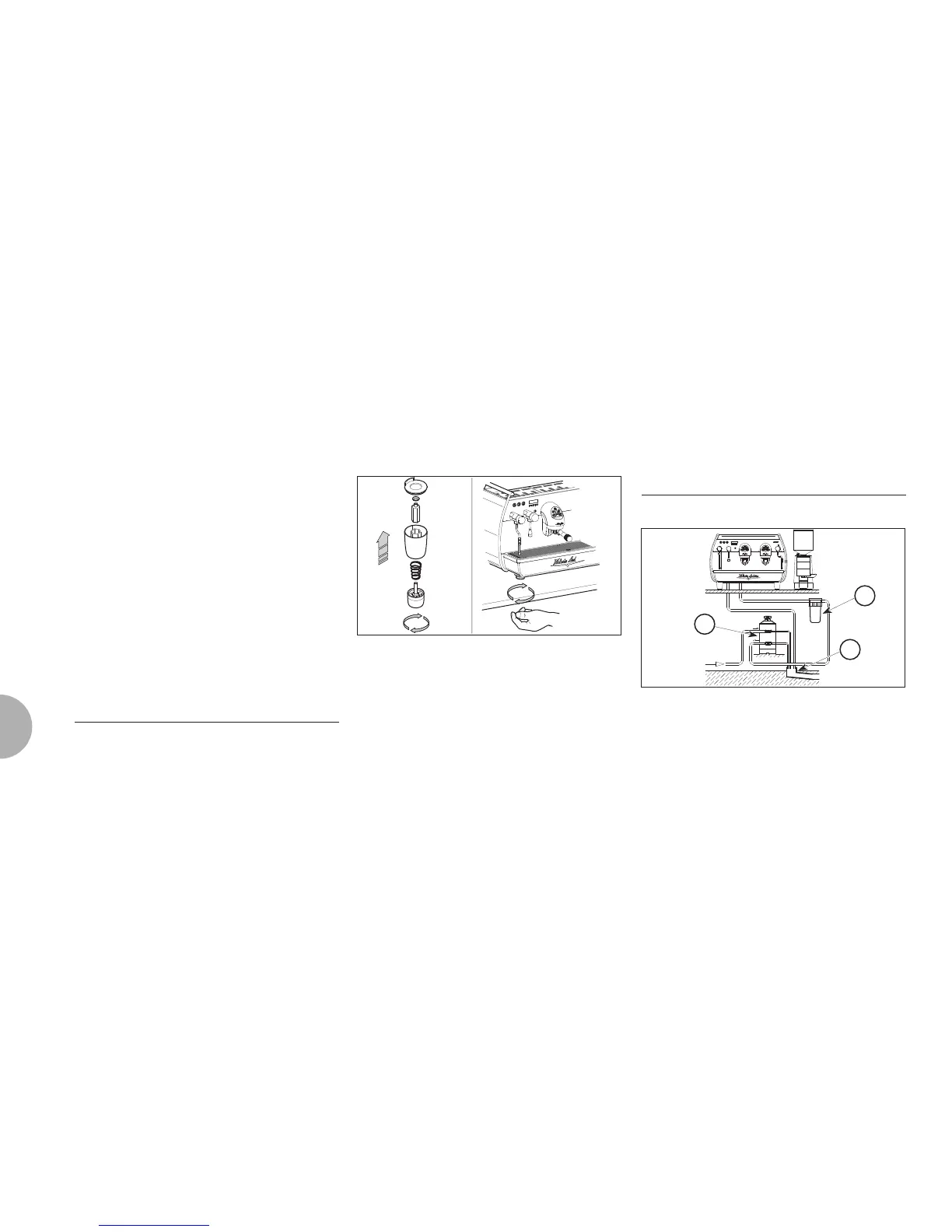

Fig. 3

Fig. 4

After unpacking, assess that the machine and its

accessories unit are complete, then proceed as fol-

lows:

• place the machine so that it is level on a flat sur-

face;

• assemble its supporting feet by inserting the insert

into the cylindrical unit (see Fig. 3);

• twist the rubber foot into the screw thread inside

the unit (see Fig. 3);

• screw the whole assembled unit into the allotted

setting for the machine’s adjustable feet;

• level the machine by regulating the adjustable

feet;

E฀

NOTE

The unit grooves have to face upwards, as shown in the

following illustration.

It is advisable to install a softener (1) and then a mesh

filter (2) on the external part of the plumbing system, dur-

ing preliminaries and after levelling the machine.

In this way impurities like sand, particles of calcium, rust

etc will not damage the delicate graphite surfaces and

durability will be guaranteed.

Following these operations, connect the plumbing sys-

tems as illustrated in the following figure.

฀

WARNING

Avoid throttling in the connecting tubes.

Assess that the drain pipe (3) is able to eliminate waste.

KEY

0 Softener

1 Mesh filter

2 Drain Ø 50 mm

4. INSTALLATION AND PRELIMINARY OPERATIONS

Victoria Arduino ADONIS 2 gruoups User Manual
