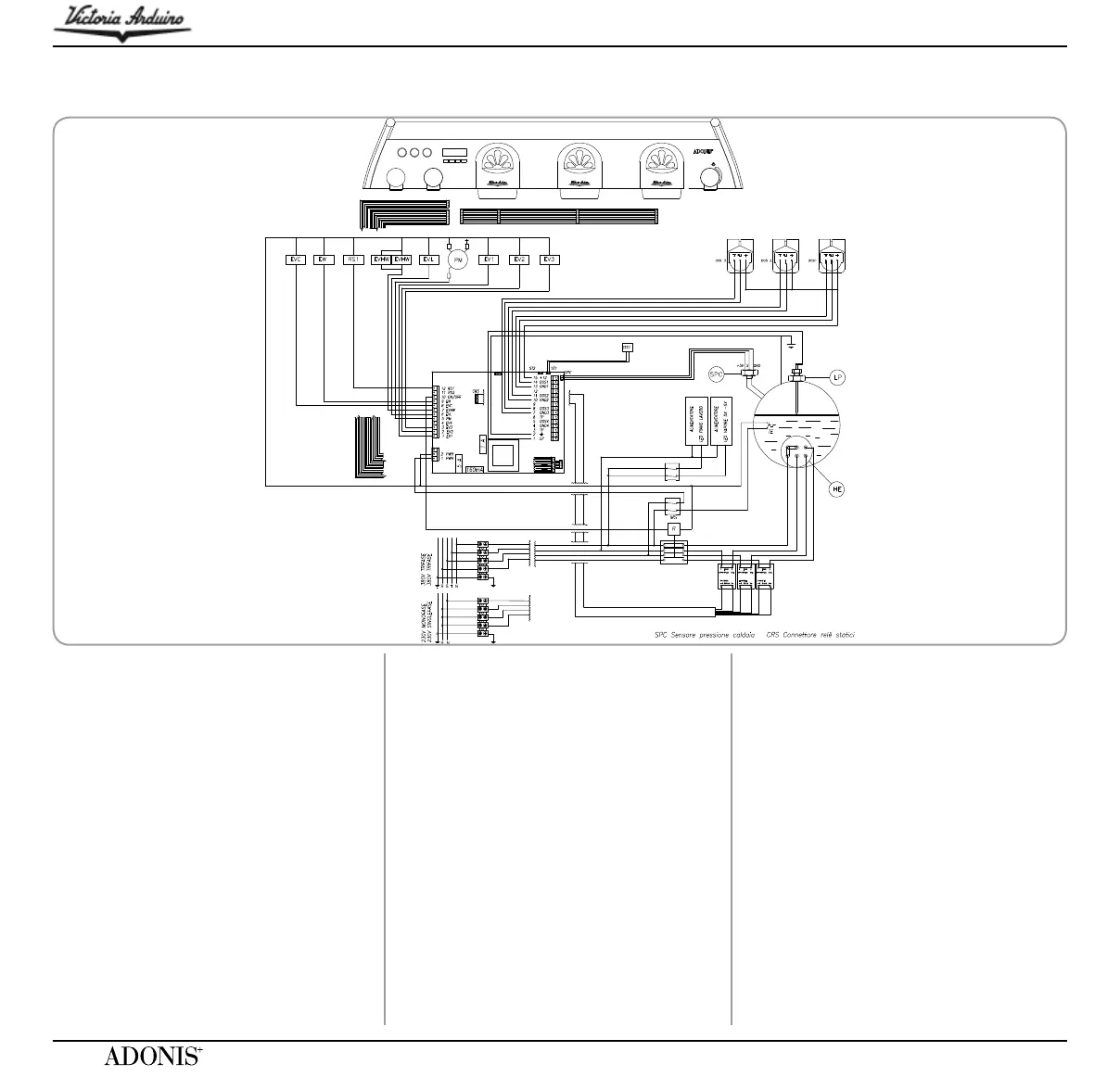

IMPIANTO ELETTRICO / ELECTRIC SYSTEM / INSTALLATION ÉLECTRIQUE
DIGIT 2-3 GR
LEGENDA / KEY / LÉGENDE
MS Interruttore / Switch / Interrupteur.
R Relè / Relay / Relais.
RS Relè statico / Relay / Relais.
PM Motore pompa / Pump Motor / Moteur
pompe.
HE Resistenza boiler / Boiler heater ele-
ment / Résistance chaudiere.
LP Sonda livello / Level probe / Sonde nive-
au.
EV1 Elettrovalvola gruppo 1 / Electrovalve
group 1 / Electrovanne groupe 1.
EV2 Elettrovalvola gruppo 2 / Electrovalve
group 2 / Electrovanne groupe 2.
TE Termostato / Thermostat / Thermostat.
EV3 Elettrovalvola gruppo 3 / Electrovalve
group 3 / Electrovanne groupe 3.
EV4 Elettrovalvola gruppo 4 / Electrovalve
group 4 / Electrovanne groupe 4.
EVHW Elettrovalvola miscelatore / Mixer elec-
trovalve / Electrovanne mélangeur.
EVL Elettrovalvola livello / Water level elec.
/ Electrovanne niveau.
STS1 Sonda temperatura scaldatazze 1 /
Cupwarmer temperature probe 1 /
Sonde température chauffe-tasses 1.
STS2 Sonda temperatura scaldatazze 2 /
Cupwarmer temperature probe 2 /
Sonde température chauffe-tasses 2.
SPC Sensore pressione caldaia / Sensor
pressure boiler / Capteur pression chau-
dière.
RS1 Resistenza scaldatazze 1 / Cupwarmer
heating element 1 / Résistance chauf-
fe-tasses 1.
RS2 Resistenza scaldatazze 2 / Cupwarmer
heating element 2 / Résistance chauf-
fe-tasses 2
CRS Connettore relè statici / Connector sta-
tic relays / Connecteur relais statiques.
EVS Elettrovalvola sfiato / Vacuum electro-
valve / Electrovanne vide.
ST1 Sonda Temperatura Scaldatazze 1 /
Cupwarmer Temperature probe 1 /
Température Sonde chauffe-T 1.
ST2 Sonda Temperatura Scaldatazze 2 /
Cupwarmer Temperature probe 2 /
Température Sonde chauffe-T 2.
