2. Mounting
Drill a hole in a mounting substrate as indicated in below figure.

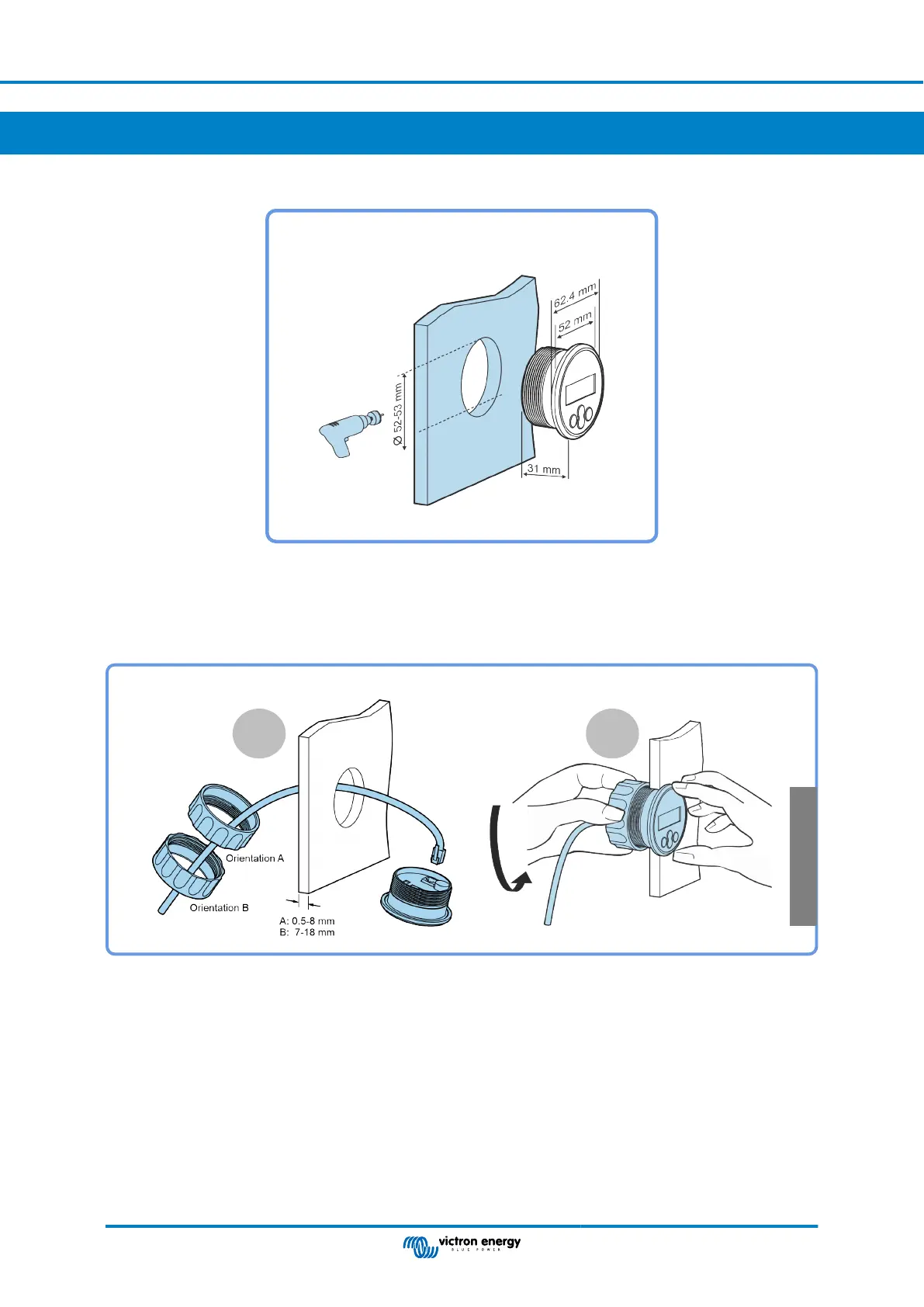

Mounting recess width and depth requirements
Mount the display:
Use option A if the mounting substrate is accessible from both sides
Use option B if the mounting substrate is accessible from the front.
Option A
1 2
Mounting option A
