4. Operation

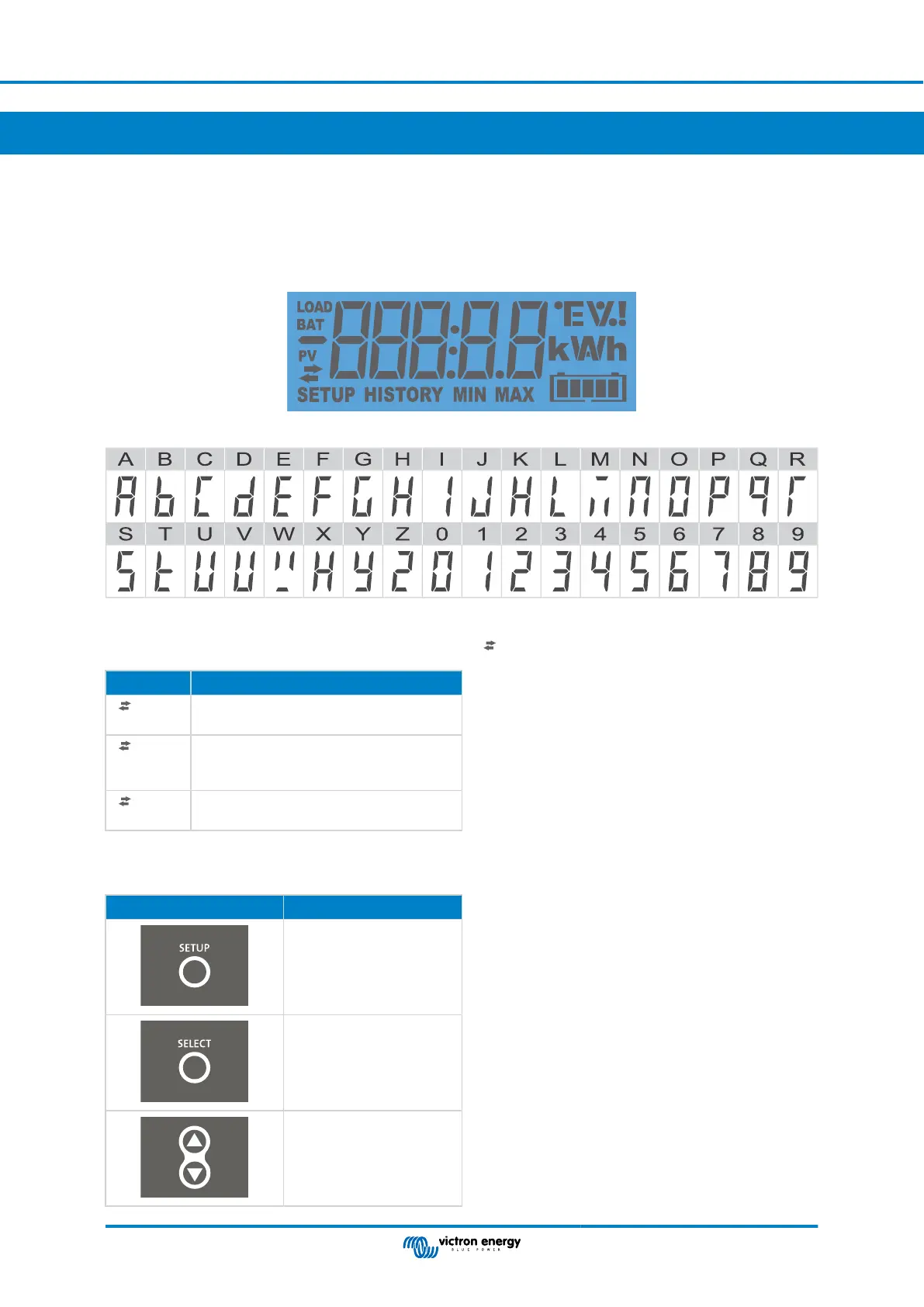

The LCD screen displays the following information:
• A number reading.
• The unit of the reading: V, A, W, kWh, h or !
• The type of reading: load, battery, PV, min, max or charge stage.
• Connection status indicator.
Full LCD readout
The digits used to represent letters and numbers
The connection status of the display is indicated by a "double arrow" symbol as indicated in below table.
Indicator connection status
On
There is a connection between the display
and the solar charger
Blinking
There was a connection with the solar
charger but the connection is lost. The last
know values will be shown.
Off
There has not been a connection with a
solar charger.
The buttons on the front of the display are used to navigate through the solar charger readings and are used when making solar
controller and display settings.They have the following functions:
Button Action
Cancel
or
Back
Select
or
Confirm
Go to next or previous item
or
Increase or decrease value
MPPT Control display manual
Page 7 Operation
