When editing a value, one can change its value by pressing the up and down buttons. When changing numeric values, pressing
SELECT will go to the next digit, until the last digit. In this case, pressing SELECT will save the setting. When editing non numeric
values, pressing SELECT will save the setting.

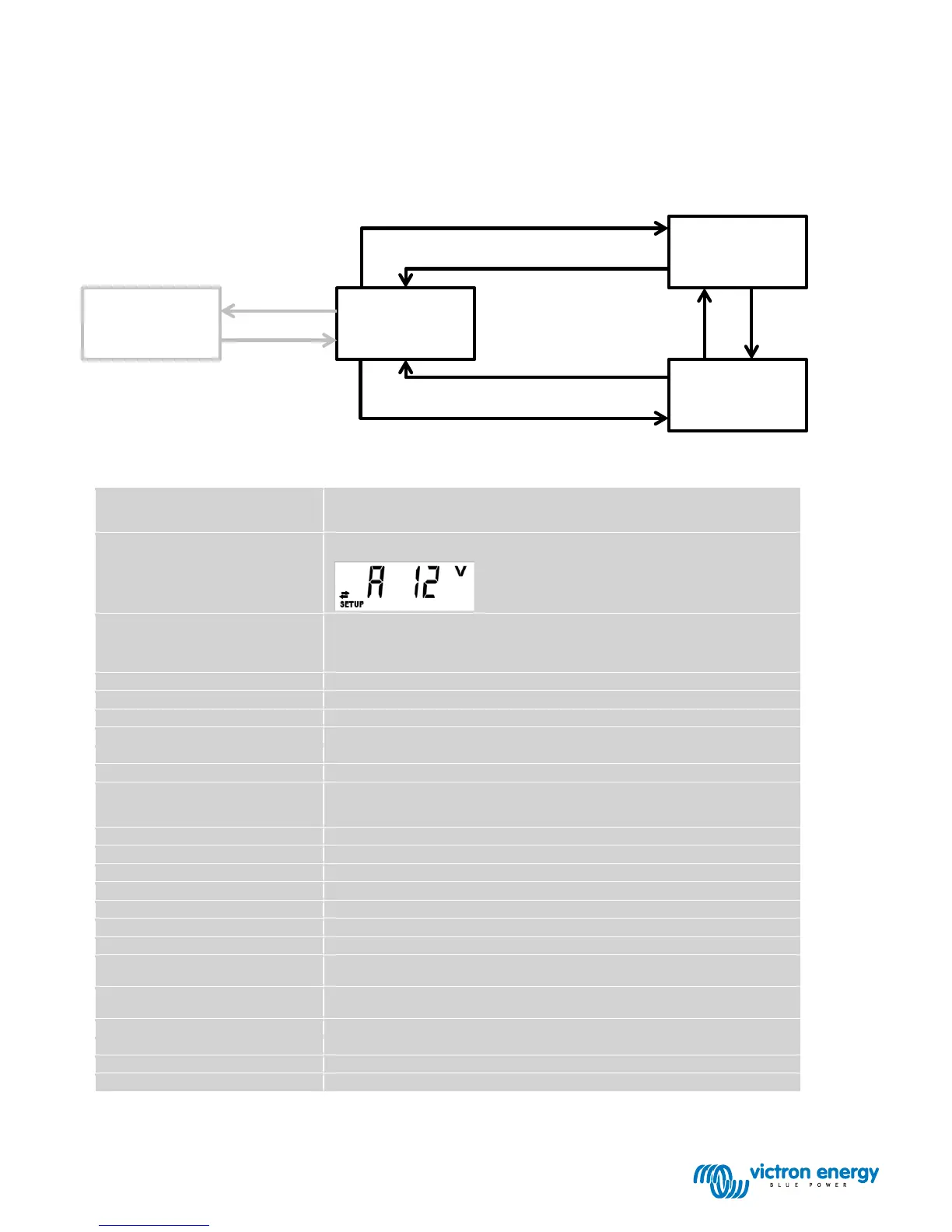

Pressing SETUP causes the MPPT Control to go back to the status menu topics when viewing topics or go back to the topics menu
when viewing values.
The settings are listed in the table below. See the manual of the MPPT for the exact meaning of the settings.
01 LOCK SETUP
When this is ON, other settings cannot be changed. When trying to change a setting
(except LOCK SETUP), the MPPT Control will show “LOCK” and show the value of that
setting.
02 BATTERY VOLTAGE
The battery voltage that the MPPT is working with. When the setting is AUTO, it will
show the A character in front of the voltage.
03 BATTERY TYPE
The battery type that the MPPT is working with. This can be set to FIXED or USER.
When set to fixed, the rotary switch on the MPPT determines the actual battery type.
When set to USER, all other charging related settings can be edited.
It will be automatically set to USER when editing a charger related setting.
04 MAXIMUM CURRENT
The maximum charging current
05 BULK TIME LIMIT
The maximum time continuously spent in bulk
06 ABSORPTION TIME LIMIT
The maximum time continuously spent in absorption
07 ABSORPTION VOLTAGE
Battery voltage at which the MPPT switches to the absorption phase
08 FLOAT VOLTAGE
Battery voltage at which the MPPT switches to the float phase
09 TEMP COMPENSATION
10 LOAD OUTPUT
Load output operating mode.
Possible values:
OFF, AUTO, ALT1, ALT2, ON, USER1, USER2
11 LOAD SWITCH HIGH
The high voltage level in case LOAD OUTPUT is set to USER1 or USER2
12 LOAD SWITCH LOW
The low voltage level in case LOAD OUTPUT is set to USER1 or USER2
13 CLEAR HISTORY
Clears the history of the MPPT
14 FACTORY DEFAULTS
Resets the MPPT back to factory defaults
15 BACKLIGHT INTENSITY
Sets the backlight intensity of the MPPT Control
16 BACKLIGHT ALWAYS ON
Determines whether the backlight of the MPPT Control is always on
17 SCROLL SPEED
Determines the scroll speed of the MPPT Control
18 SELECT TO EDIT
When set to OFF, the MPPT Control first shows the value of a setting and SELECT has
to be pressed to be able to edit the value
19 AUTO LOCK
When set to ON, LOCK SETUP will be automatically set to ON, 2 minutes after changing
a setting.
20 SOFTWARE VERSION
The software version of the MPPT Control
21 SERIAL NR
The serial number of the MPPT Control
21 MPPT SOFTWARE VERSION
The software version of the MPPT
21 MPPT SERIAL NR
The serial number of the MPPT
SELECT
Show value
Settings description
Change value
SETUP (2s)
SELECT
Status
SELECT
(LOCK SETUP = OFF)
SELECT
(LOCK SETUP = ON or SELECT TO EDIT = OFF)
SETUP
SETUP
(LOCK SETUP = OFF and SELECT TO EDIT = ON)
SELECT
