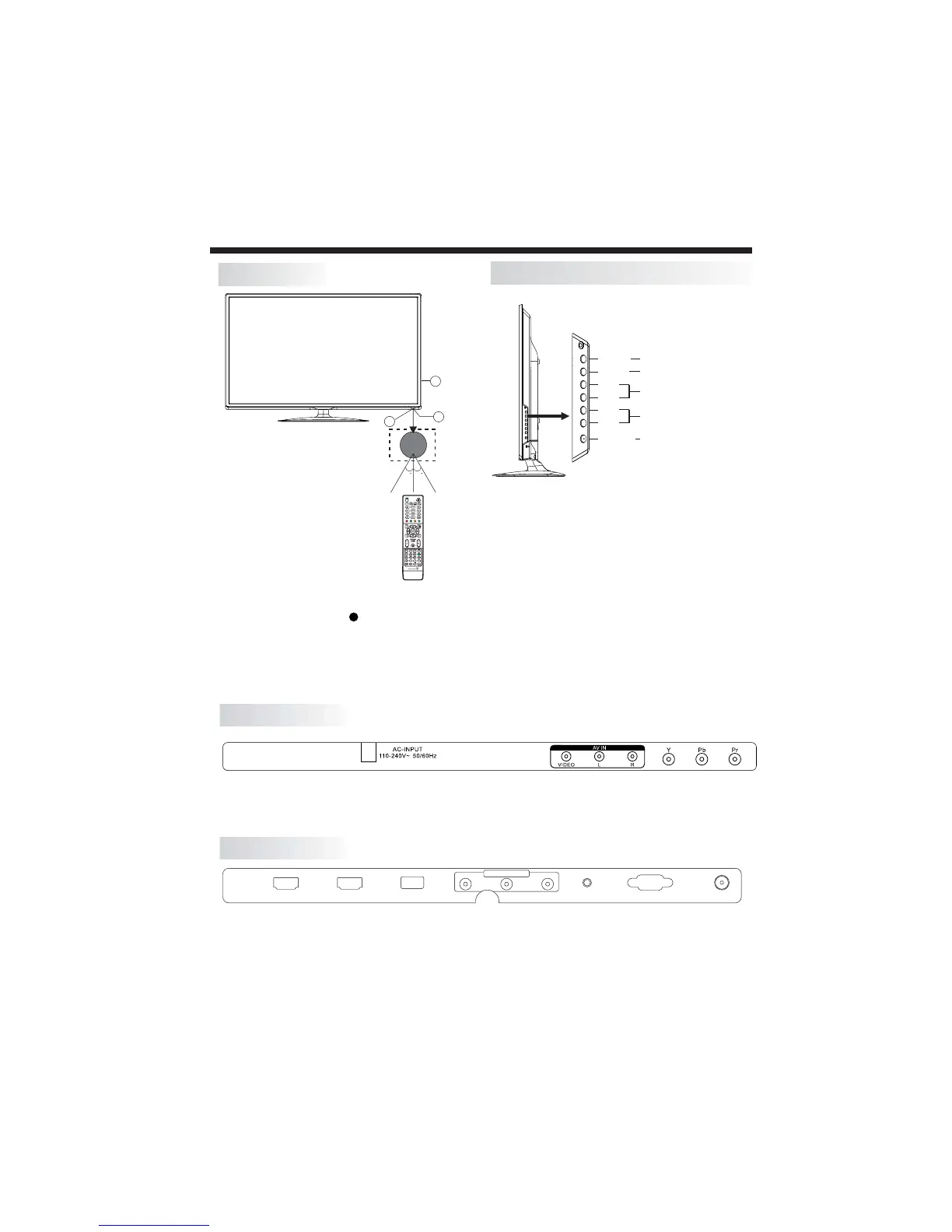

Rear AV Connectivities ( )40"/46"/50"/55"
All the terminals are(from left to right):
, VIDEO, AUDIO INPUTSAC POWER SOCKET , YPbPr.
Note: VIDEO and YPbPr share one audio channel.
Rear AV side Connectivities( )40"/46"/50"/55"
INSTALLATION
Front panel
Key Board Instructions ( )40"/46"/50"/55"
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3: Key board
1 SOURCE
2 MENU
3 CH+/CH-
4 VOL+/VOL-
5. STANDBY
“ ” “ ”
“ ” “ ”
“ ” “ ”
Display the input source menu.
Display main MENU.
In TV mode press CH+ or CH- to change
the channel up and down.
In MENU mode, press CH+ or CH- to select
items.
Adjust sound level.
In MENU mode, press VOL+ or VOL- to
adjust the item that you selected.
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
30 30
1
2
3
SOURCE
MENU
VOL+
VOL-
CH+
CH-
STANDBY
All the terminals are (from left to right):
HDMI2, HDMI1, USB, AV OUTPUT, PC AUDIO, VGA, RF.
Note: When HDMI port get DVI signal, the audio signal receives from the PC
Audio channel.
AV OUTPUT
HDMI2 HDMI1 USB R FVGAPC AUDIOVIDEO L R
-10-
