Videocon VKC19HH - AV Equipments for 40

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,
video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i,1080P.
INSTALLATION
This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVD
or other video equipment. Please refer to the owner's manual of the equipment to be connected
as well.

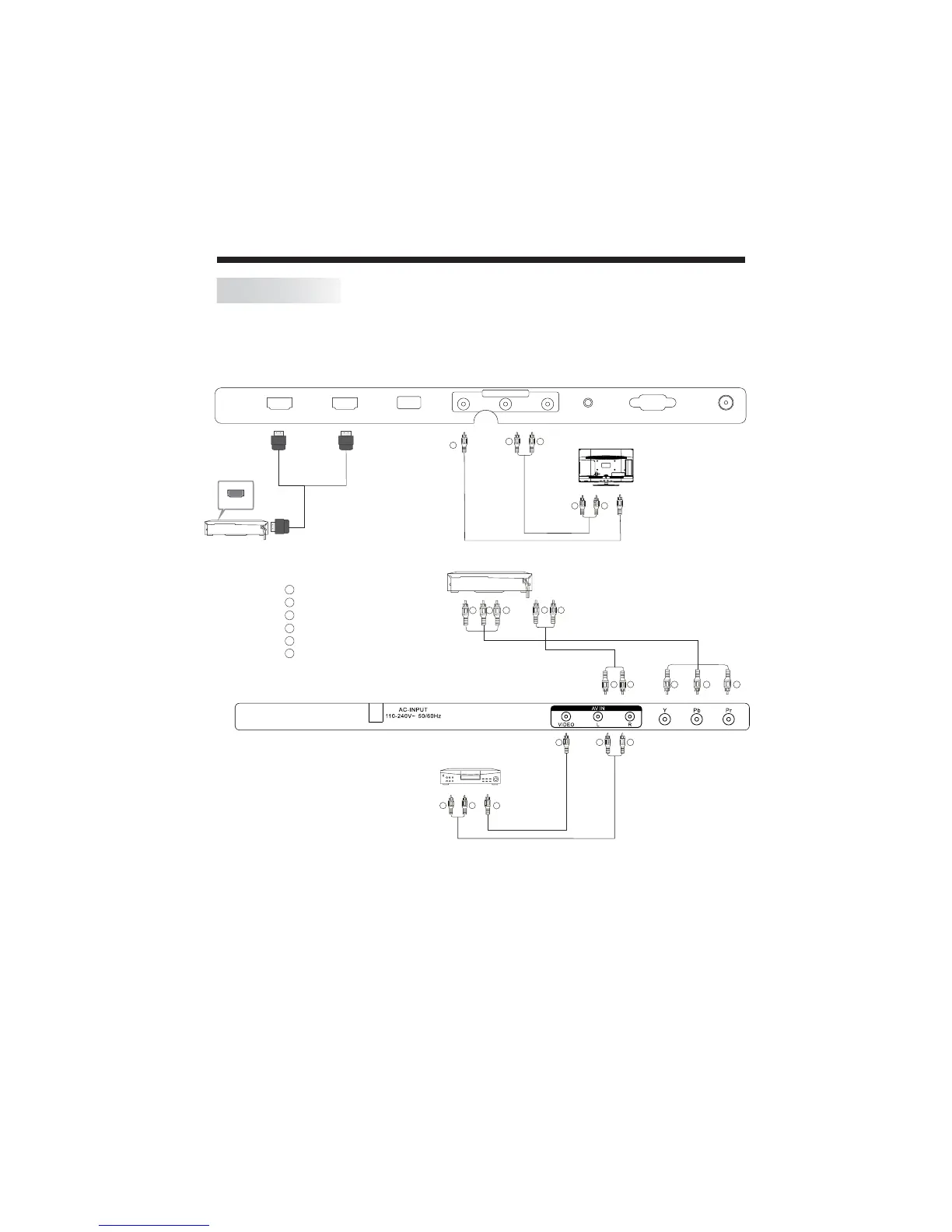

You can use the input terminals on TV set rear as follows.
AV Equipments for 40"/ 50"/55"46"/
-15-
Note:
1.VIDEO and YPbPr share one audio channel.
2.When HDMI port get DVI signal, the "PC Audio" channel is changed to receive the audio for HDMI port.
3.Sometimes it will not support in different device because the device supplys nonstandard signal.
4.When current source is TV, AV OUT signal is TV; when current source is AV, AV OUT signal is AV;
other sources have no AV OUT signal.
W R
G
B
R
VIDEO EQUIPMENT with YPbPr
W
R
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
Y
Y
Red (audio R)
White(audio L)
R
Red(Pr or Cr)
W
R
Blue(Pb or Cb)
B
Green(Y)
G
Yellow (video)
Y
W R
W R
TO AUDIO INPUTS
VIDEO EQUIPMENT
TO VIDEO
INPUTS
Y
G
B
R
W
R
HDMI
AV OUTPUT
HDMI2 HDMI1 USB R FVGAPC AUDIOVIDEO L R
