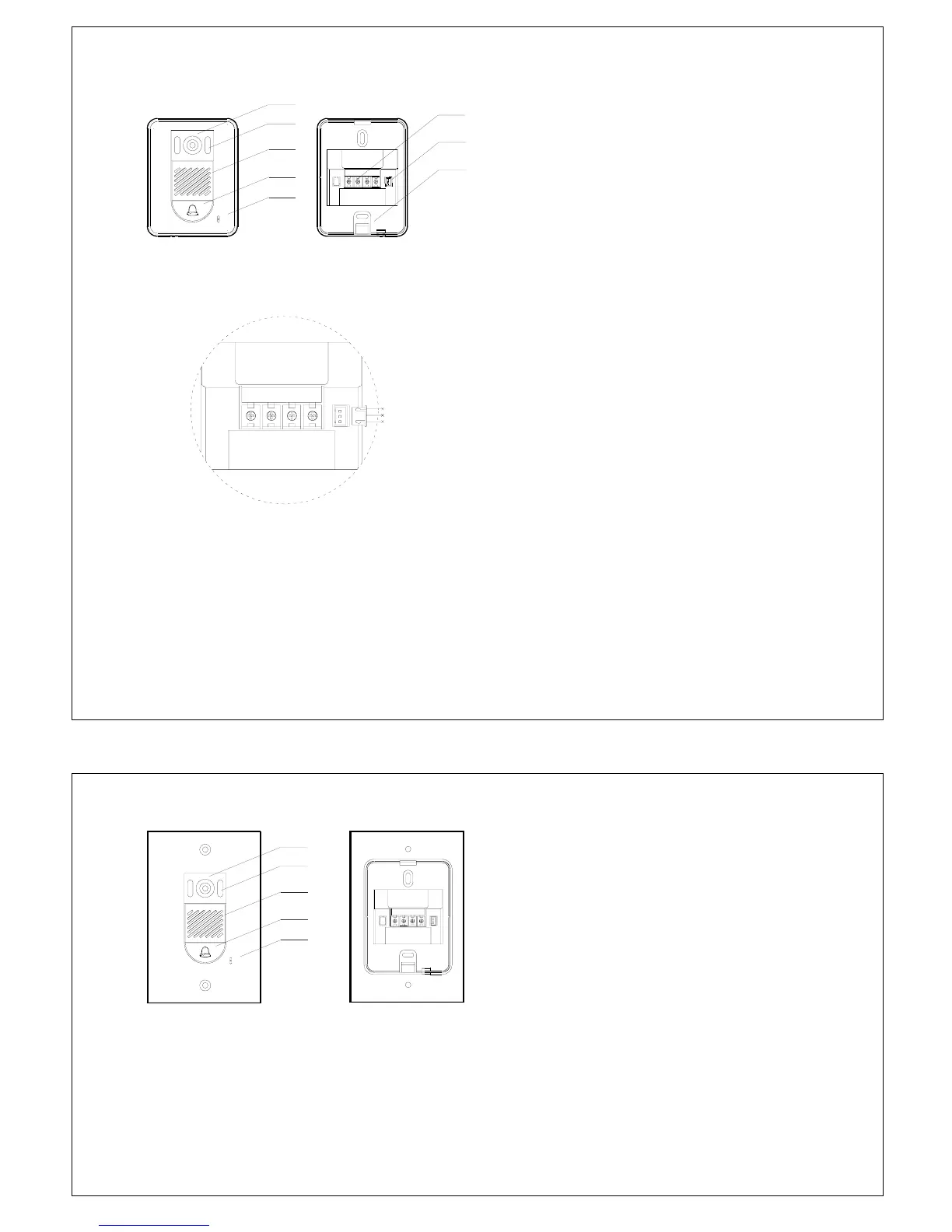

Descriptions of ABS plastic surface mount camera (Ref. VS-902C)
3
5
4
2
2W1R 3Y 4B LB
8
7
6
Dimension: 128(H)x98(W)x43(D)
1
Fig. 9
4B3Y2W1R LB
1
2
3
Common - Black
N.O. - Red
N.C. - White
1R +12V DC presents when outdoor station being called or supervised.
2W Ground (GND)
3Y Video signal (1Vp-p)
4B Audio and control signal
1. Camera
2. IR LEDs for night vision
3. Speaker
4. CALL button
5. Microphone
6. Cable terminal to monitor
7. Unlock port LB – The characteristic of this
port out is determined by JP-LK Jumper
on back of monitor (Refer to Page3 #15,
Page5 Note3)
 With Jumper : Dry contact output
from Camera’s LB terminal (factory
default)
 Without Jumper : 12VDC
Max.500mA output to door latch from
Camera’s LB terminal.
Pin#1 (Top - Red): Normally Open
Pin#2 (Middle-Black): Common
Pin#3 (Bottom-White ): Normally Close
8. Mounting bracket
Descriptions of Stainless Steel Flush mount camera (Ref. VS-902MC)
Overall Dimension (mm):
200(H)x130(W)x50(D)
Cut Out size without embedding box:
100(W) x 130(H) x 60(D)
Cut Out size with embedding box:
175(H)x100(W)x70(D)
LA 2W1R 3Y 4B LB
3
5
4
2
1
Fig. 10
1. Camera
2. IR LEDs for night vision
3. Speaker
4. Call button
5. Microphone
NOTE : This camera can be used with optional
embedding box (Ref.VS-902EB), Refer to Page2.
