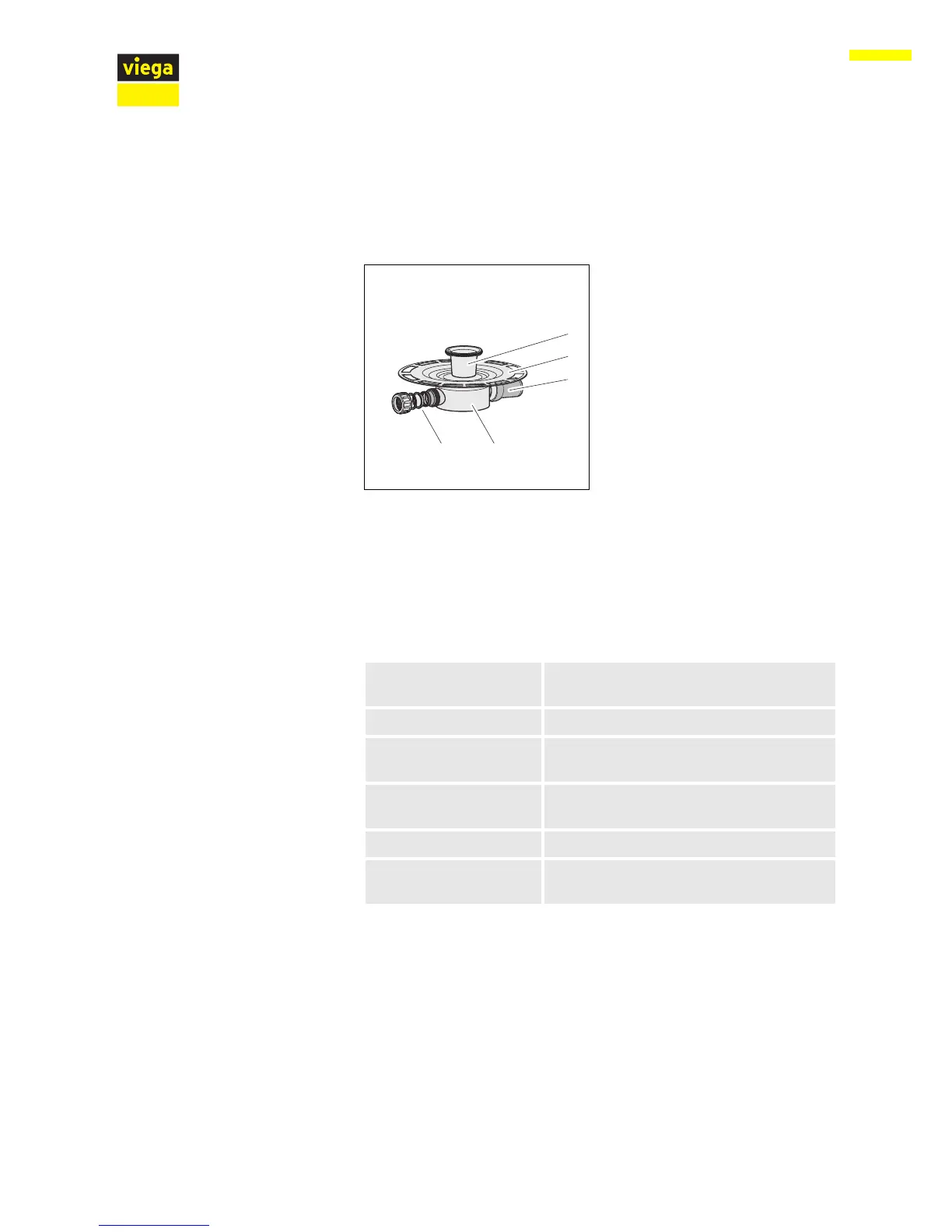

1 removable odour trap
2 flange for the application of the bonded sealing
3 horizontal drain socket (DN 50) with ball joint
4 Base unit
5 side inlet
2.3.2 Technical data
Nominal width [DN] (drain
socket)
50
Nominal width [DN] (inlet) 40
Drainage capacity
Ä
Chapter 2.2.3 „Drainage capacity“
on page 7
Dimensions and installa‐
tion height
Ä
Chapter 3.1.2 „Installation dimen‐
sions“ on page 15
Water seal level 30 mm
Load class corresponds with the load class of the top
used
2.4 Information for use
2.4.1 Installation variations
The mounting of the drain in a bare concrete floor is as follows:
Installing in a bare concrete floor
Product information
Advantix bath drain 8 from 21
