Viessmann BWC 201.B - Sheet 1: Compressor 400 V

7
2.2
B
A
C D
E
F G
0 1
2 3 4
5 6 7
8 9
0 1
2 3 4
5 6 7
8 9
viesmann
Compressor 400 V
Sheet 1
-X41
L1 L2 L3 N PE
L1 L2 L3 N PE
1
-PE1
U1 V1 W1 PE
-M1
1 2
3 4
5 6
1 2
3 4
5 6
17 18
17 18
17 18
x1
x2
x1
x2
x1
x2
R S T
U V W
A1 A2
Q1
95
96
F4
1
X11
2 3 7
L1 L2 L3
2.6
-N
-PE
-PE
2.5
2.6
4.5
M 3~
~
3/N/PE
400 V/50 Hz
2.7
11 14
-F7
2.7
H
Fig. 1
A
Compressor power supply
B
Mains terminals, compressor
C
Compressor contactor
D
Thermal relay, compressor
E
Full wave soft starter
F
Male jack, compressor
G
Compressor motor
H
Phase monitor

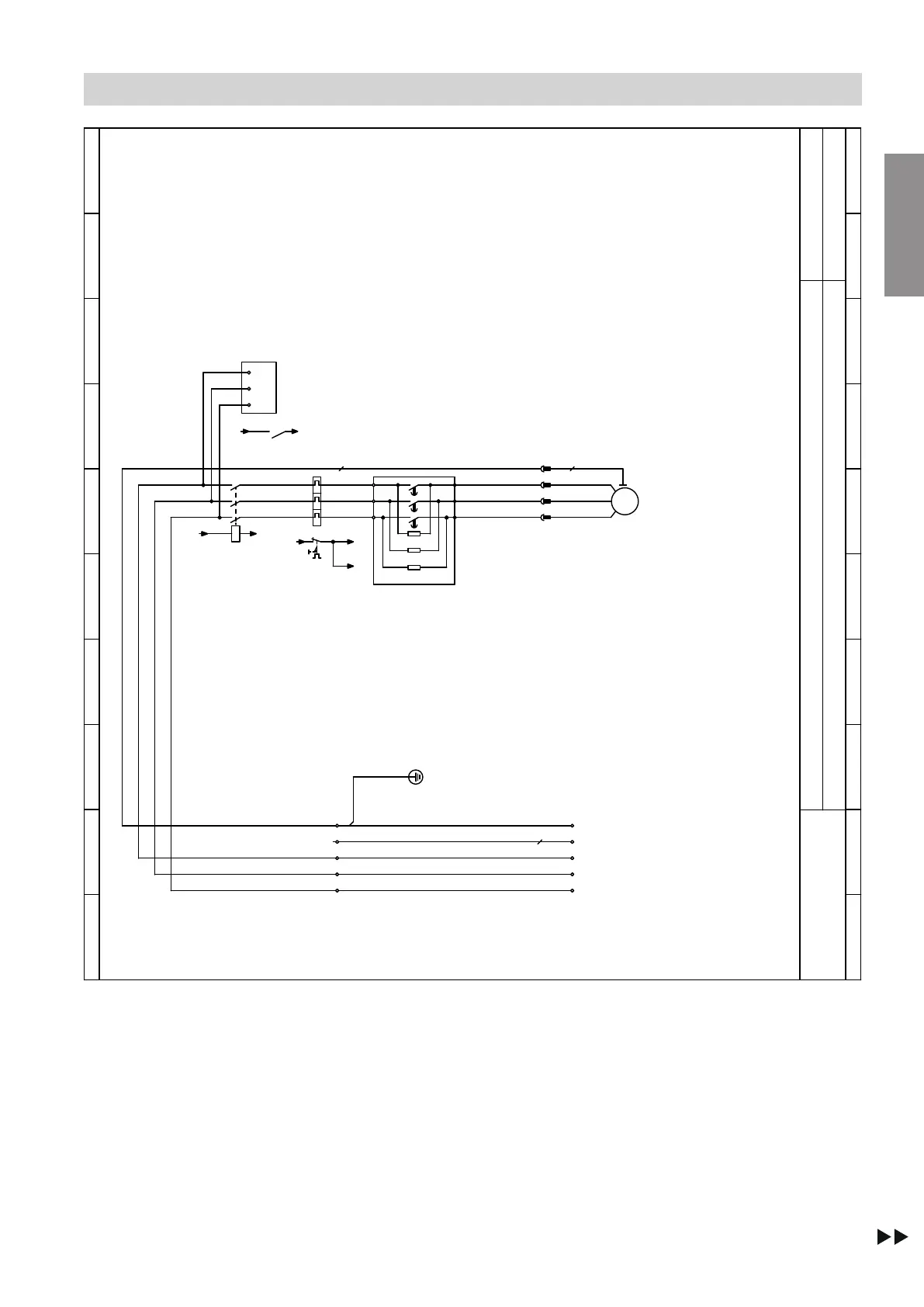

Connection and wiring diagram
Sheet 1: Compressor 400 V~
6152053
Service
