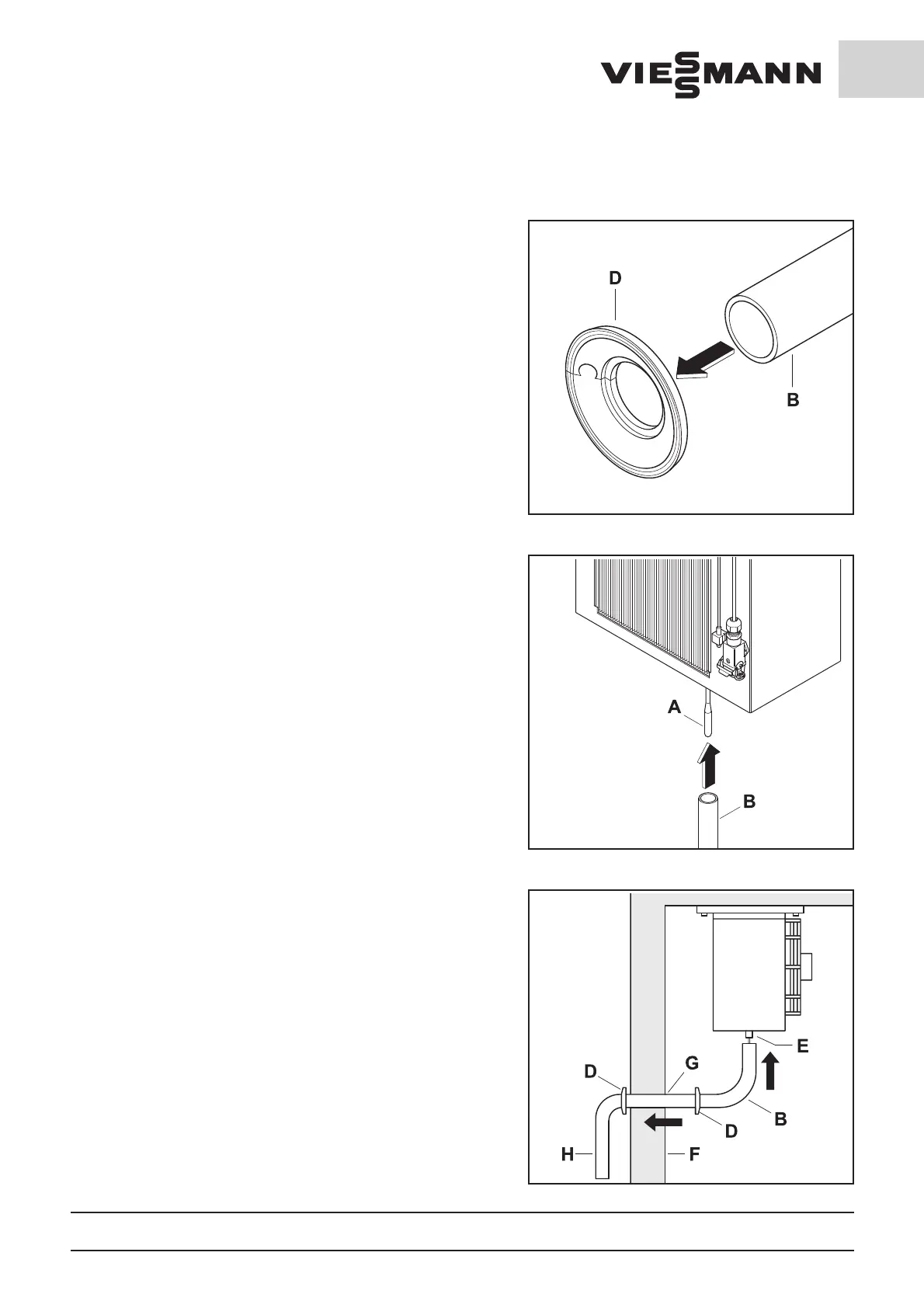

5.5 Installation of the defrost water drain hose
Slide the enclosed plastic collar (D) over the defrost water
drain hose (B).
Insert the defrost water drain heating (A) into the defrost
water drain hose (B), pulling the defrost water drain hose (B)
as straight as possible to ease the insertionprocess.
Guide the defrost water drain hose (B) through the bore
hole G, ø 31 mm) in the cell wall (F) from the inside.
Lubricant can be used if necessary.
Connect the defrost water drain hose (B) to the drain port
(E) on the evaporator condensate tray.
Cover the cut-out (G) for the defrost water drain hose (B)
with the plastic collar (D).
See the separate defrost water drain installation instructions
for all Split units.
